9-149
P1601
4. Wire harness continuity.
• Disconnect the sidestand relay coupler, ECU coupler and sidestand switch coupler.
• Open circuit check
Is the coupler condition normal?
YES
Go to step 4.
NO
a. Connect the coupler securely or replace the wire harness.
b. Push the ON/start switch, and then extend and retract the sidestand.
c. Check the condition of the DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to step 4.

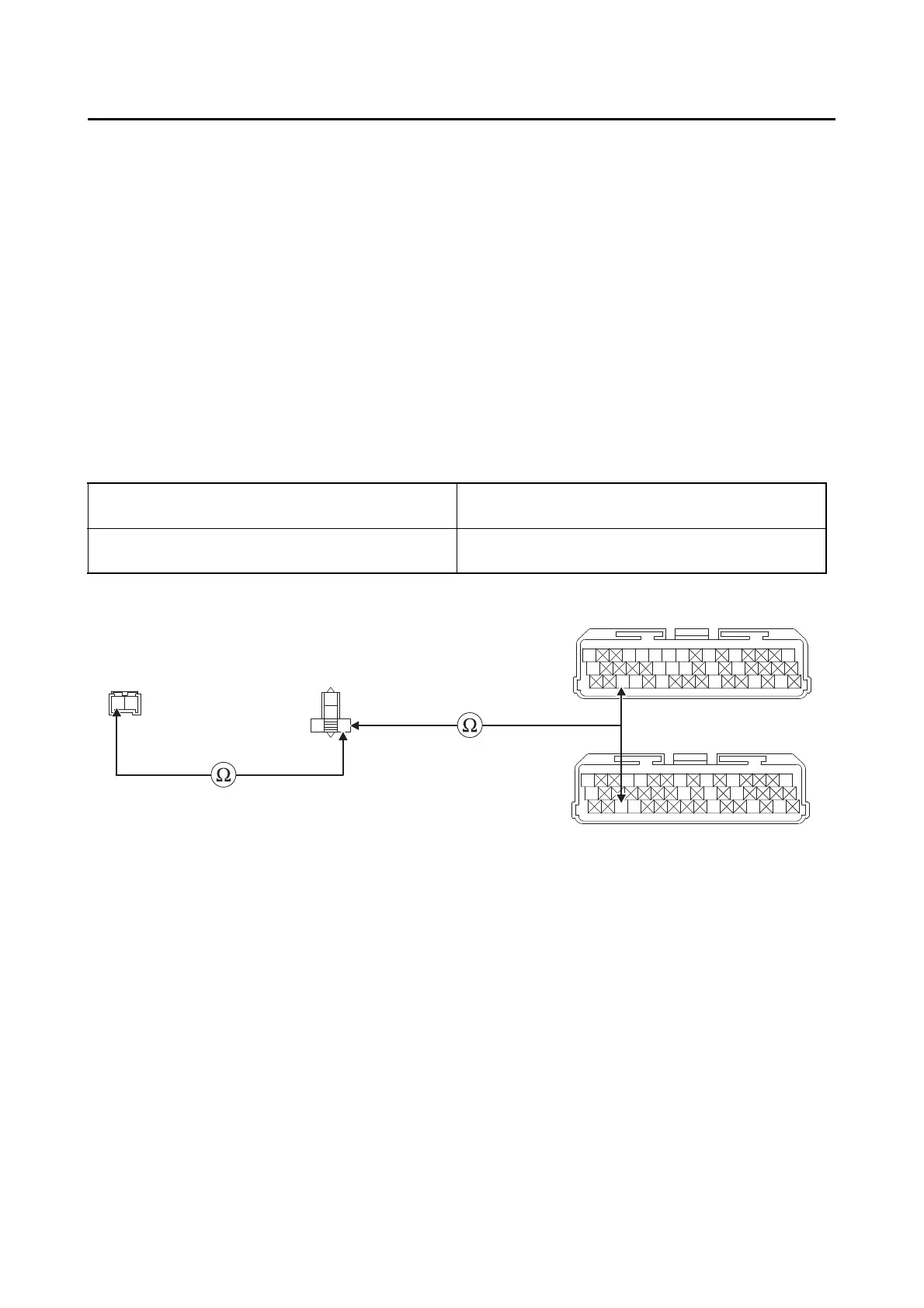

Between sidestand relay coupler “1” and ECU
coupler “2”
light green–light green
Between sidestand relay coupler “1” and side-
stand switch coupler “3”
light green–light green
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
B/Y
L
Y/G
P
W/G
Y/L
Lg/W
B/L
Br/W
Gy/G
Lg/L
W/G
W/Y
G/RL/W
Lg
Lg
B
G/R
G/Y
L/Y
Lg
2
*
13
2
**
*. XP560D
**. XP560E
Is resistance 0 ?
YES
Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Push the ON/start switch, and then extend and retract the sidestand.
c. Check the condition of the DTC using the malfunction mode of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to “Short circuit check”.
To Next Page
