9-180
24_ABS
EAS20710
24_ABS
EAS33374
TROUBLESHOOTING
Item
Brake light switch or tail/brake light
Procedure
1. Defective signaling system (tail/brake light or brake light switch)
Check the brake light switches.
Refer to “CHECKING THE SWITCHES” on page 8-91.
2. Defective coupler between the signaling system (tail/brake light or brake light switch) and the
hydraulic unit assembly
Check the coupler for any pins that may be pulled out.
Check the locking condition of the coupler.
TIP
Push the OFF/LOCK switch before disconnecting or connecting a coupler.
3. Wire harness continuity (XP560E)
Disconnect the handlebar switch coupler (right), handlebar switch coupler (left) and ABS ECU cou-
pler.
Open circuit check
Is check result OK?
YES
Go to step 2.
NO
Replace the brake light switches.
Is check result OK?
YES
[XP560E] Go to step 3.
[XP560D] Go to step 4.
NO
If there is a malfunction, repair it and connect the coupler securely.

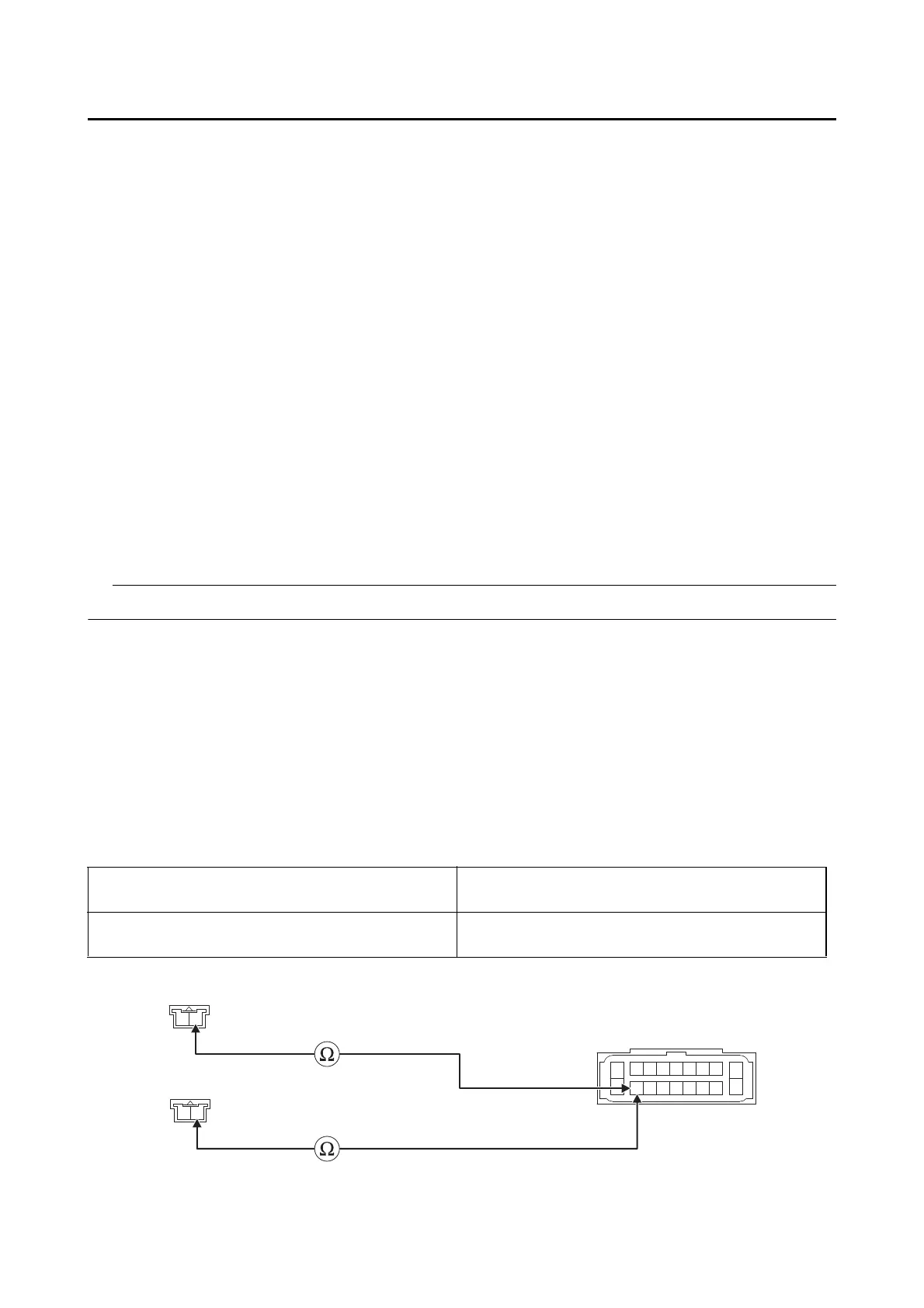

Between handlebar switch coupler (right) “1”
and ABS ECU coupler “3”
green/yellow–green/yellow
Between rear handlebar switch coupler (left) “2”
and ABS ECU coupler “3”
green/yellow–green/yellow
B
W/G
G/R
W/Y
WBBW
R/W
B/G
B/L
Lg/W
Lg/L
Br/W
LgLg
G/Y
R/L
Br
G/Y
Br
G/Y
3
1
2
