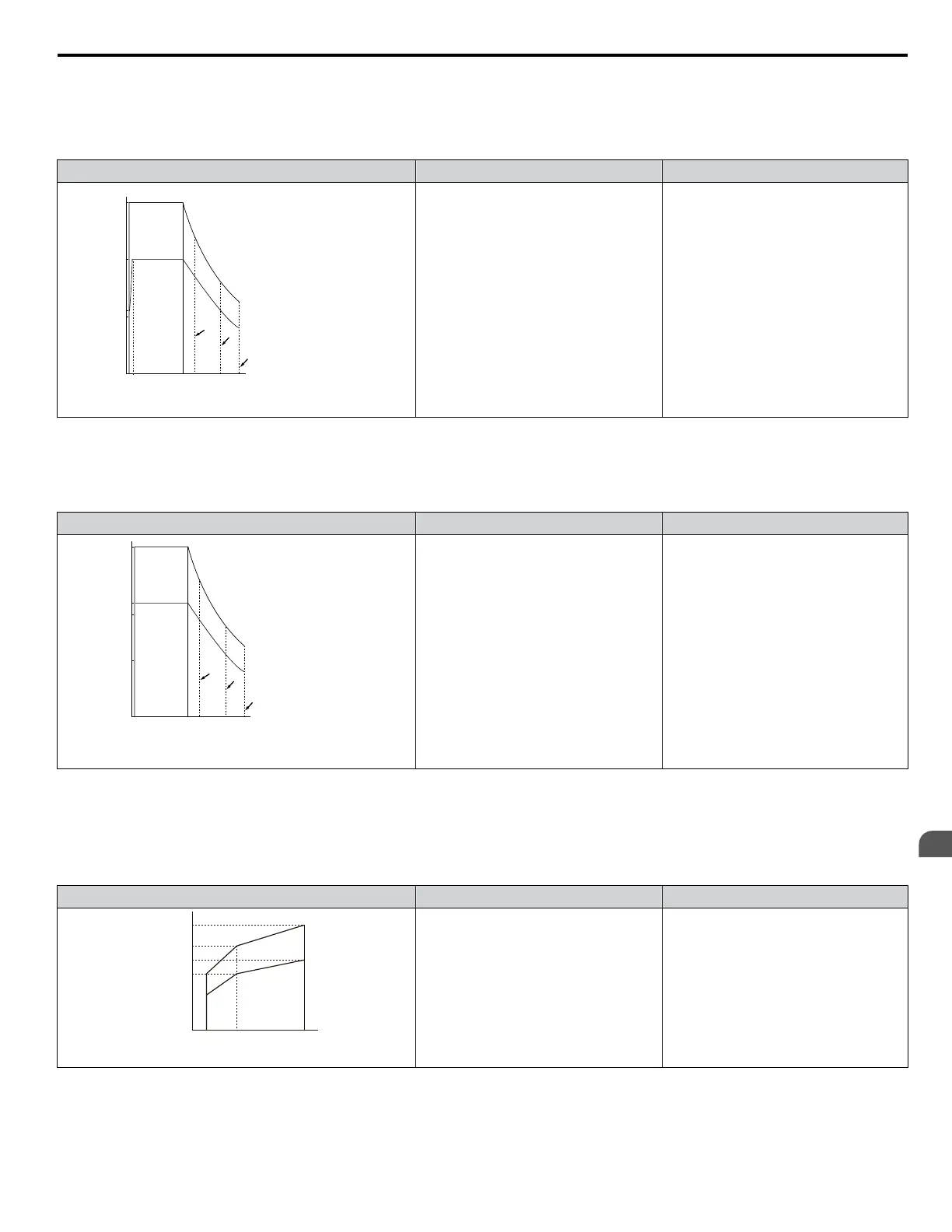

Setting 2: Drive dedicated motor (speed range for constant torque: 1:10)
Use this setting when operating a drive duty motor that allows constant torque in a speed range of 1:10. The drive will allow
the motor to run with 100% load from 10% up to 100% speed. Running at slower speeds with full load can trigger an overload
fault.
Overload Tolerance Cooling Ability Overload Characteristics
A: Max. speed for 200LJ and above
B: Max. speed for 160MJ to 180 LJ
C: Max. speed for 132MJ and below
Rated Speed=100% Speed
60 s
Continuous
A
B
C
Speed (%)
Torque (%)
100
150
1
10
100120
167 200
55
50
0
Motor is designed to effectively cool
itself even at low speeds.
Continuous operation with 100% load
from 6 Hz to E1-06, Motor Base
Frequency.
Setting 3: Vector motor (speed range for constant torque: 1:100)
Use this setting when operating a drive-dedicated motor that allows constant torque in a speed range of 1:100. This motor type
is allowed to run with 100% load from 1% up to 100% speed. Running slower speeds with full load can trigger an overload
fault.
Overload Tolerance Cooling Ability Overload Characteristics
A: Max. speed for 200LJ and above
B: Max. speed for 160MJ to 180 LJ
C: Max. speed for 132MJ and below
150
100
90
50
0
1
100
120
167
200
A
B
C
Continuous
Speed (%)
Rated Speed=100% Speed
Torque (%)
60 s
Motor is designed to effectively cool
itself at speeds near 0.6 Hz.
Continuous operation with 100% load
from 0.6 Hz to E1-06, Motor Base
Frequency.
Setting 4: PM derated torque motor
Note:
PM motor control modes are not available on 600 V class drives, CIMR-Ao5oooooooo.
Use this setting when operating a PM motor. PM motors for derated torque have a self-cooling design and the overload tolerance
drops as the motor slows. Electronic thermal overload is triggered in accordance with the motor overload characteristics,
providing overheat protection across the entire speed range.
Overload Tolerance Cooling Ability Overload Characteristics
Continuous
60 s
Motor Speed (%)
Torque (%)
150
10 33 100
120
100
80
50
0.0
Motor is designed to produce 100%
torque at base speed. Built with
effective cooling capabilities.
Reaching 100% when operating at
below the base frequency causes a
motor overload fault (oL1). The drive
fault output closes and the motor coasts
to stop.
Setting 5: Constant torque PM motors (constant torque range of 1:500)
Note:
PM motor control modes are not available on 600 V class drives, CIMR-Ao5oooooooo.
Sets necessary protection characteristics when driving a PM with constant torque. These motors allow for a speed control from
0.2% to 100% when operating with 100% load. Slower speeds with 100% load will trigger overload.
5.8 L: Protection Functions
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
239
