3.5 Terminal Cover
Follow the procedure below to remove the terminal cover for wiring and to reattach the terminal cover after wiring is complete.
u
IP20/NEMA Type 1
n
Removing the Terminal Cover
1.
Loosen the terminal cover screw.

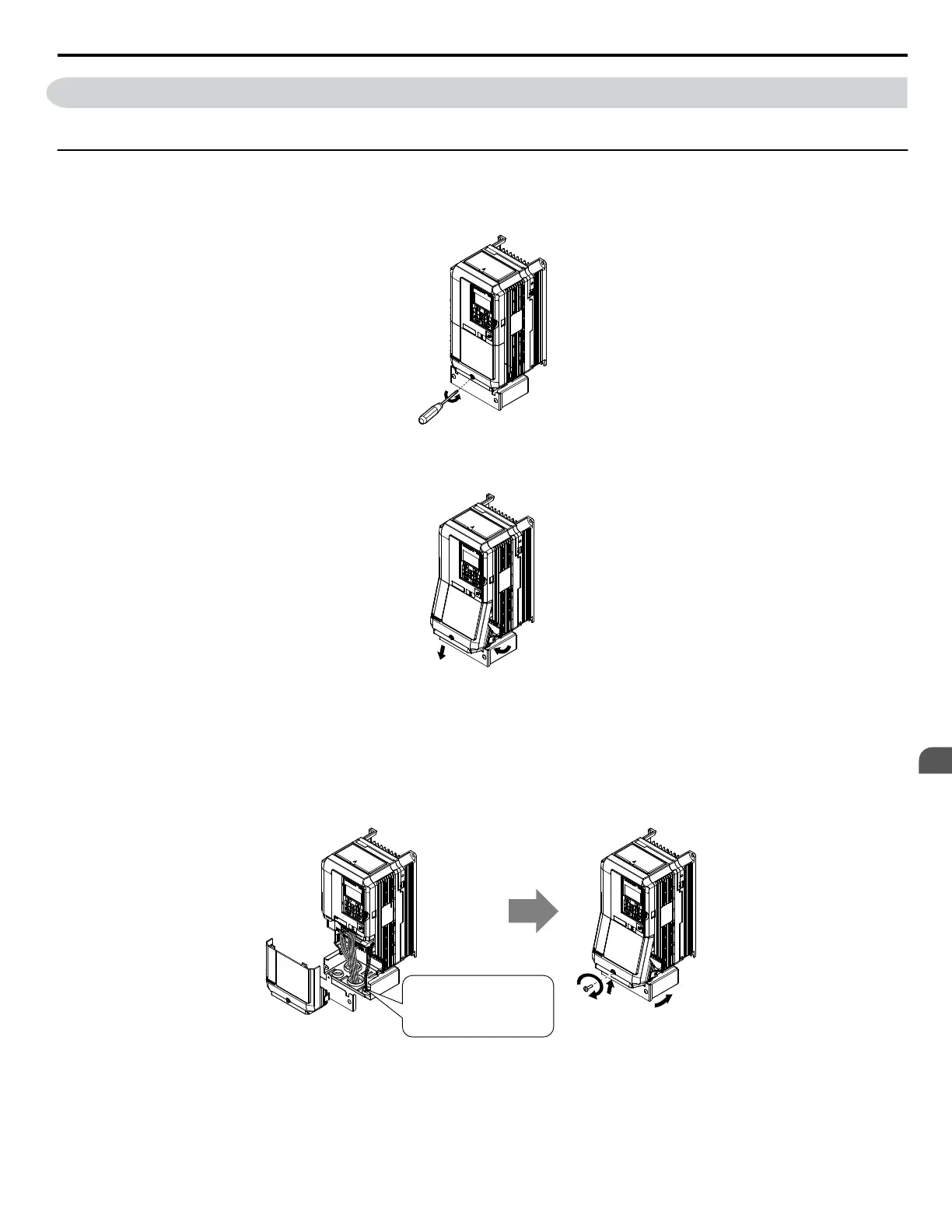

Figure 3.4 Removing the Terminal Cover on an IP20/NEMA Type 1 Drive
2.
Push in on the tab located on the bottom of the terminal cover and gently pull forward to remove the terminal cover.
Figure 3.5 Removing the Terminal Cover on an IP20/NEMA Type 1 Drive
n
Reattaching the Terminal Cover
Power lines and signal wiring should pass through the opening provided. Refer to Wiring the Main Circuit Terminal on
page 60 and Wiring the Control Circuit Terminal on page 65 for details on wiring.
Reattach the terminal cover after completing the wiring to the drive and other devices.
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
Power lines and signal wiring
exit through the opening provided.
Figure 3.6 Reattaching the Terminal Cover on an IP20/NEMA Type 1 Drive
3.5 Terminal Cover
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
55
3
Electrical Installation
