Front Views
I
K
J
L
M
A
H
G
F
E
B
C
D
CIMR-Ao5A0011F
A – Terminal board connector
B – DIP switch S1 (Refer to Terminal
A2 Input Signal Selection on page
70)
C – DIP switch S2 (Refer to MEMOBUS/
Modbus Termination on page 71)
D – Sink/source jumper S3 (Refer to
Sinking/Sourcing Mode Switch for
Digital Inputs on page 68)
E – Ground terminal
F – Terminal board (Refer to Control
Circuit Wiring on page 61)
G – Main circuit terminal (Refer to
Wiring the Main Circuit Terminal
on page 60)
H – Protective cover to prevent
miswiring
I – Option card connector (CN5-C)
J – Option card connector (CN5-B)
K – Option card connector (CN5-A)
L – Jumper S5 (Refer to Terminal AM/
FM Signal Selection on page 71)
M – DIP switch S4 (Refer to Terminal
A3 Analog/PTC Input Selection on
page 70)

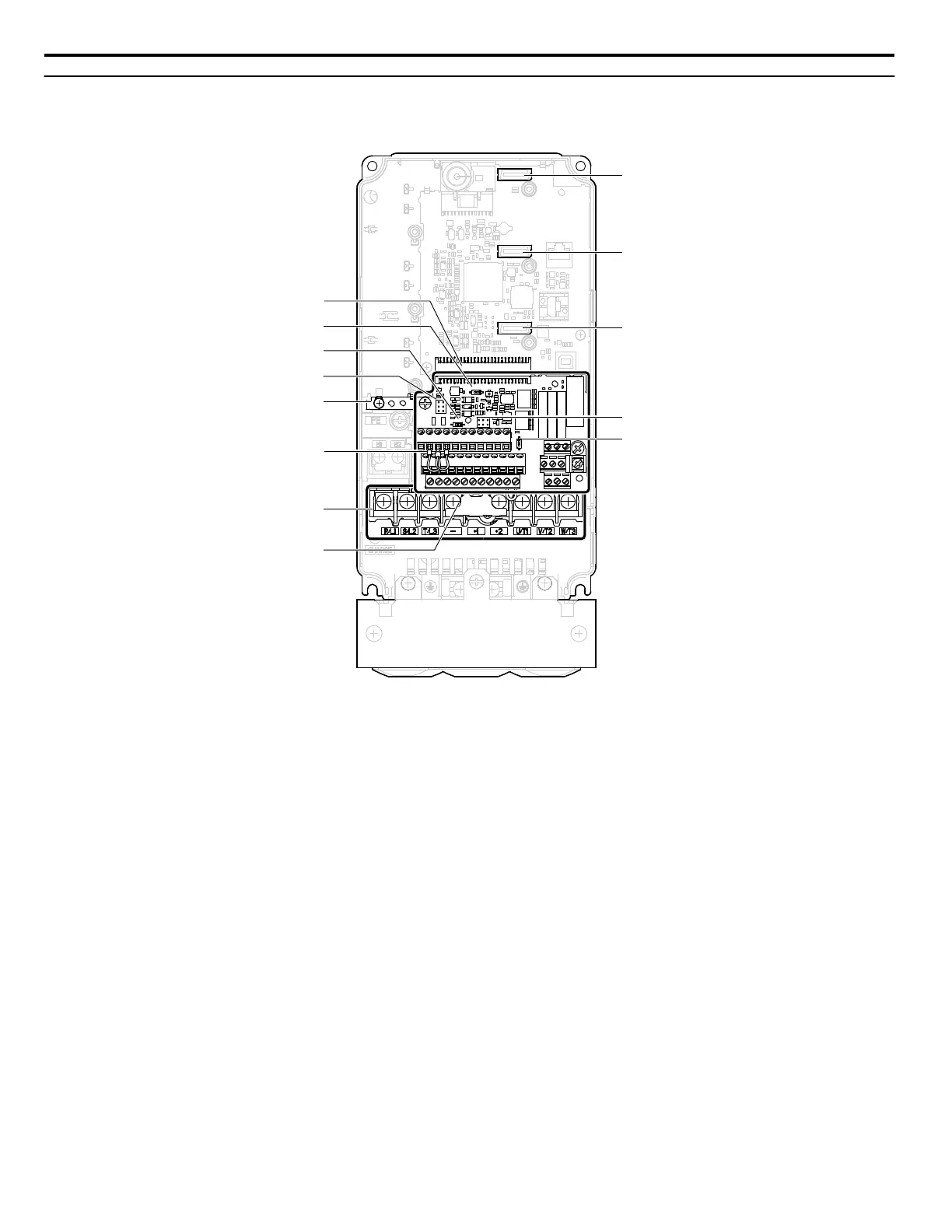

Figure 1.3 Front View of Drives
1.5 Component Names
36
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
