4.3 The Drive and Programming Modes
The drive has a Drive Mode to operate the motor and a Programming Mode to edit parameter settings.
Drive Mode: In Drive Mode the user can operate the motor and observe U Monitor parameters. Parameter settings cannot be
edited or changed when in Drive Mode.
Programming Mode: In Programming Mode the user can edit and verify parameter settings and perform Auto-Tuning. When
the drive is in Programming Mode it will not accept a Run command unless b1-08 is set to 1.
Note: 1. If b1-08 is set to 0, the drive will only accept a Run command in Drive Mode. After editing parameters, the user must exit the Programming
Mode and enter Drive Mode before operating the motor.
2. Set b1-08 to 1 to allow motor operation from the drive while in Programming Mode.
u

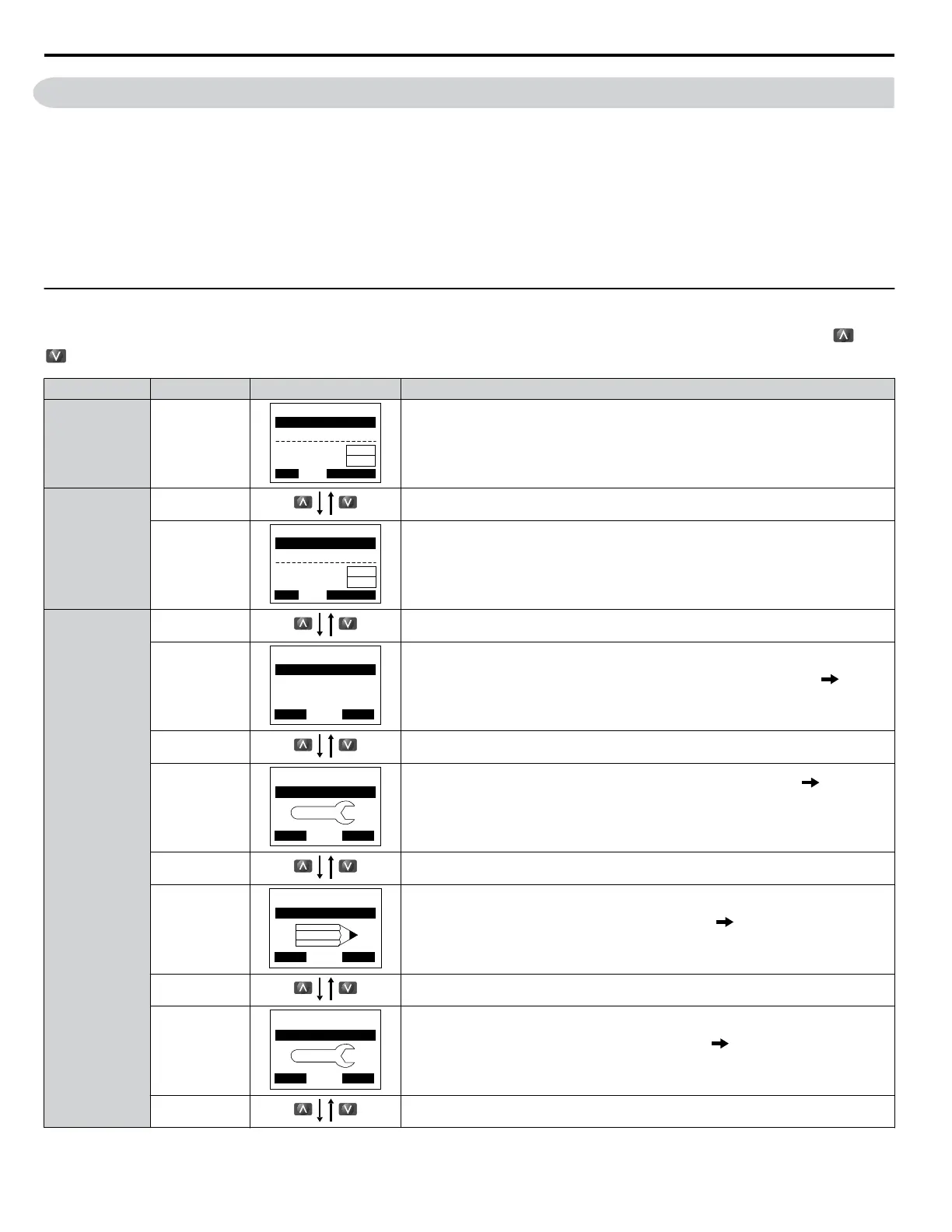

Navigating the Drive and Programming Modes
The drive is set to operate in Drive Mode when it is first powered up. Switch between display screens by using the and
keys.
Mode Contents Operator Display Description
Power Up
Frequency
Reference
(default)
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
This display screen allows the user to monitor and change the frequency reference while
the drive is running. Refer to The Drive and Programming Modes on page 84.
Note: The user can select the data displayed when the drive is first powered up with
parameter o1-02.
Drive Mode
Monitor Display
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
Monitor Menu
Rdy
JOG FWD FWD/REV
LSEQ
LREF
Lists the monitor parameters (Uo-oo parameters) available in the drive.
Press the Enter Key and then use the Up, Down, ESC, and Reset keys to navigate through
the drive monitors.
Programming
Mode
Verify Menu
- MODE - PRG
Modified Consts
HELP DATA
FWD
Modified
X Parameters
Lists all parameters that have been edited or changed from default settings. Refer to
Verifying Parameter Changes: Verify Menu on page 87.
Setup Group
HELP
- MODE - PRG
Quick Setting
DATA
FWD
A select list of parameters necessary to get the drive operating quickly. Refer to
Using the Setup Group on page 88.
Note: Parameters listed in the Setup Group differ depending the Application Preset
in parameter A1-06. Refer to Application Selection on page 97.
Parameter
Setting Mode
HELP
- MODE - PRG
DATA
Programming
FWD
Allows the user to access and edit all parameter settings. Refer to Parameter List on
page 379.
Auto-Tuning
Mode
HELP
- MODE - PRG Rdy
Auto-Tuning
DATA
AUTO
FWD
Motor parameters are calculated and set automatically. Refer to Auto-Tuning on
page 100.
4.3 The Drive and Programming Modes
84
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
