100

L8-35=2: NEMA Type 1 Enclosure

L8-35=3: External Heatsink lnstallation or

Finless Drive with C3 filter

L8-35=0: IP00 Enclosure

-10

Drive Rating

(%)

L8-12

(Ambient temp: °C)

L8-35=1: Side-by-Side Mounting

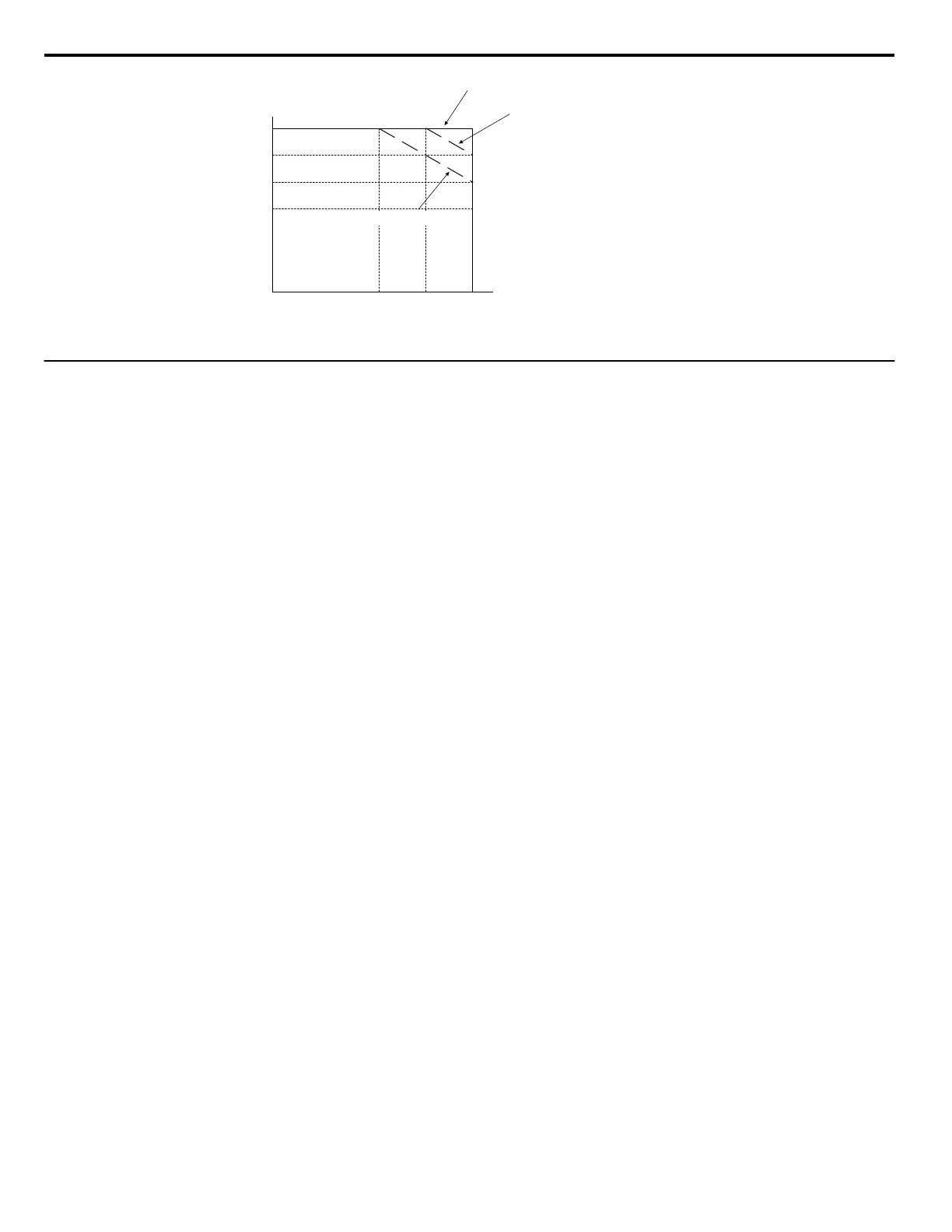

Figure A.2 Ambient Temperature and Installation Method Derating

Altitude Derating

The drive standard ratings are valid for an installation altitude up to 1000 m. If the altitude exceeds 1000 m, the drive rated

voltage and the rated output current must be derated for 1% per 100 m. The maximum altitude is 3000 m.

A.5 Drive Derating Data

378

YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
