1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
u
Nameplate
PRG : 504X
IND.CONT.EQ.
7J48 B
CIMR-AU5A0009FAA
YASKAWA ELECTRIC CORPORATION
MADE IN JAPAN
:
: AC3PH 500-600V 50/60Hz 12.0A/8.3A
: AC3PH 0-600V 0-400Hz 9.0A/6.3A
: 3.7kg
:
:
: E131457 IP20
PASS
MODEL
INPUT
OUTPUT
MASS
O/N
S/N
FILE NO
TYPE 1 ENCLOSURE
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
Enclosure type
REV : A
Normal Duty Amps / Heavy Duty Amps

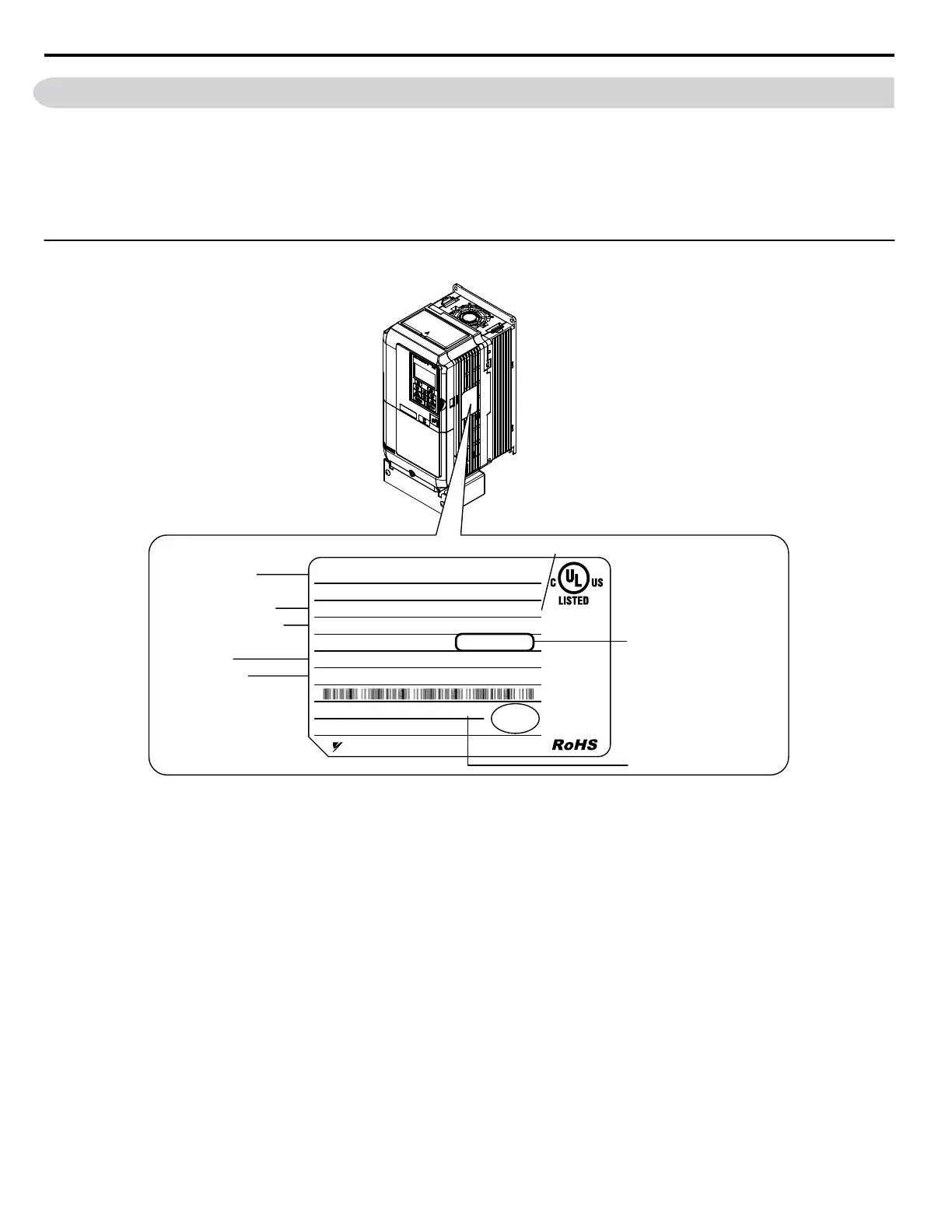

Figure 1.1 Nameplate Information Example
1.3 Model Number and Nameplate Check
32
