n
RS-422 Interface
R–
R+
S–
S+
IG
PLC
Drive
Drive
Drive
S–
S+
R–
R+
IG
S–
S+
R–
R+
IG
S–
S+
R–
R+
IG
S2
OFF
S2
OFF
S2
ON

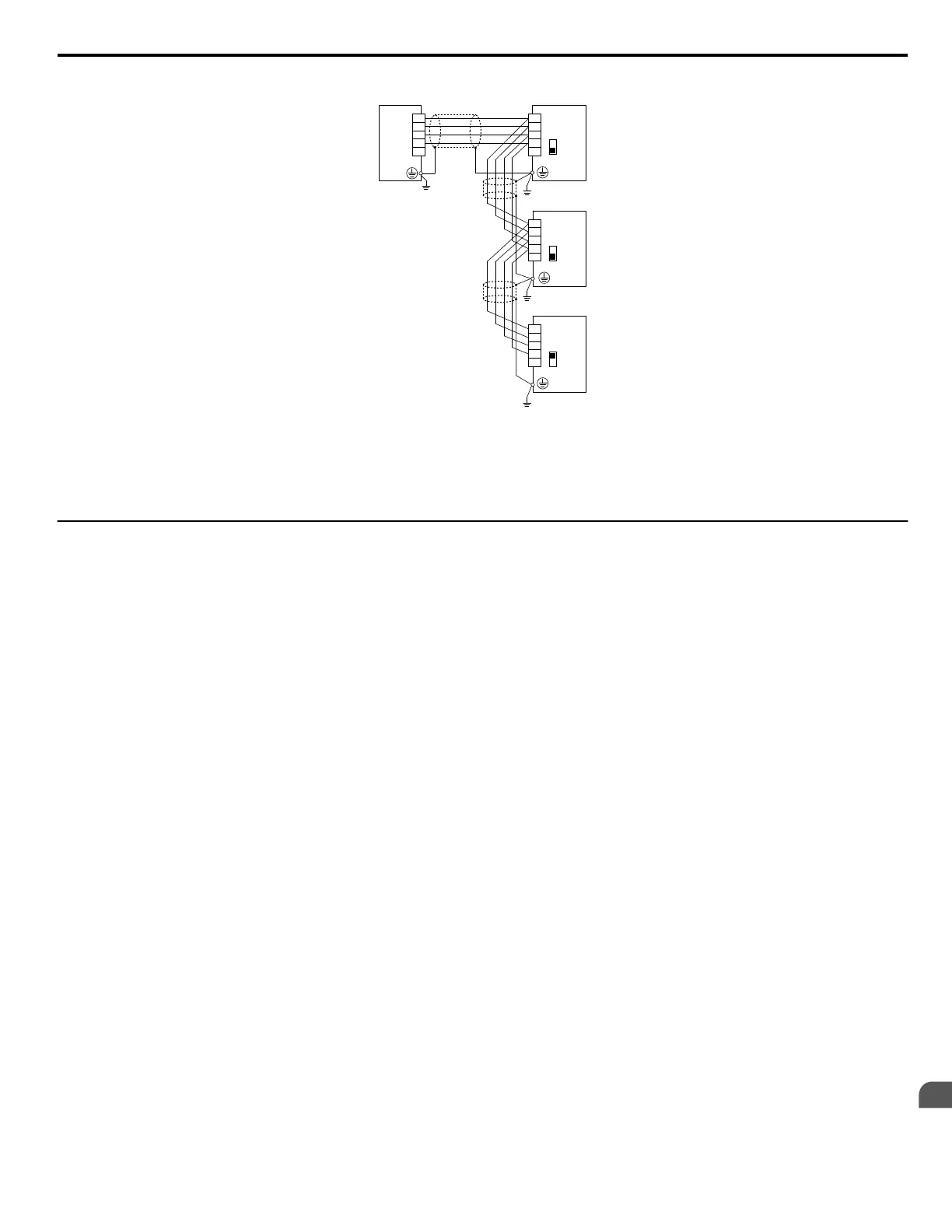

Figure C.4 RS-422 Interface
Note: 1. Turn on the DIP switch on the drive that is located at the end of the network. All other slave devices must have this DIP switch set to the
OFF position.
2. Set H5-07 to “0” when using the RS-485 interface.
u
Network Termination
The two ends of the MEMOBUS/Modbus network line have to be terminated. The drive has a built in termination resistor that
can be enabled or disabled using DIP switch S2. If a drive is located at the end of a network line, enable the termination resistor
by setting DIP switch S2 to the ON position. Disable the termination resistor on all slaves that are not located at the network
line end.
C.3 Connecting to a Network
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
467
C
MEMOBUS/Modbus Communications
