• If
the motor cables have been replaced with cables more than 50 m long after Auto-Tuning has already been performed, use
Stationary Auto-Tuning for line-to-line resistance.
n
Notes on Inertia Tuning and ASR Gain Auto-Tuning
WARNING! Electrical Shock Hazard. When executing Inertia Tuning or ASR Gain Auto-Tuning, voltage is applied to the motor even before
it rotates. Do not touch the motor until Auto-Tuning is completed. Failure to comply may result in injury or death from electrical shock.
• Perform both tuning methods with the machine connected to the motor, but without the load applied.
• The motor will rotate during the Auto-Tuning process. Make sure the areas around the motor and connected machinery are
clear.
• The drive will let the system rotate at a certain speed while superimposing a sine wave test signal. Make sure this tuning
process does not cause any problem or malfunction in the machine before using it.
• Ensure the motor-mounted brake is fully released if installed.
• Connected machinery should be allowed to rotate the motor.
u

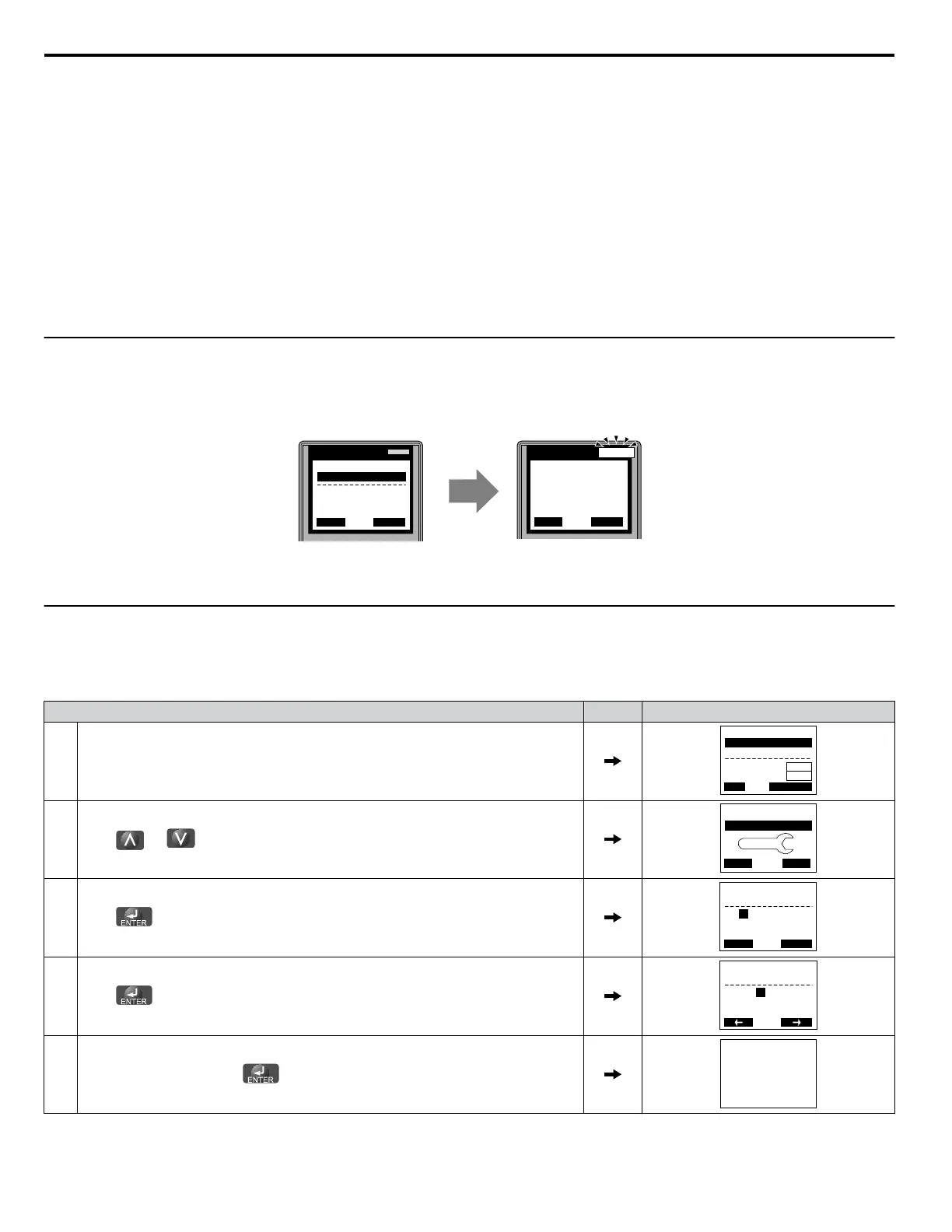

Auto-Tuning Interruption and Fault Codes
If tuning results are abnormal or the STOP key is pressed before completion, Auto-Tuning will be interrupted and a fault code
will appear on the digital operator.
B
DIGITAL OPERATOR JVOP-180
A
DIGITAL OPERATOR JVOP-180
ALARM
ALARM
- A.TUNE -
X XX Hz/ X.XXA
DRV
Tune Proceeding
Rdy
FWD
<<<<<< >>> >>>
- MODE -
Er-03
STOP key
DRV
FWD
RESET
A – During Auto-Tuning B – Auto-Tuning Aborted
Figure 4.12 Auto-Tuning Aborted Display
u
Auto-Tuning Operation Example
The following example demonstrates Rotational Auto-Tuning when using OLV (A1-02 = 2) and CLV (A1-02 = 3).
n
Selecting the Type of Auto-Tuning
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
2.
Press
or until the Auto-Tuning display appears.
HELP
- MODE - PRG
Auto-Tuning
DATA
AUTO
FWD
3.
Press
to begin setting parameters.
- A.TUNE -
T1-01= 0 *0*
Standard Tuning
PRG
Tuning Mode Sel
Rdy
ESC FWD DATA
4.
Press
to display the value for T1-01.
<1>
- A.TUNE -
T1-01= 0 *0*
Standard Tuning
PRG
Tuning Mode Sel
Rdy
FWD
“0”
5.
Save the setting by pressing .
Entry Accepted
4.7 Auto-Tuning
