n
Connecting a DC Reactor
A DC reactor can be installed to the drive. When installing a DC reactor, remove the jumper between terminals +1 and +2
(terminals are jumpered for shipment). The jumper must be installed if not using a DC reactor. Refer to Figure 8.10 for an
example of DC reactor wiring.
A
C
D
R/L1
B
S/L2
T/L3
1+ 2+
A – Power supply
B – MCCB
C – Drive
D – DC reactor

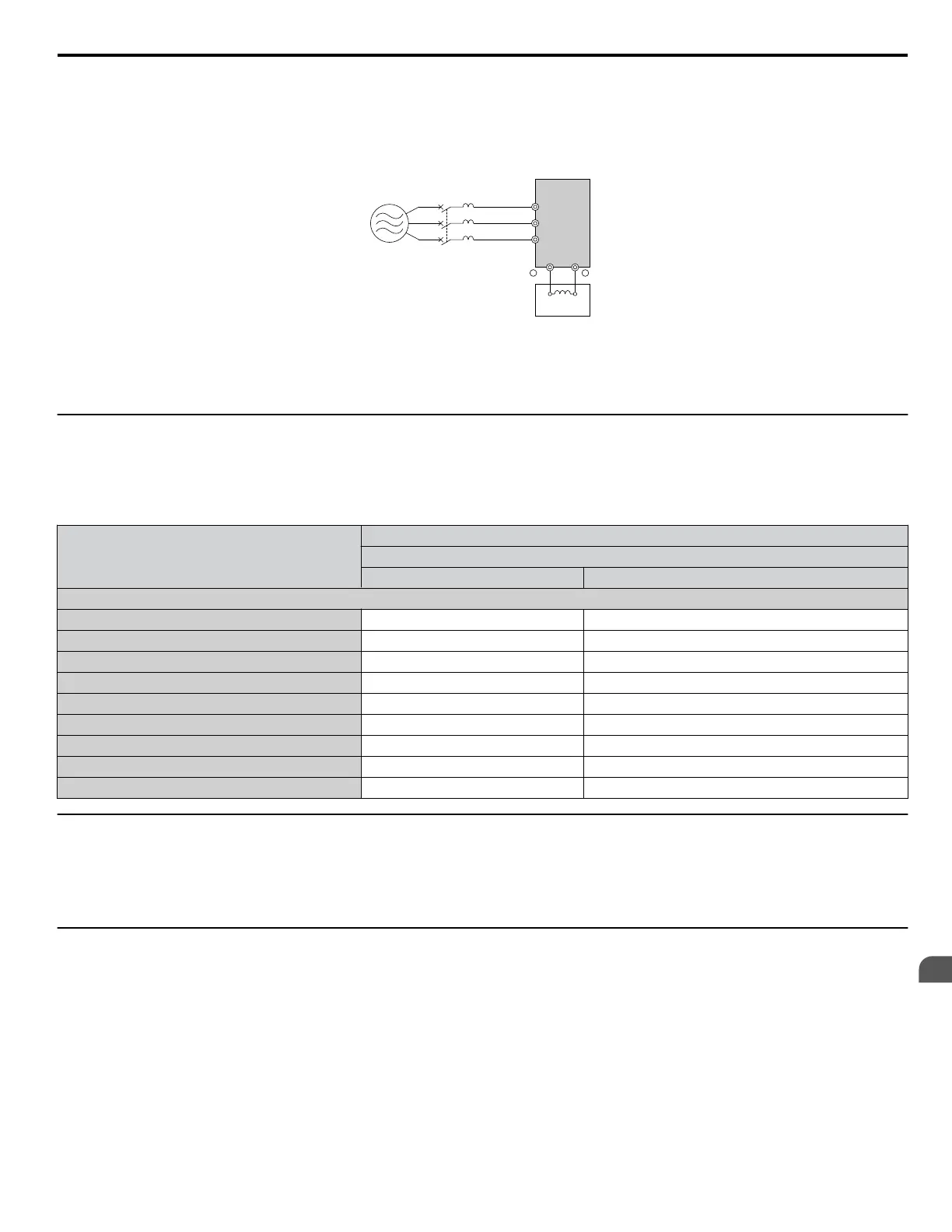

Figure 8.10 Connecting a DC Reactor
u
Installing Input Fuses
Always install input fuses at the drive input side of the drive to prevent damage from short circuits.
Select the appropriate fuse from the table below.
Table 8.3 Recommended Input Fuse Selection
Model CIMR-Ao
Fuse Type
Manufacturer: Bussmann
Model Fuse Ampere Rating
Three-Phase 600 V Class
5A0003 FWP-50B 50
5A0004 FWP-50B 50
5A0006 FWP-60B 60
5A0009 FWP-60B 60
5A0011 FWP-70B 70
5A0017 FWP-100B 100
5A0022 FWP-100B 100
5A0027 FWP-125A 125
5A0032 FWP-125A 125
u
Attachment for External Heatsink Mounting
An external attachment can be used to project the heatsink outside of an enclosure to ensure that there is sufficient air circulation
around the heatsink.
Contact a Yaskawa sales representative or Yaskawa directly for more information on this attachment.
u
Installing a Motor Thermal Overload (oL) Relay on the Drive Output
Motor thermal overload relays protect the motor by disconnecting power lines to the motor due to a motor overload condition.
Install a motor thermal overload relay between the drive and motor:
• When operating multiple motors on a single AC drive.
• When using a power line bypass to operate the motor directly from the power line.
It is not necessary to install a motor thermal overload relay when operating a single motor from a single AC drive. The AC
drive has UL recognized electronic motor overload protection built into the drive software.
Note: 1. Disable the motor protection function (L1-01 = 0) when using an external motor thermal overload relay.
2. The relay should shut off main power on the input side of the main circuit when triggered.
8.5 Installing Peripheral Devices
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
369
8
Peripheral Devices &
Options
