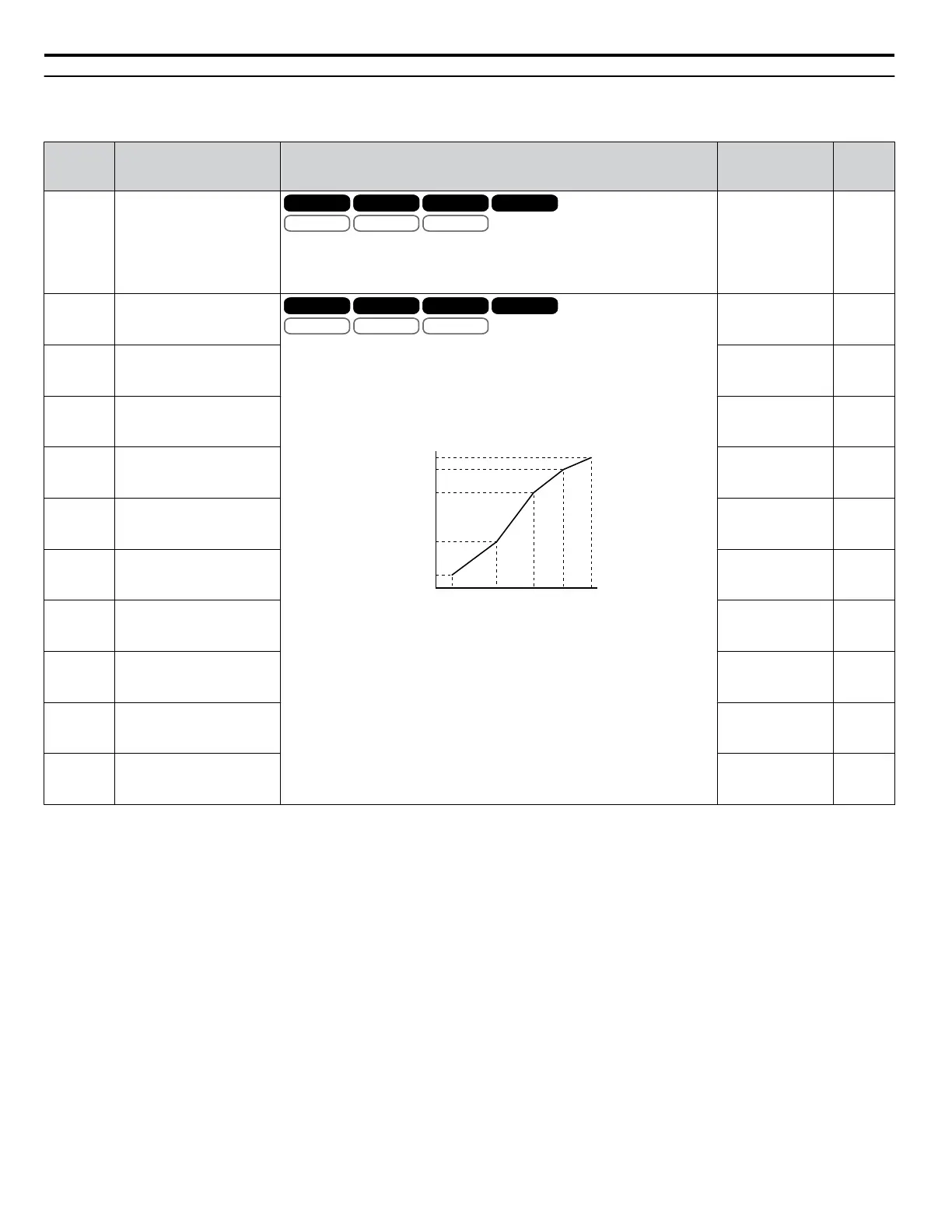

YASKAWA AC Drive-A1000 User Manual

u
E3: V/f Pattern for Motor 2
These parameters are hidden when a PM motor control mode has been selected for motor 1 (A1-02 = 5, 6, 7).
No.
(Addr.
Hex)
Name Description Values Page
E3-01
(319)
Motor 2 Control Mode
Selection
V/f
OLV/PM
V/f w PG
AOLV/PM
OLV
CLV/PM
CLVV/f V/f w PG OLV CLVV/f
OLV/PM
V/f w PG
AOLV/PM
OLV
CLV/PM
CLVV/f V/f w PG OLV CLV
0: V/f Control
1: V/f Control with PG
2: Open Loop Vector Control
3: Closed Loop Vector Control
Default: 0
Range: 0 to 3
190
E3-04
(31A)
Motor 2 Maximum Output
Frequency
V/f
OLV/PM
V/f w PG
AOLV/PM
OLV
CLV/PM
CLVV/f V/f w PG OLV CLVV/f
OLV/PM
V/f w PG
AOLV/PM
OLV
CLV/PM
CLVV/f V/f w PG OLV CLV
These parameters are only applicable when E1-03 is set to F.
To set linear V/f characteristics, set the same values for E3-07 and E3-09. In
this case, the setting for E3-08 will be disregarded. Ensure that the four
frequencies are set according to these rules or an oPE10 fault will occur:
E3-09 ≤ E3-07 < E3-06 ≤ E3-11 ≤ E3-04
Output Voltage (V)
Frequency (Hz)
E3-05
E3-12
E3-13
E3-08
E3-10
E3-09 E3-07 E3-06 E3-11 E3-04
Note: E3-07 and E3-08 are only available in the following control modes:
V/f, V/f w/PG and OLV.
Default:
<1>
Min.: 40.0
Max.: 400.0
190
E3-05
(31B)
Motor 2 Maximum Voltage
Default:
<1>
Min.: 0.0 V
Max.: 733.1 V
190
E3-06
(31C)
Motor 2 Base Frequency
Default:
<1>
Min.: 0.0
Max.: E3-04
190
E3-07
(31D)
Motor 2 Mid Output
Frequency
Default:
<1>
Min: 0.0
Max: E3-04
190
E3-08
(31E)
Motor 2 Mid Output
Frequency Voltage
Default:
<1>
Min: 0.0 V
Max: 733.1 V
190
E3-09
(31F)
Motor 2 Minimum Output
Frequency
Default:
<1>
Min.: 0.0
Max.: E3-04
190
E3-10
(320)
Motor 2 Minimum Output
Frequency Voltage
Default:
<1>
Min: 0.0 V
Max: 733.1 V
190
E3-11
(345)
<2>
Motor 2 Mid Output
Frequency 2
Default: 0.0
Min.: 0.0
Max.: E3-04
<3>
190
E3-12
(346)
<2>
Motor 2 Mid Output
Frequency Voltage 2
Default: 0.0 V
Min.: 0.0
Max.: 733.1
190
E3-13
(347)
Motor 2 Base Voltage
Default: 0.0 V
<4>
Min.: 0.0
Max.: 733.1
190
<1> Default setting is dependent on E3-01, Motor 2 Control Mode Selection. The value shown here is for V/f Control (0).
<2> Ignored when E3-11, Motor 2 Mid Output Frequency 2, and E3-12, Motor 2 Mid Output Frequency Voltage 2, are set to 0.
<3> The setting range is 0.0 to 66.0 in AOLV/PM.
<4> When Auto-Tuning is performed, E1-13 and E1-05 will be set to the same value.
B.7 E: Motor Parameters
404
