YASKAWA AC Drive-A1000 User Manual

u
Alarm and Error Displays
n
Faults
Table 6.9 gives an overview of possible fault codes. Conditions such as overvoltages can trip faults and alarms. It is important
to distinguish between faults and alarms to determine the proper corrective actions.
When the drive detects a fault, the ALM indicator LED lights, the fault code appears on the digital operator, and the fault
contact MA-MB-MC triggers. An alarm is present if the ALM LED blinks and the fault code on the digital operator flashes.
Refer to Minor Faults and Alarms on page 297 for a list of alarm codes.

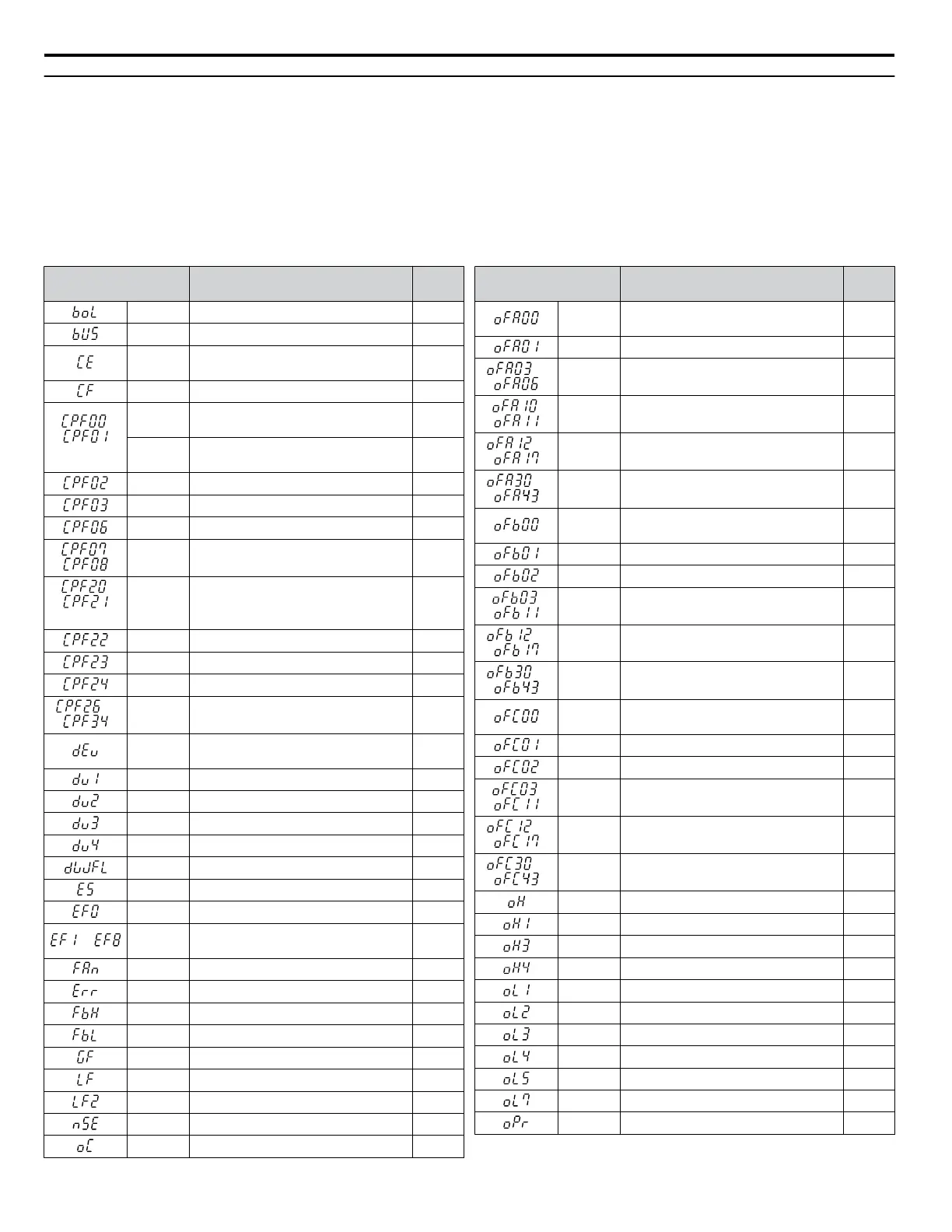

Table 6.9 Fault Displays
Digital Operator
Display
Name Page
boL Braking Transistor Overload Fault 300
bUS Option Communication Error 300
CE
MEMOBUS/Modbus Communication
Error
300
CF Control Fault 300
,
<1>
CPF11 to
CPF14
Control Circuit Error 301
CPF16 to
CPF19
Control Circuit Error 301
CPF02 A/D Conversion Error 301
CPF03 Control Board Connection Error 301
CPF06 EEPROM Memory Data Error 301
, CPF07,
CPF08
Terminal Board Connection Error 301
,
<2>
CPF20,
CPF21
Control Circuit Error 301
CPF22 Hybrid IC Error 302
CPF23 Control Board Connection Error 302
CPF24 Drive Unit Signal Fault 302
to CPF26 to
CPF34
Control Circuit Error 302
dEv
Excessive Speed Deviation
(for Control Mode with PG)
302
dv1 Z Pulse Fault Detection 302
dv2 Z Pulse Noise Fault Detection 302
dv3 Inversion Detection 303
dv4 Inversion Prevention Detection 303
dWFL DriveWorksEZ Fault 303
E5 SI-T3 Watchdog Timer Error 303
EF0 Option Card External Fault 303
to
EF1 to
EF8
External Fault
(input terminal S1 to S8)
303
FAn Internal Fan Fault 303
Err EEPROM Write Error 304
FbH Excessive PID Feedback 304
FbL PID Feedback Loss 305
GF Ground Fault 305
LF Output Phase Loss 305
LF2 Current Imbalance 305
nSE Node Setup Error 305
oC Overcurrent 306
Digital Operator
Display
Name Page
oFA00
Option Card Connection Error
(CN5-A)
307
oFA01 Option Card Fault (CN5-A) 307
to oFA03 to
oFA06
Option Card Error
(CN5-A)
307
, oFA10,
oFA11
Option Card Error
(CN5-A)
307
to oFA12 to
oFA17
Option Card Connection Error
(CN5-A)
307
to
oFA30 to
oFA43
Option Card Connection Error
(CN5-A)
307
oFb00
Option Card Connection Error
(CN5-B)
307
oFb01 Option Card Fault (CN5-B) 307
oFb02 Option Card Fault (CN5-B) 307
, oFb03,
oFb11
Option Card Error (CN5-B) 307
to oFb12 to
oFb17
Option Card Connection Error
(CN5-B)
307
to
oFb30 to
oFb43
Option Card Connection Error
(CN5-B)
307
oFC00
Option Card Connection Error
(CN5-C)
308
oFC01 Option Card Fault (CN5-C) 308
oFC02 Option Card Fault (CN5-C) 308
, oFC03,
oFC11
Option Card Error (CN5-C) 308
to oFC12 to
oFC17
Option Card Connection Error
(CN5-C)
308
to
oFC30 to
oFC43
Option Card Fault (CN5-C) 308
oH Heatsink Overheat 308
oH1 Heatsink Overheat 308
oH3 Motor Overheat 1 (PTC input) 309
oH4 Motor Overheat 2 (PTC input) 309
oL1 Motor Overload 309
oL2 Drive Overload 310
oL3 Overtorque Detection 1 310
oL4 Overtorque Detection 2 310
oL5 Mechanical Weakening Detection 1 310
oL7 High Slip Braking oL 311
oPr Operator Connection Fault 311
6.3 Drive Alarms, Faults, and Errors
296
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
