YASKAWA AC Drive-A1000 User Manual

u

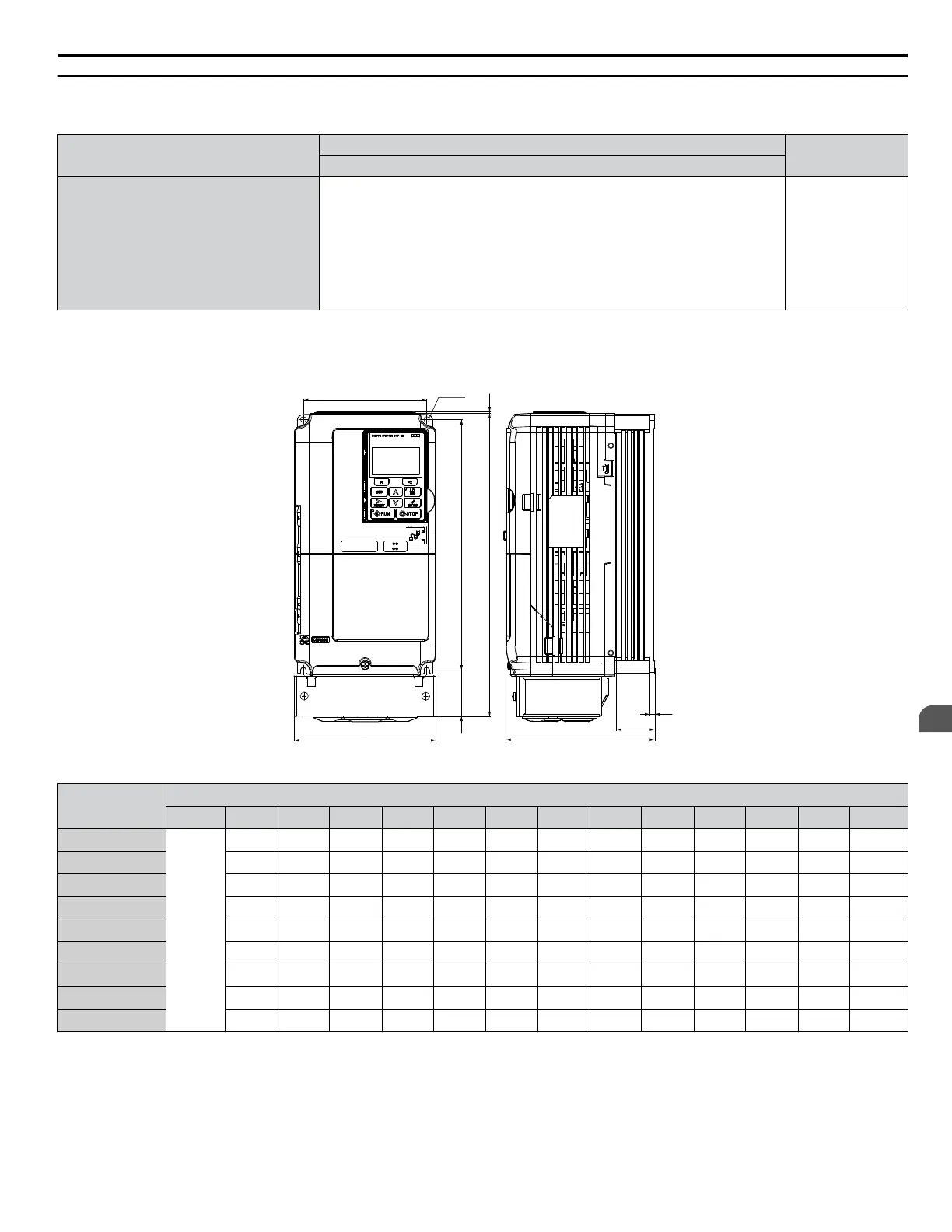

Exterior and Mounting Dimensions
Table 2.3 Drive Models and Types
Protective Design
Drive Model CIMR-Ao
Page
Three-Phase 600 V Class
IP20/NEMA Type 1
5o0003F
5o0004F
5o0006F
5o0009F
5o0011F
5o0017F
5o0022F
5o0027F
5o0032F
45
n
IP20/NEMA Type 1 Drives
Note: Removing the top protective cover or bottom conduit bracket from an IP20/NEMA Type 1 drive voids NEMA Type 1 protection while
maintaining IP20 conformity.
W1
1.5
H
H1
H2
D
D1
t1
Figure 1
4-d
W
Table 2.4 Dimensions for IP20/NEMA Type 1: 600 V Class
Drive Model
CIMR-Ao5A
Dimensions (in)
Figure W H D W1 H0 H1 H2 H3 D1 t1 t2 d Wt. (lb)
0003
1
<1>
5.5 11.8 5.8 4.8 – 9.8 1.8 – 1.5 0.2 – M5 7.5
0004 5.5 11.8 5.8 4.8 – 9.8 1.8 – 1.5 0.2 – M5 7.5
0006 5.5 11.8 6.5 4.8 – 9.8 1.8 – 2.2 0.2 – M5 8.1
0009 5.5 11.8 6.5 4.8 – 9.8 1.8 – 2.2 0.2 – M5 8.1
0011 5.5 11.8 6.6 4.8 – 9.8 1.8 – 2.2 0.2 – M5 9.0
0017 7.1 13.4 7.4 6.3 – 11.2 1.9 – 3.0 0.2 – M5 13.2
0022 7.1 13.4 7.4 6.3 – 11.2 1.9 – 3.0 0.2 – M5 13.2
0027 8.7 15.7 7.8 7.6 – 13.2 2.3 – 3.1 0.2 – M6 19.2
0032 8.7 15.7 7.8 7.6 – 13.2 2.3 – 3.1 0.2 – M6 19.2
<1> Removing the top protective cover or bottom conduit bracket from an IP20/NEMA Type 1 drive voids NEMA Type 1 protection while maintaining
IP20 conformity.
2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710616 31B YASKAWA AC Drive – A1000 Technical Manual
45
2
Mechanical Installation
