YASKAWA AC Drive-A1000 User Manual

D1
W
W
W1
W1
D
D2
1.4d
1.7d
0 9d
Figure 2Figure 1
D3
D3
W W
W1 W1
D
D2
D1
1.4d
0.9d

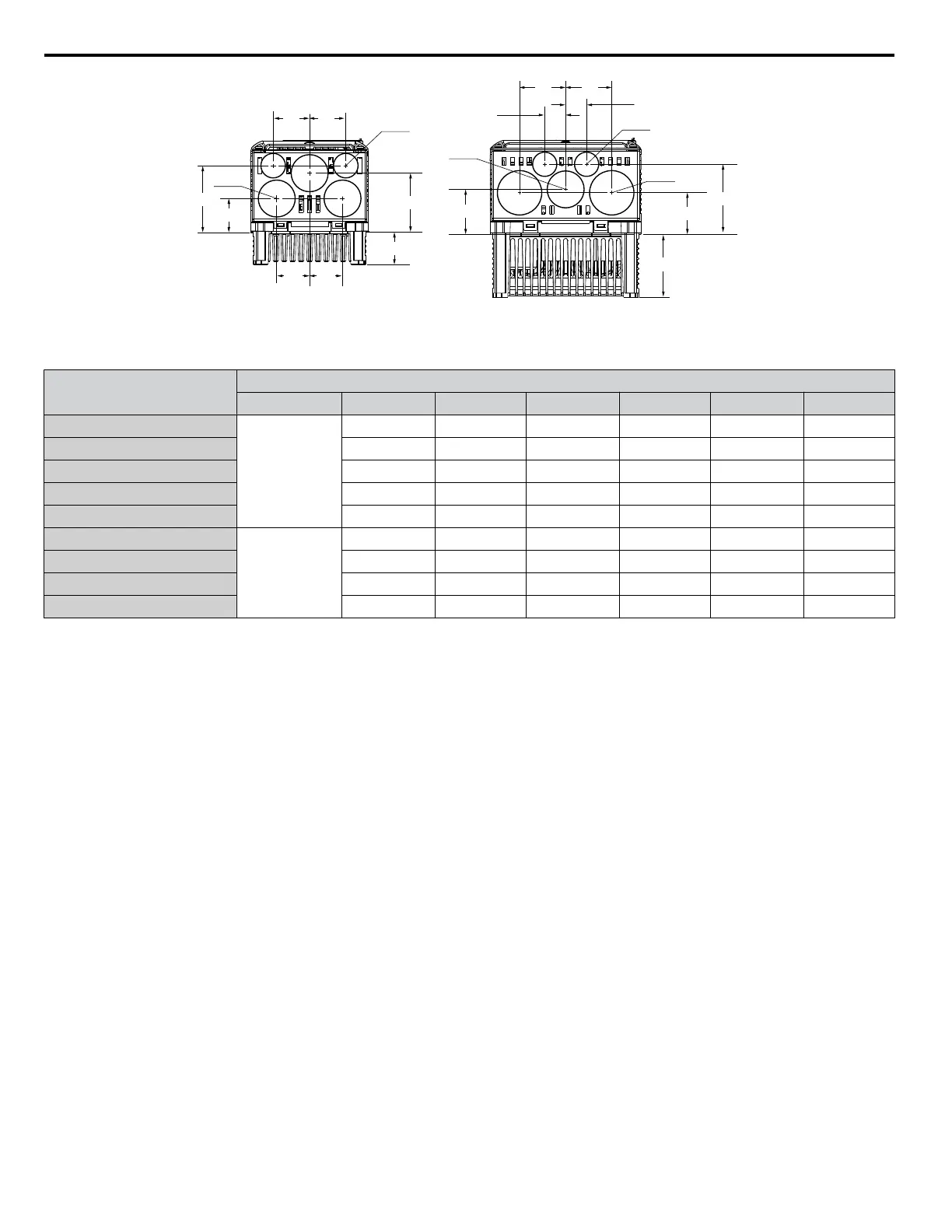

Table 2.5 Conduit Bracket Dimensions for IP20/NEMA Type 1: 600 V Class
Drive Model
CIMR-Ao5A
Dimensions (in)
Figure W D W1 D1 D2 D3
0003
1
<1>
1.7 3.1 1.5 1.5 1.6 2.8
0004 1.7 3.1 1.5 1.5 1.6 2.8
0006 1.7 3.1 1.5 2.2 1.6 2.8
0009 1.7 3.1 1.5 2.2 1.6 2.8
0011 1.7 3.1 1.5 2.2 1.6 2.8
0017
2
<1>
1.0 3.3 2.2 3.0 1.9 2.1
0022 1.0 3.3 2.2 3.0 1.9 2.1
0027 1.1 3.4 2.5 3.1 2.0 2.2
0032 1.1 3.4 2.5 3.1 2.0 2.2
<1> Removing
the top protective cover or bottom conduit bracket from an IP20/NEMA Type 1 drive voids NEMA Type 1 protection while maintaining
IP20 conformity.
