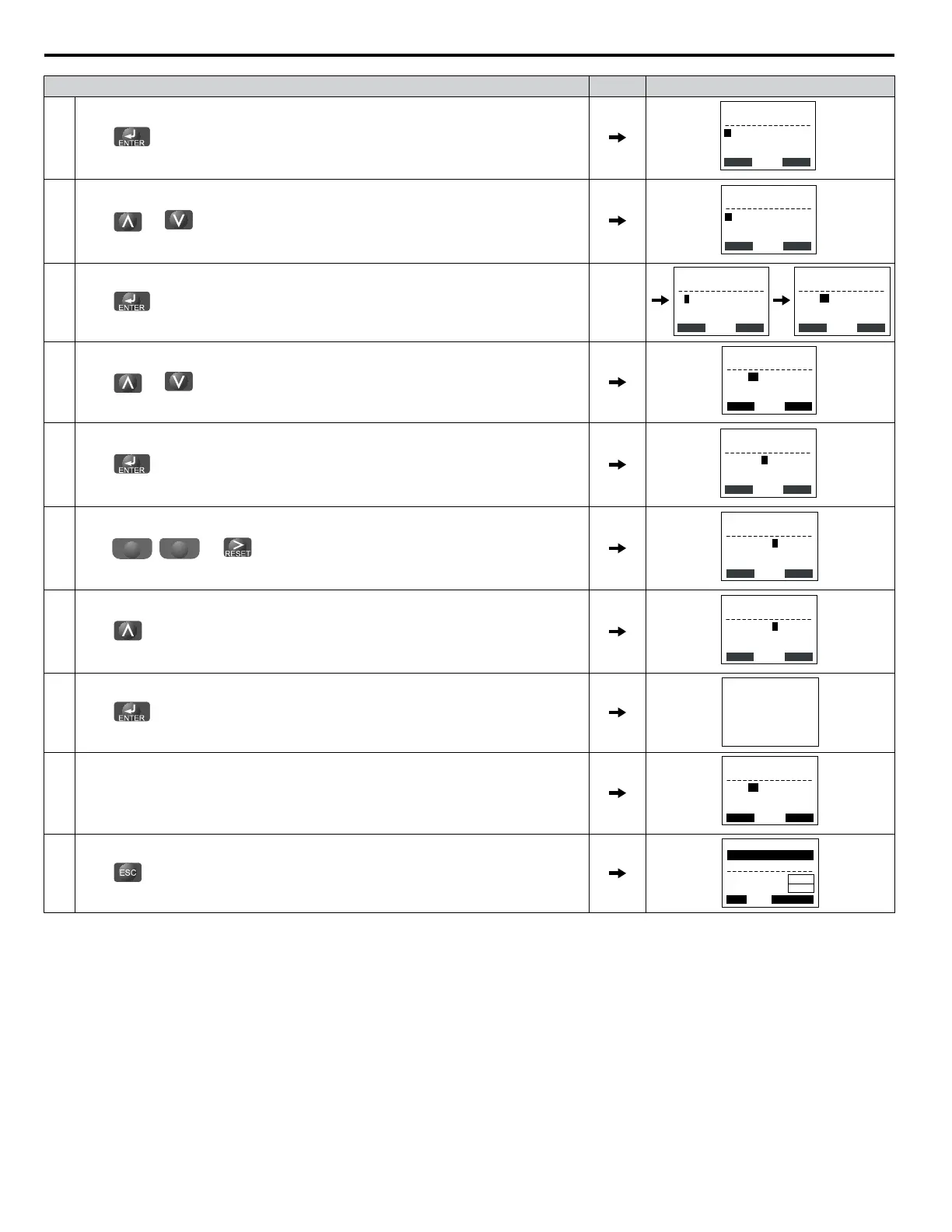

Step Display/Result
3.
Press
to enter the parameter menu tree.
← →
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00= 0
4.
Press or to select the C parameter group.
← →
-PRMSET-
Basic Setup
Accel Time 1
PRG
FWD
C1-01= 10 0 sec
5.
Press
two times.
← →
-PRMSET-
Accel/Decel
Accel Time 1
PRG
FWD
C1-01= 10.0 sec
-PRMSET-
C1-01= 10.0Sec
(0.0~6000 0)
“10 0 sec”
PRG
Accel Time 1
← →
FWD
6.
Press
or to select parameter C1-02.
← →
-PRMSET-
C1-02= 10 0Sec
(0 0~6000 0)
“10.0 sec”
PRG
Decel Time 1
FWD
7.
Press to view the current setting value (10.0 s). The leftmost digit flashes.
-PRMSET-
C1-02= 0010 0Sec
(0 0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
8.
Press
F1
,
F2
, or
until the desired number is selected. “1” flashes.
-PRMSET-
C1-02=0010.0Sec
(0 0~6000.0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
9.
Press
and enter 0020.0.
-PRMSET-
C1-02=0020 0Sec
(0.0~6000 0)
“10.0 sec”
PRG
Decel Time 1
← →
FWD
10.
Press
to confirm the change.
Entry Accepted
11. The display automatically returns to the screen shown in Step 4.
← →
-PRMSET-
C1-02= 20.0Sec
(0 0~6000.0)
“10.0 sec”
PRG
Decel Time 1
FWD
12.
Press
as many times as necessary to return to the initial display.
- MODE -
U1-01= 0 00Hz
U1-02= 0 00Hz
U1-03= 0 00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
4.3 The Drive and Programming Modes
