8 Monitor Displays (Un)
8-4
8.3 Reading 32-bit Data in Decimal Displays
The 32-bit data is displayed in decimal format. This section describes how to read the display.
The method for reading the disp
lay is summarized below.
The number of pulses between -2147483648 and 2147483647 is displayed continuously. When the number of
pu
lses is outside this range, the display will change as follows:
•
The displayed value will change to 2147483647 when the number of pulses decreases by one from
-2147483648. Thereafter, the displayed value will decrea
se according to the number of pulses.
• The displayed value will change to -2147483648 when the nu
mber of pulses increases by one from
2147483647. Thereafter, the displayed value will increase according to the number of pulses.

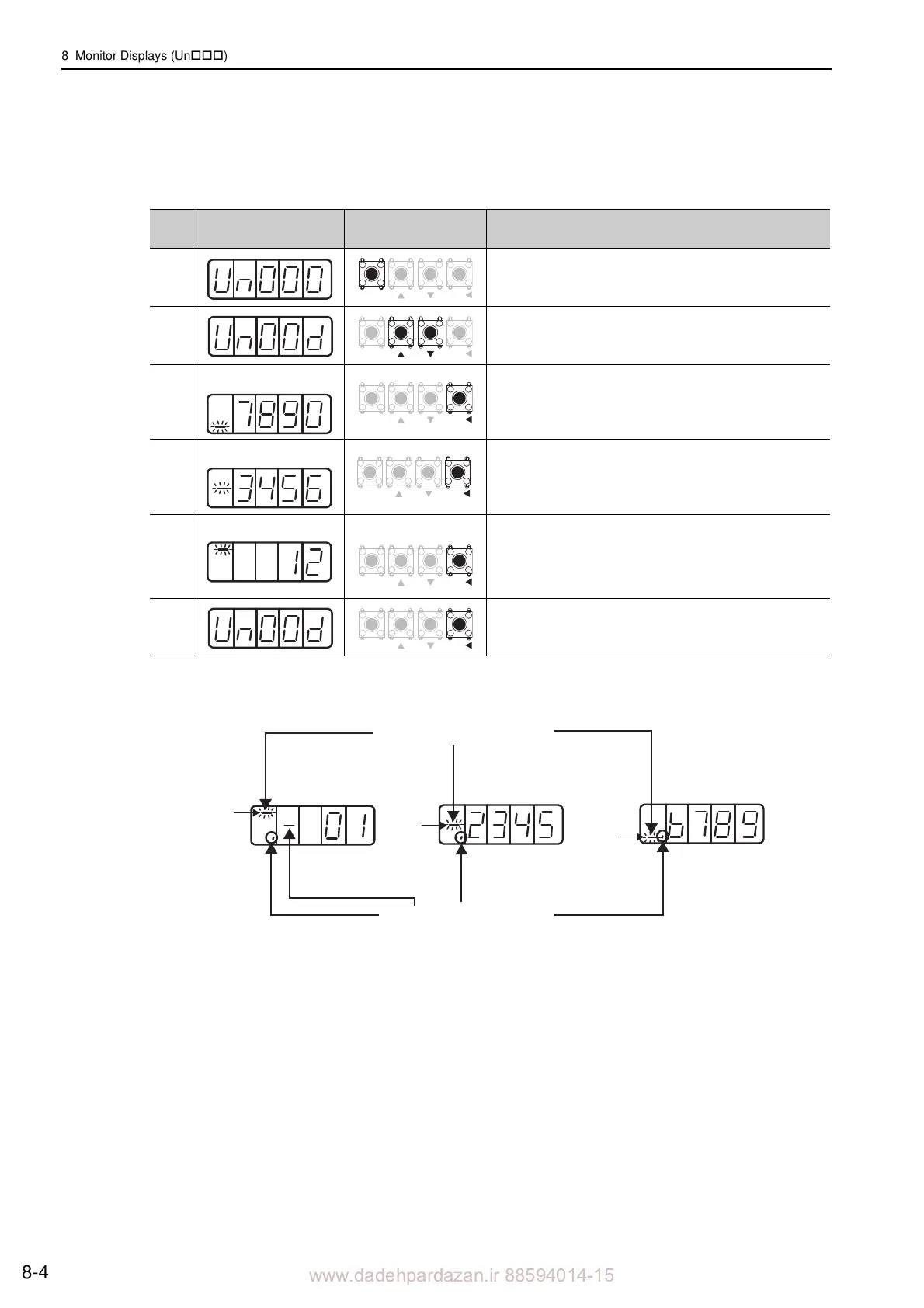

Step
Display after Opera-
tion
Keys Operation
1 Press the MODE/SET Key to select the monitor display.
2
Press the UP or DOWN Key to display
the parameter to be
displayed in 32-bit decimal.
In this example, "Un00D" is selected.
3
Press the DATA/SHIFT Key for appro
ximately one second.
The lower 4 digits of the setting of the selected parameter
are displayed.
4
After checking the displayed digits, press
the DATA/SHIFT
Key. The middle 4 digits of the setting of the selected
parameter are displayed.
5
Press the DATA/SHIFT Key again. The upper 2 digits of the
setting of the selected parameter are displayed.
Note: If the DATA/SHIFT Key is pressed after the upper 2
digits are displayed, the lower 4 digits of the setting
will be displayed again.
6
Press the DATA/SHIFT Key for
approximately one second
to return to the display of step 2.
MODE
SET
DATA
MODE
SET
DATA
MODE
SET
DATA
MODE
SET
DATA
Upper 2 digits
Middle
4 digits
Lower
4 digits
The display flashes to show the
digit position.
Displayed for negative values.
To Next Page
