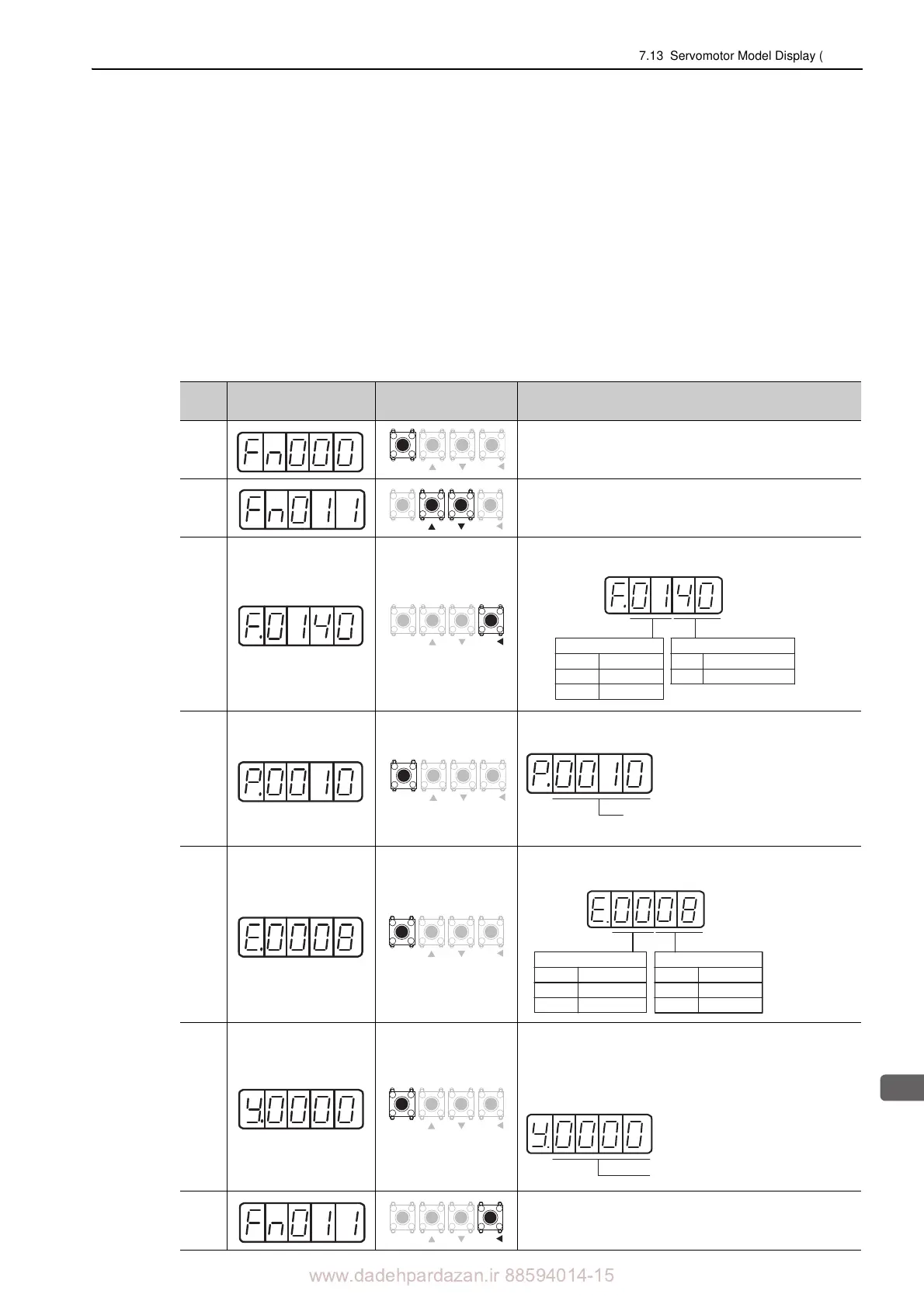

7.13 Servomotor Model Display (Fn011)
7-21
7
Utility Functions (Fn)
7.13 Servomotor Model Display (Fn011)
This function is used to check the servomotor model, voltage, capacity, encoder type, and the number of divi-
sions of linear scale’s pitch. If the SERVOPACK has been custom-made, you can also check the specification
codes of
SERVOPACKs.
(1) Preparation
There are no tasks that must be performed before the execution.
(2) Operating Procedure
Use the following procedure.
Step
Display after Opera-
tion
Keys Operation
1 Press the MODE/SET Key to select the utility function.
2 Press the UP or DOWN Key to select Fn011.
3
Press the DATA/SHIFT Key for
approximately one second
to display the servomotor voltage and model codes.
4
Press the MODE/SET Key to display the servomotor capac-
ity.
5
Press the MODE/SET Key to display the
encoder type and
the number of divisions of linear scale's pitch.
6
Press the MODE/SET Key to display the SERVOPACK’s
code for custom order
s.
The display "y.0000" means a standard model.
If anything other than "y.0000" is displayed, a customized
device
is being used.
7
Press the DATA/SHIFT Key for approximately one second.
"Fn01
1" is displayed again.
MODE
SET
DATA
MODE
SET
DATA
Servomotor Voltage
Data
Type
200 VAC01
400 VAC02
Servomotor Model
Data
Model
linear motor
40
MODE
SET
DATA
Servomotor capacity in units of 10 W
The above example indicates 100 W.
Encoder Type
Data
Type
Incremental
00
Absolute
01
No. of Devisions
Data
Resolution
2568
409612
MODE
SET
DATA
