5 Operation
5.9.2 Absolute Data Reception Sequence
5-72
5.9.2 Absolute Data Reception Sequence
The sequence in which the SERVOPACK receives outputs from the absolute linear scale and transmits them to
host controller is shown below.

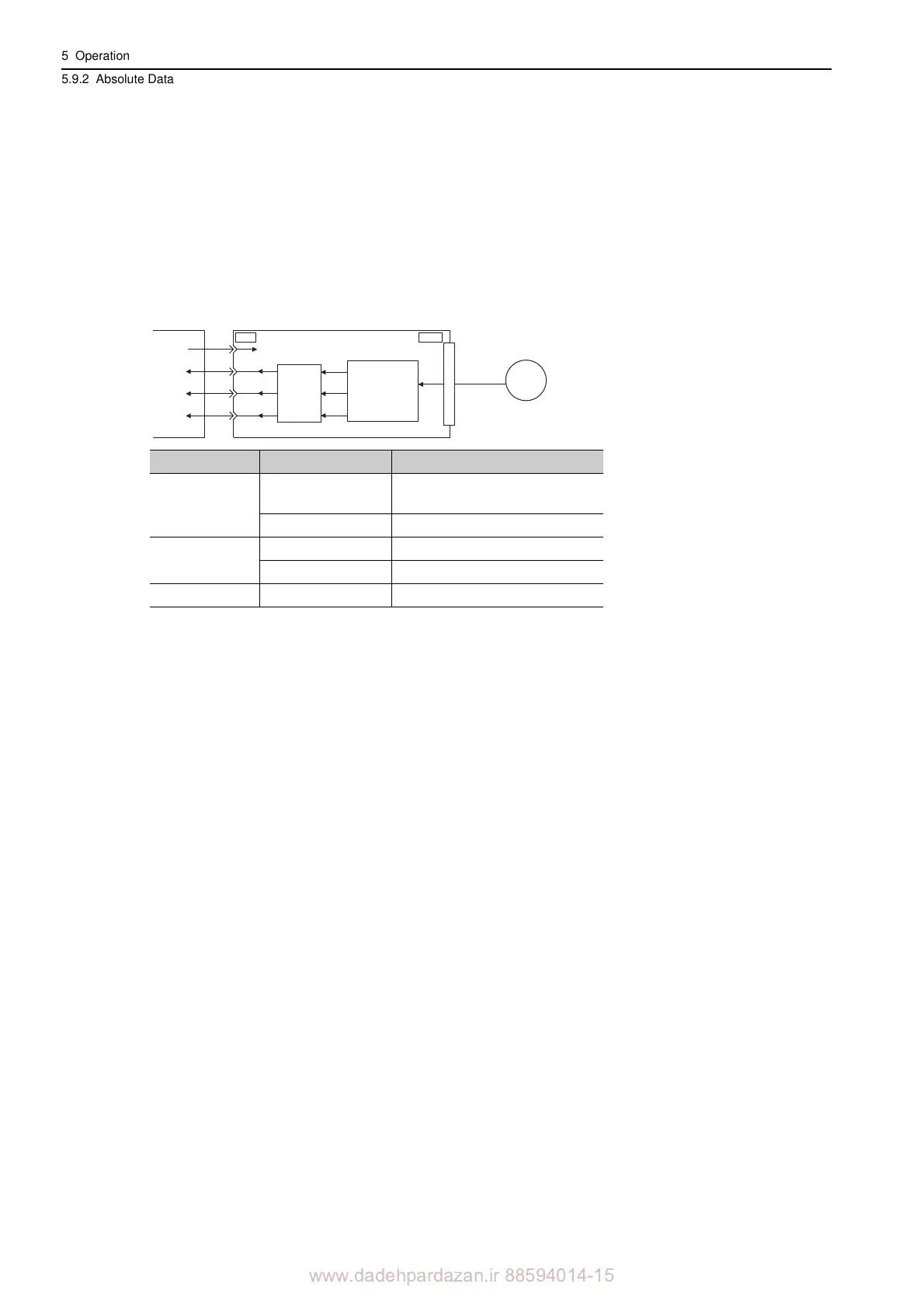

(1) Outline of Absolute Data
The serial data, pulses, etc., of the absolute linear scale that are output from the SERVOPACK are output from
the PAO, PBO, and PCO signals as shown below.
 Phase-C Output Specifications
The pulse width of phase C (origin pulse) changes depending on the encoder output resolution (Pn281),
becoming the same width as phase A.
The output timing is one of the following.
• Synchronized with the rising edge of phase A
• Synchronized with the falling edge of phase A
• Synchronized with the rising edge of phase B
• Synchronized with the falling edge of phase B
Note: When host controller receives the data of absolute linear scale, do not perform counter reset using the output of PCO
signal.
Signal Name Status Contents
PAO
At initialization
Serial data
Initial incremental pulses
Normal Operations Incremental pulses
PBO
At initialization Initial incremental pulses
Normal Operations Incremental pulses
PCO Always Origin pulses
ENC
CN1
SEN
PAO
PBO
PCO
CN2
Serial
data
Serial data→
pulse conversion
Host
controller SERVOPACK
Dividing
circuit
(Pn281)
