8.2 Viewing Monitor Displays
8-3
8
Monitor Displays (Un)
8.2 Viewing Monitor Displays

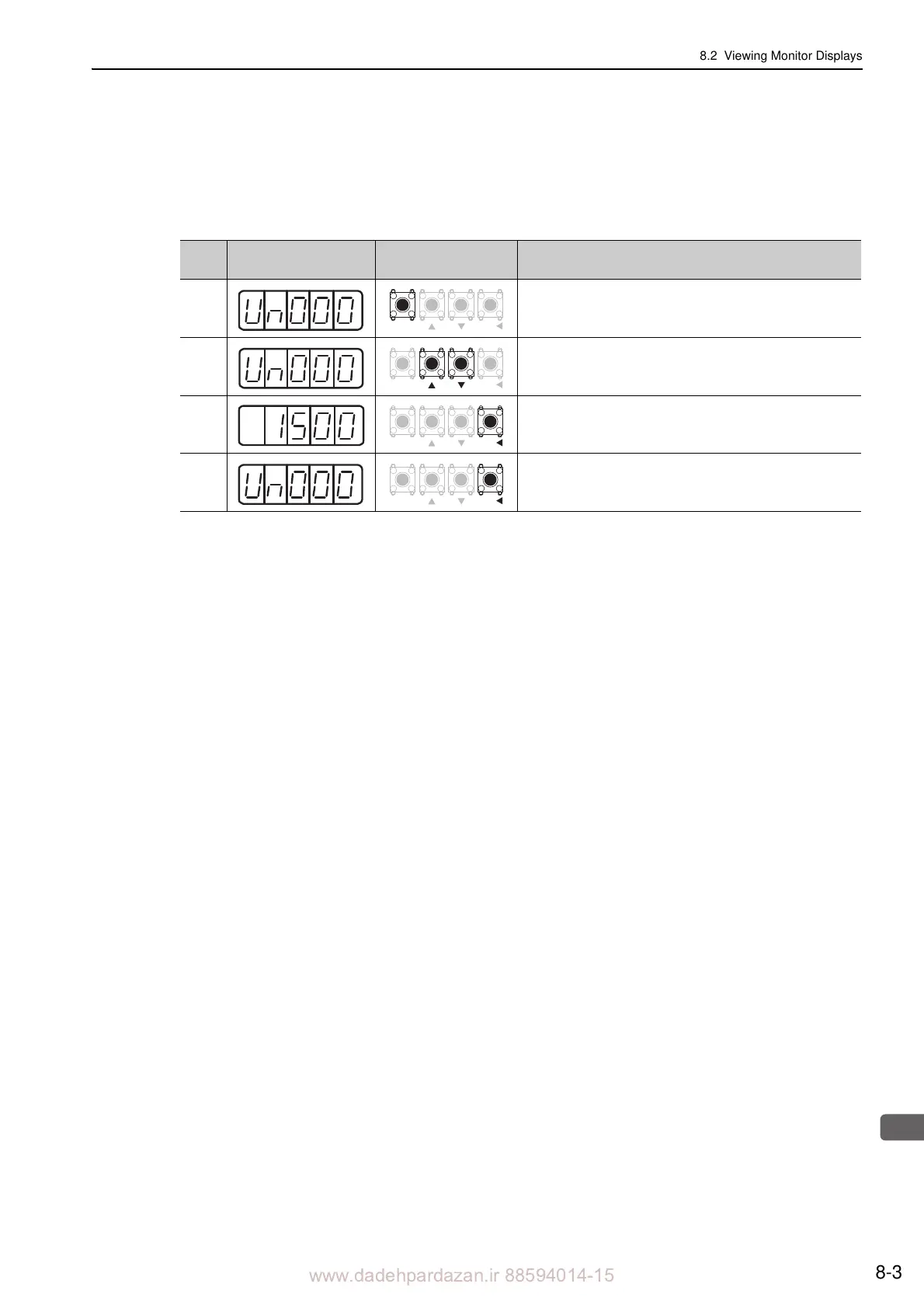

The example below shows how to view the contents of monitor number Un000 (when the servomotor moves
at 1500 mm/s).
Step
Display after Opera-
tion
Keys Operation
1
Press the MODE/SET Key to select the monitor display.
2
If Un000 is not displayed, press the UP or DOWN Key to
select Un000.
3
Press the DATA/SHIFT Key for approximately one sec-
ond to display the motor moving speed (Un000).
4
Press the DATA/SHIFT Key for approximately one sec-
ond to return to the display of step 1.
MODE / SET DATA /
MODE
/
SET DATA
/
MODE
/
SET DATA
/
MODE
/
SET DATA
/

YASKAWA SGDV SERVOPACK Specifications

General

Model	SGDV
Type	SERVOPACK
Control Modes	Position, Speed, Torque
Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Vibration Resistance	5.9 m/s² (0.6G) at 10-60Hz
Shock Resistance	49 m/s² (5G)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Regenerative overload, Encoder error
