7 Utility Functions (Fn)
7-34
7.22 Online Vibration Monitor (Fn207)
If vibration is generated during operation and this function is executed while the servo ON signal (/S-ON) is
still ON, the machine vibration can sometimes be suppressed by setting a notch filter or force reference filter
for the vibration frequencies.
When online, vibration frequency caused by machine resonance will be detected
and the frequency that has
the highest peak will be displayed on the panel operator. The effective force reference filter or notch filter fre-
quency for the vibration frequencies will be automatically
selected and the related parameters will be automat-
ically set.
In addition to this function, EasyFFT (Fn20
6) can be used to detect machine vibration and automatically make

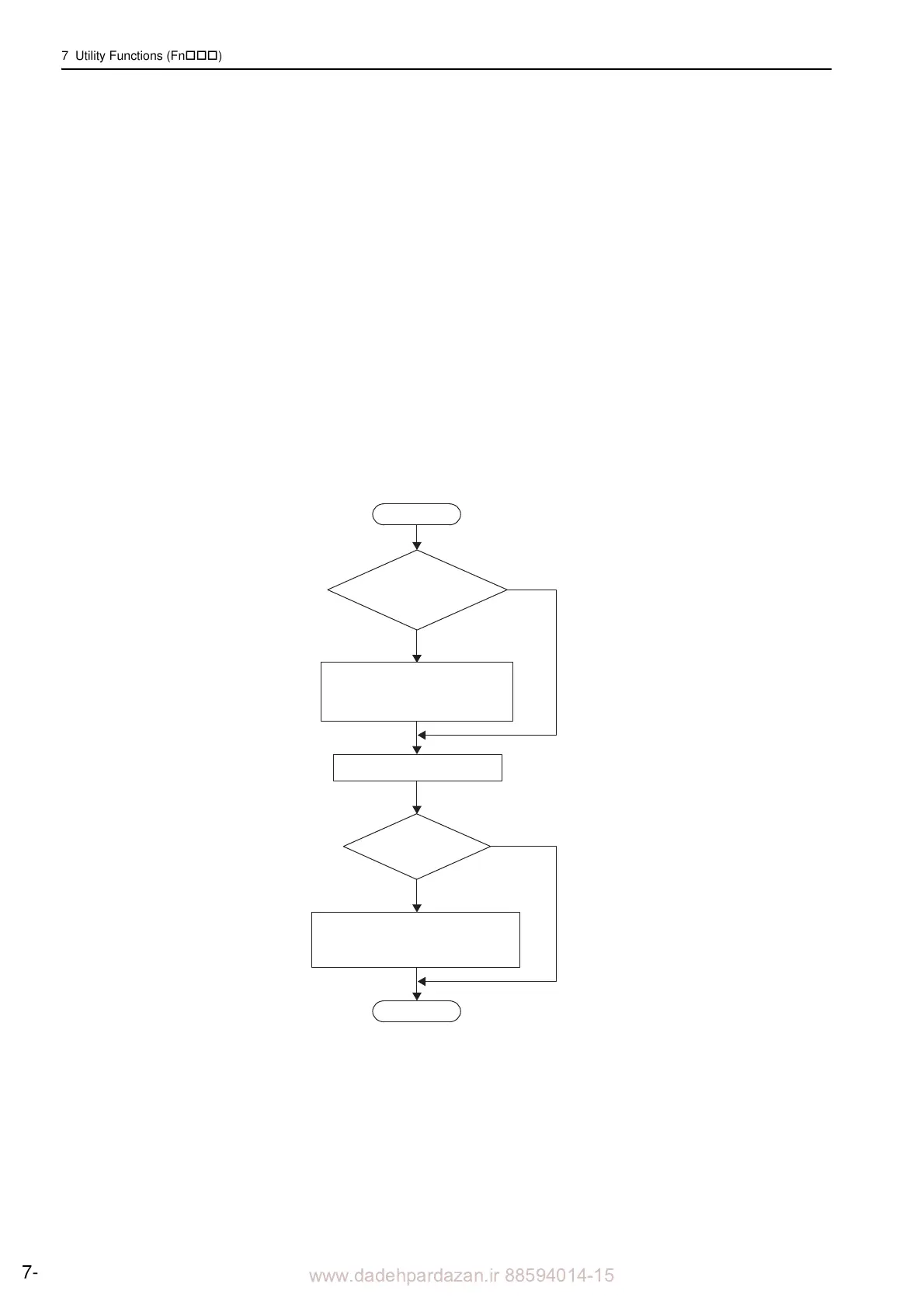

notch filter settings. Use the following flowchart to determine how these functions should be used.
If a -
V Series SERVOPACK is used to make adjustments, it is recommended that you use advanced autotun-
ing. This built-in function is used to maintain interchan
geability with previous models. There is normally no
need to use it.
(1) Preparation
The following conditions must be met to perform online vibration monitoring.
• The write prohibited setting parameter (Fn010) mu
st be set to Write permitted (P.0000).
• The servo ON signal (/S-ON) must be ON.
• There must be no overtravel.
• The correct mass (Pn103) must be set.
• The test without a motor function must be disabled (Pn00C.0 = 0).
Start
How to use EasyFFT (Fn206) and online vibration monitor (Fn207),
when they are mainly used for servo gain adjustment.
End
Vibration with
high-frequency noise
during operation
No
No
Yes
Yes
Adjust servo gain
Vibration
With the servomotor power ON,
execute online vibration
monitor (Fn207)
Turn OFF the servo ON signal (/
S-ON), and execute EasyFFT
(Fn206)
To Next Page
