10 Appendix
10.1.3 Connection to OMRON’s Motion Control Unit
10-4

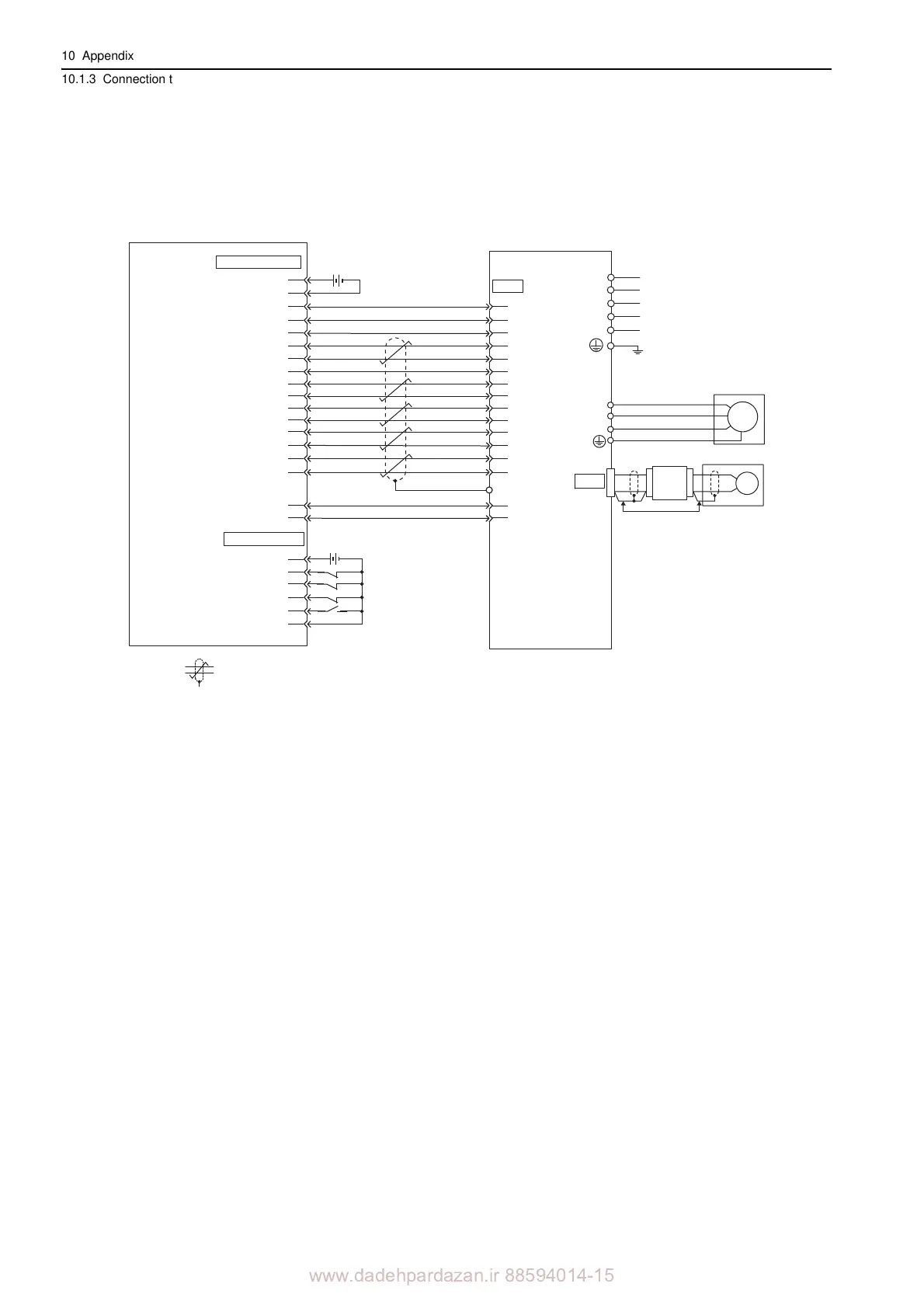

10.1.3 Connection to OMRON’s Motion Control Unit
 represents twisted-pair wires.
 This connection is to adjust the p
hase of the encoder output pulse.
Note 1. Only the signals that are related to the SGDV SER
VOPACK and the OMRON Motion Control Unit are shown in
the diagram.
2. The main circuit power supply is a three-phase 200 VAC SERVOPACK input in the example.
3. Incorrect signal connections will cause damage to the motion control unit and SERVOPACK. Wire all connec-
tions carefully.
4. Open the signal lines not to be used.
5. The above connection diagram shows the connections for only one axis. When using other axes, make connec-
tions to the SERVOPACK in the same way.
6. Short-circuit the normally closed (NC) input terminals that are not used at the I/O connector section of the motion
control unit.
7. Make the settings so that the servomotor can be turned ON/OFF by the Servo ON signal (/S-ON).
8. The SERVOPACK incorporates safety functions to protect people from the hazardous operation of the movable
parts of the machines, reduce the risk, and ensure the safety of the machine in operation. Necessary circuits and
settings are required in CN8 to use these functions. If these functions are not used, use the SERVOPACK with the
enclosed safety jumper connected to CN8. For details, refer to 5.11 Safety Function.
CN1
3
4
5
16
8
9
13
12
11
19
15
14
18
1
5
6
1
19
20
L1C
L3
L2
L1
L2C
35
34
20
4
36
47
32
10
10
17
2
4
6
14
1
2
2
31
33
44
40
ALM+
/S-ON
/ALM-RST
SG
SEN
SG
SG
ALM-
FG
PAO
/PAO
/PBO
PBO
PCO
/PCO
V-REF
+24 V-IN
*1
*2
*1
*1
Motion Control Unit
manufactured by OMRON Corporation
C200H-MC221
(CS1W-MC221/MC421)
(CV500-MC221/MC421)
DRV connector
SGDV
SERVOPACK
24 V
24 VDC
24 VDC
input
24 V input ground
X
-axis alarm input
X-axis run reference output
X-axis alarm reset output
X-axis SEN signal ground
X-axis SEN signal output
X-axis feedback ground
X-axis phase-A input
X-axis phase-/A input
X-axis phase-B input
X-axis phase-/B input
X-axis phase-Z input
X-axis phase-/Z input
X-axis speed reference
Axis speed reference ground
24 V output
24 V output ground
I/O connector
24 V input
X-axis CW limit input
X-axis CCW limit input
X-axis immediate stop input
X-axis origin proximity input
24 V input ground
Shell
Control
power supply
Main circuit
power supply
CN2
W
V
U
M
Enc
Servomotor
Linear scale
Properly treat the end of
shielded wires.
Serial
converter
unit
47
