8 Monitor Displays (Un)
8.6.3 Input Signal Display Example
8-8
8.6.3 Input Signal Display Example

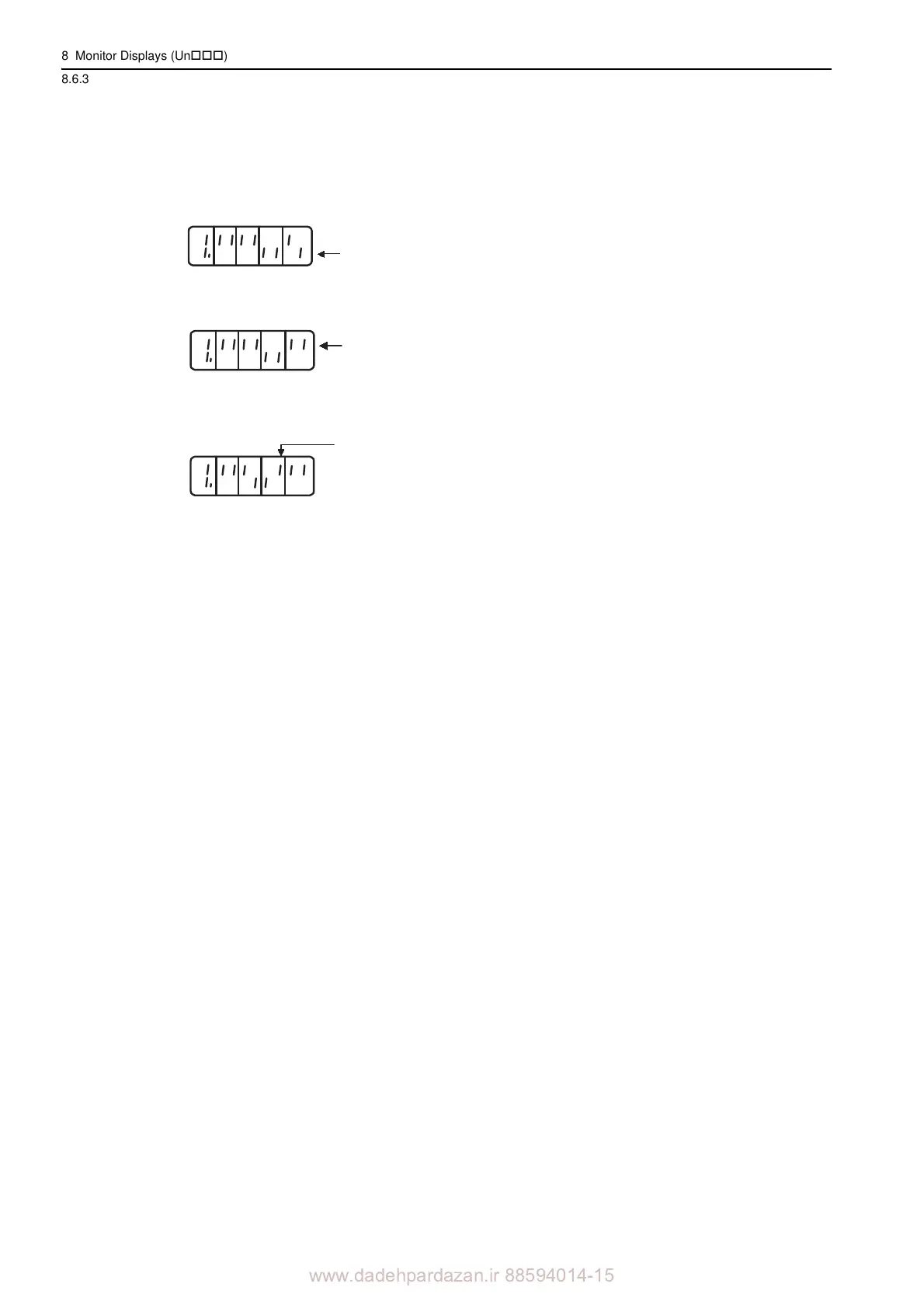

Input signals are displayed as shown below.
• When the /S-ON signal is ON
• When the /S-ON signal is OFF
• When the P-OT signal operates
The bottom segment
of number 1 is lit.
76543218
Analog
The top segment of
number 1 is lit.
76543218
Analog
The top segment of
number 3 is lit.
76543218
Analog

YASKAWA SGDV SERVOPACK Specifications

General

Model	SGDV
Type	SERVOPACK
Control Modes	Position, Speed, Torque
Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Vibration Resistance	5.9 m/s² (0.6G) at 10-60Hz
Shock Resistance	49 m/s² (5G)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Regenerative overload, Encoder error
