4.5 Test Without Motor Function
4-13
4
Trial Operation
4.5.4 Operator Displays during Testing without Motor

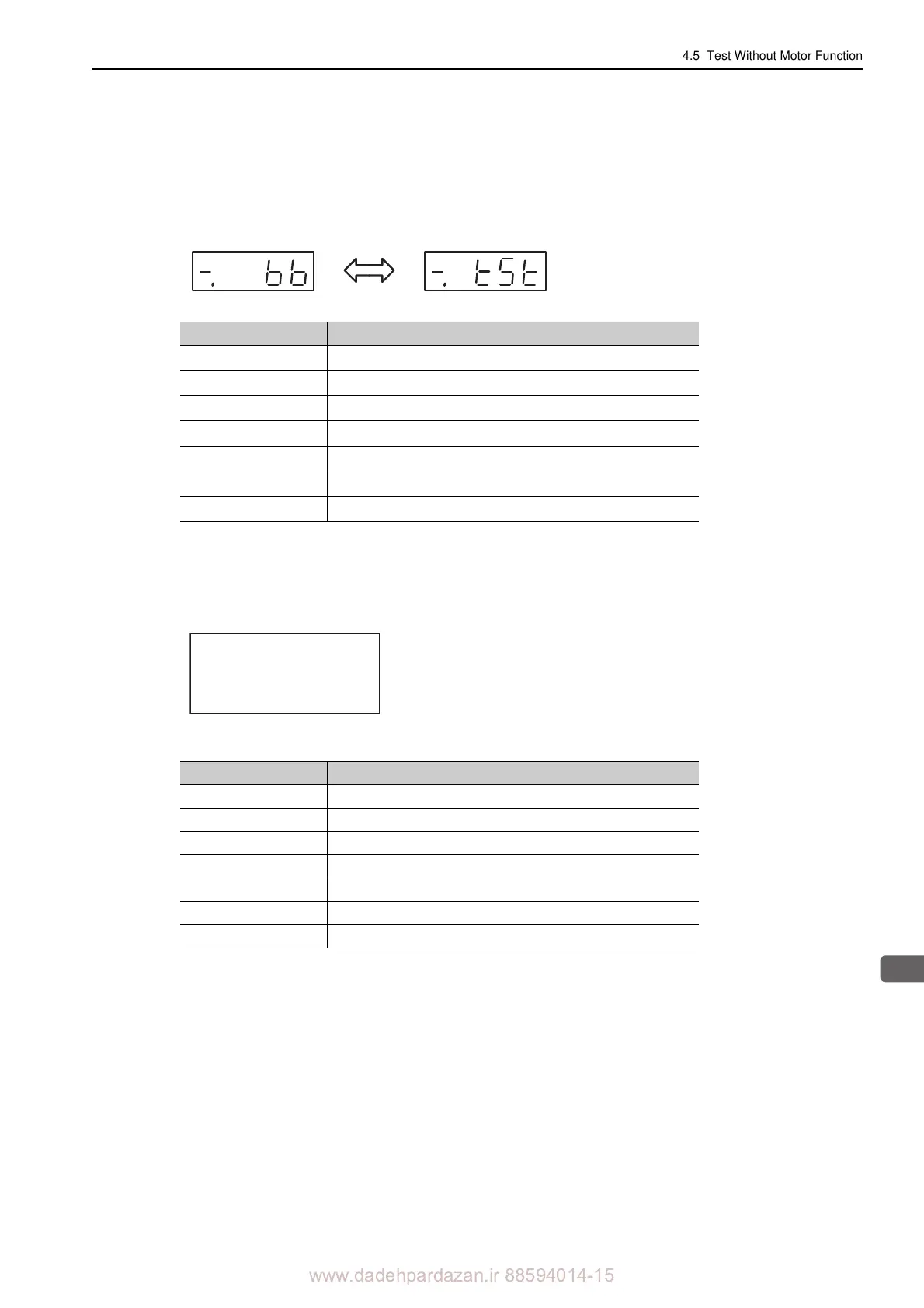

The status display changes as shown below to show that the test without a motor is being executed.
(1) Display on Panel Operator
 The test without a motor operation in progress is indicated with tSt.
Note: The test without a motor status is not displayed during alarm occurs (A.).
(2) Display on Digital Operator
An asterisk () is displayed before status display to indicate the test without a motor operation is in progress.
(Example: Status of power to the servomotor is OFF)
Note: The test without a motor status is not displayed during alarm occurs (A.).
Display Status
run ⇔ tSt
Power is supplied to the servomotor.
bb ⇔ tS
t
Power to the servomotor is OFF.
P-dt ⇔ tS
t
The polarity is being detected.
Pot ⇒ not ⇒ tSt
Forward or reverse run is prohibited.
Pot ⇔ tSt
Forward run is prohibited.
not ⇔ tSt
Reverse run is prohibited.
Hbb ⇔ tS
t
In hard-wire base block (safety) state.
Displayed alternately
Analog
Display Status
*RUN Power is supplied to the servomotor.
*BB Power to the servomotor is OFF.
*P DET The polarity is being detected.
*PT NT Forward or reverse run is prohibited.
*P-OT Forward run is prohibited.
*N-OT Reverse run is prohibited.
*HBB In hard-wire base block (safety) state.
∗ BB
− PRM/MON−
Un000=0 00000
Un002=0 00000
Un008=0 0000000000
Un00D=0 0000000000
