5 Operation
5.2.5 Holding Brakes
5-10
5.2.5 Holding Brakes
A holding brake is a brake used to hold the position of the movable part of the machine when the SERVO-
PACK is turned OFF so that movable part does not move
due to gravity or external forces. The brake is not
included, so if necessary, install a holding brake on the machine.

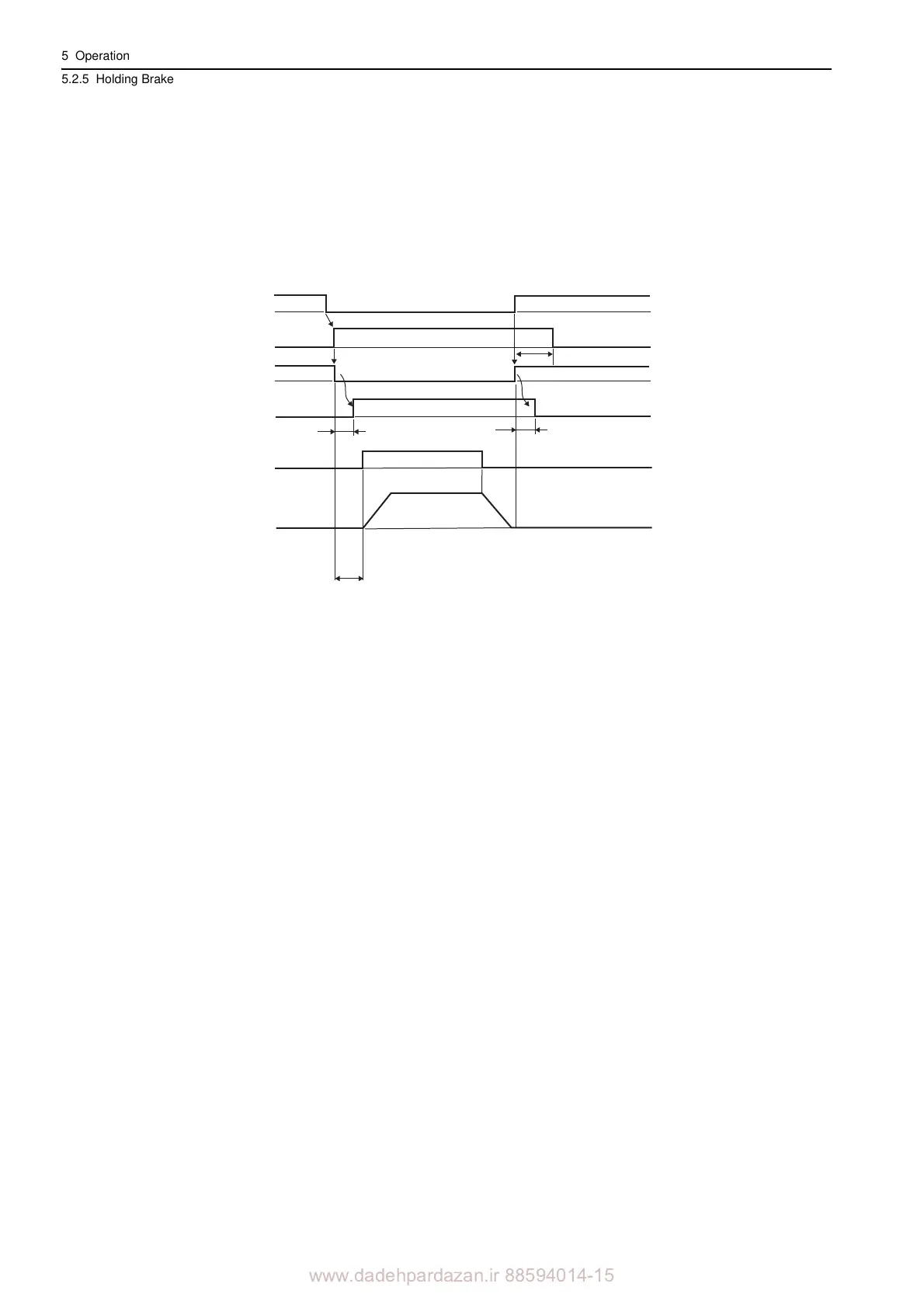

There is a delay in the braking operation. Set the following ON/OFF timing.
 The operation delay time of the brake depends on the model. Check the operation delay time of the brake being used.
 After the/S-ON signal has turned ON and
50 ms has passed since the brake was released, output the reference from
the host controller to the SERVOPACK.
 Use Pn506, Pn508, and Pn583 to set the timing of when the brake will be activated and when the servomotor power
will be turned OFF.
*1
*2
0V
*1
*3
Servo ON signal
(/S-ON)
Servomotor power
Brake signal (/BK)
Brake contact part
(lining)
Position reference/
Speed reference
Motor speed
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
Brake release Brake applied
Brake applied
Analog

YASKAWA SGDV SERVOPACK Specifications

General

Model	SGDV
Type	SERVOPACK
Control Modes	Position, Speed, Torque
Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Vibration Resistance	5.9 m/s² (0.6G) at 10-60Hz
Shock Resistance	49 m/s² (5G)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Regenerative overload, Encoder error
