YASKAWA SGDV SERVOPACK User Manual

www.dadehpardazan.ir 88594014-15
3 Wiring and Connection
3.6.1 Connecting Regenerative Resistors
3-44
(3) SERVOPACKs: Model SGDV-550A and -260D
No built-in regenerative resistor is provided, so the external regenerative resistor is required. The regenerative
resistor units are as follows:
Note: The regenerative resistor unit is constructed from a number of resistors.

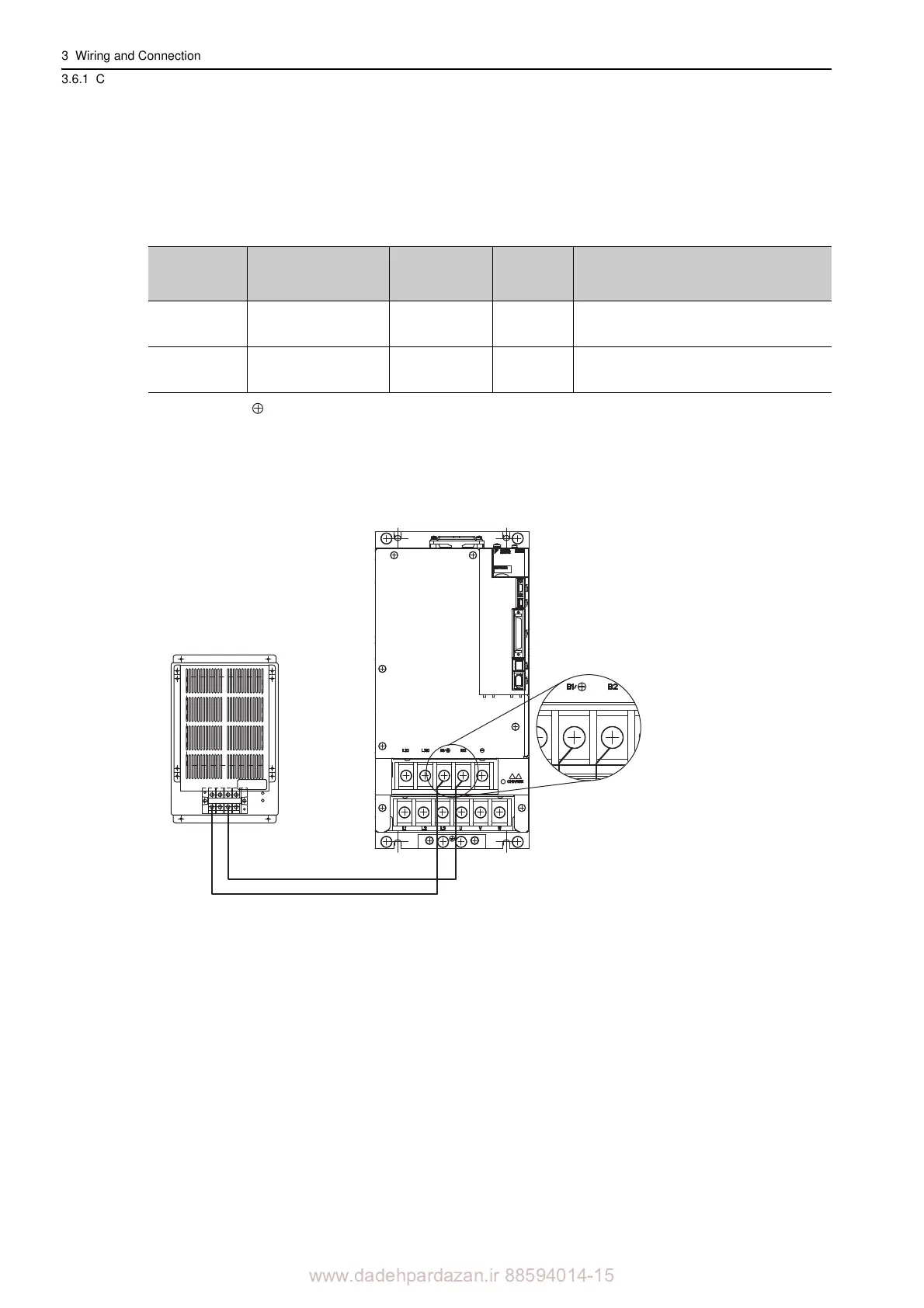

Connect the B1/ and B2 terminals of the SERVOPACK to the R1 and R2 terminals of the regenerative resis-
tor unit.
When using a regenerative resistor unit, leave Pn600 at its facto
ry setting. Set Pn600 when using a non-YAS-
KAWA external regenerative resistor.
Main Circuit
Power Supply
Applicable
SERVOPACK Model
SGDV-
Applicable
Regenerative
Resistor Unit
Resis-
tance (
)
Specifications
Three-phase 
200 V
550A JUSP-RA05-E
3.13
Eight 25 (220 W) resistors are connected
in par
allel.
Three-phase 
400 V
260D JUSP-RA18-E
18
Two series of two 18 (220 W) resistors
each ar
e connected in parallel.
Regenerative Resistor Unit
JUSP-RA-E
SERVOPACK
Analog

YASKAWA SGDV SERVOPACK Specifications

General

Model	SGDV
Type	SERVOPACK
Control Modes	Position, Speed, Torque
Communication Interface	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Vibration Resistance	5.9 m/s² (0.6G) at 10-60Hz
Shock Resistance	49 m/s² (5G)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Regenerative overload, Encoder error
