Modem Profiles Management Model Spectral Profiles
The Custom US PSD is used to customize the Upstream PSD Mask according to specific
requirements. To do so:
Define at least Two Sub-carrier frequencies.
Define the corresponding PSD Mask values.
NOTE: Custom US PSD Masks may be applied only to profiles set to VDSL2
transmission mode.

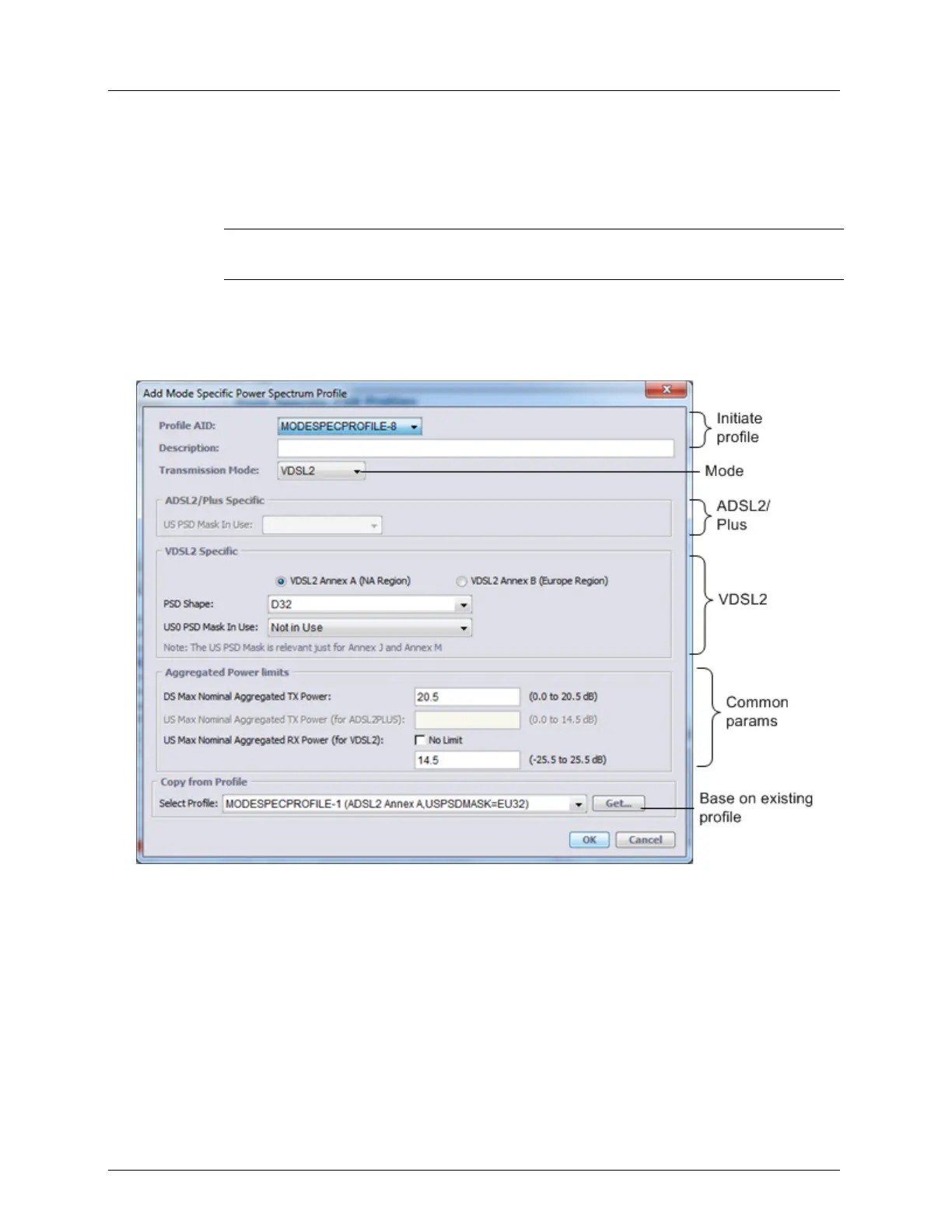

2. Click Add Profile. The Power Spectral Density Profile definition dialog appears.
The dialog supports ADSL2/Plus and VDSL2 parameters. As the Transmission mode is
selected (or the template profile is loaded using Select Profile), the relevant parameters
become available.
3. Configure Mode Specific PSD Profiles according to the following table and click OK to
save. The new profile will be listed in the Mode Specific glance pane. It will also be
removed from the list of available profile AIDs and added to the available profiles for use
as templates under the Copy from Profile option.
