Digital Analysis (QAM View OPT4): Quick Start
150
9
For experienced users of the Stealth Digital Analyzer, or for users familiar
with other types of digital analysis equipment, this section provides a brief
overview of the functionality of the SDA’s four digital modes. Use this section
to quickly begin analyzing aspects of the digital signal and refer to the
sections that follow for a more detailed review of each digital mode.
Selecting a Digital Analysis Mode
Select a Digital Analysis mode using the Navigator Menu or the
Measurement Mode keys.
Using the Navigator Menu

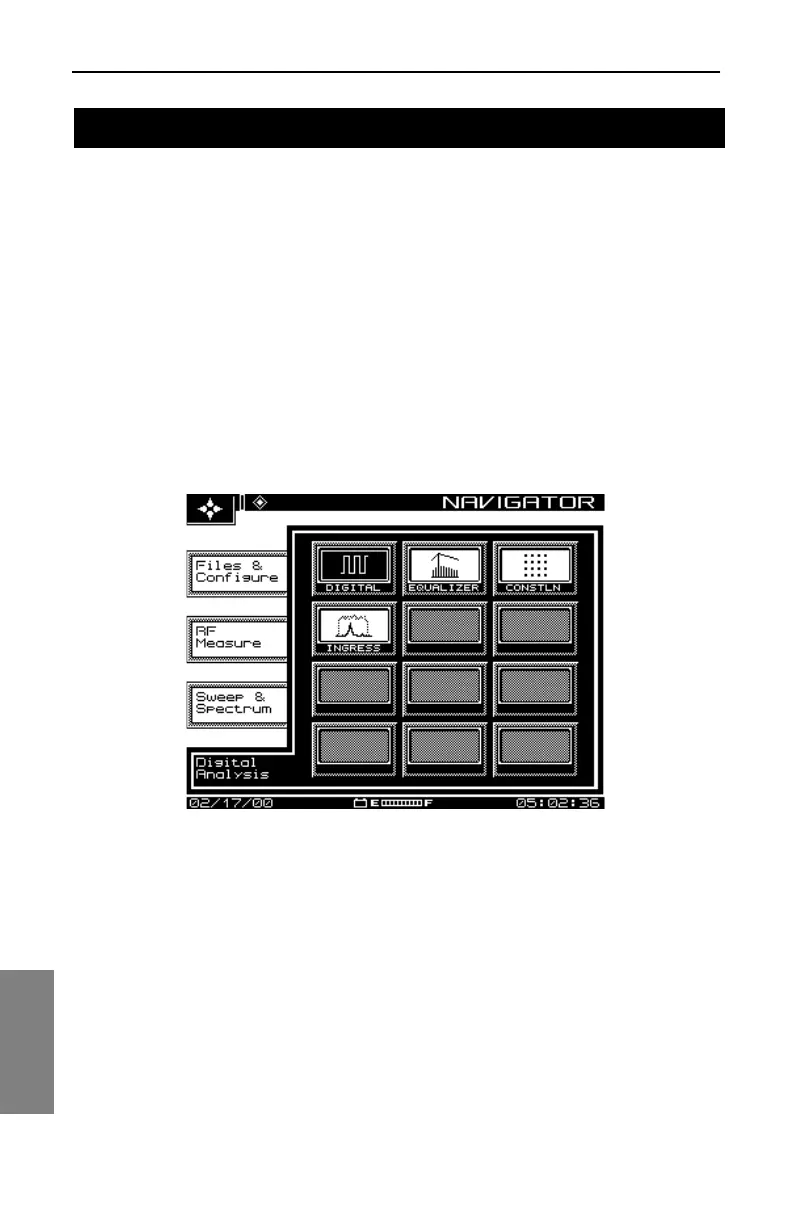

Fig. 9-1 Navigator Interface
To select one of the four Digital Analysis modes using the Navigator Menu,
press the Nav Support key, press the Digital Analysis softkey, use the
diamond keys to highlight the desired icon on the Navigator menu (see Fig.
9-1), and press the Enter key on the keypad.
Using the Measurement Mode Keys
The Measurement Mode keys (See Fig. 9-2) also provide convenient access
to the four Digital Analysis modes.
QUICK START
