Diagnostics
From the DIAGNOSTICS menu shown in Fig. 2-9, you can reset the
instrument to original factory configuration, test the LCD, or, when
applicable, check the field unit’s internal transmitter functions.
• Default to Factory Settings: Scroll to Default to Factory Settings and
press the Enter key to automatically set all parameters to the factory
default values. The changes will take effect after power is cycled.
CAUTION ! Executing this function will cause all saved
files, configurations, and memory to be lost.

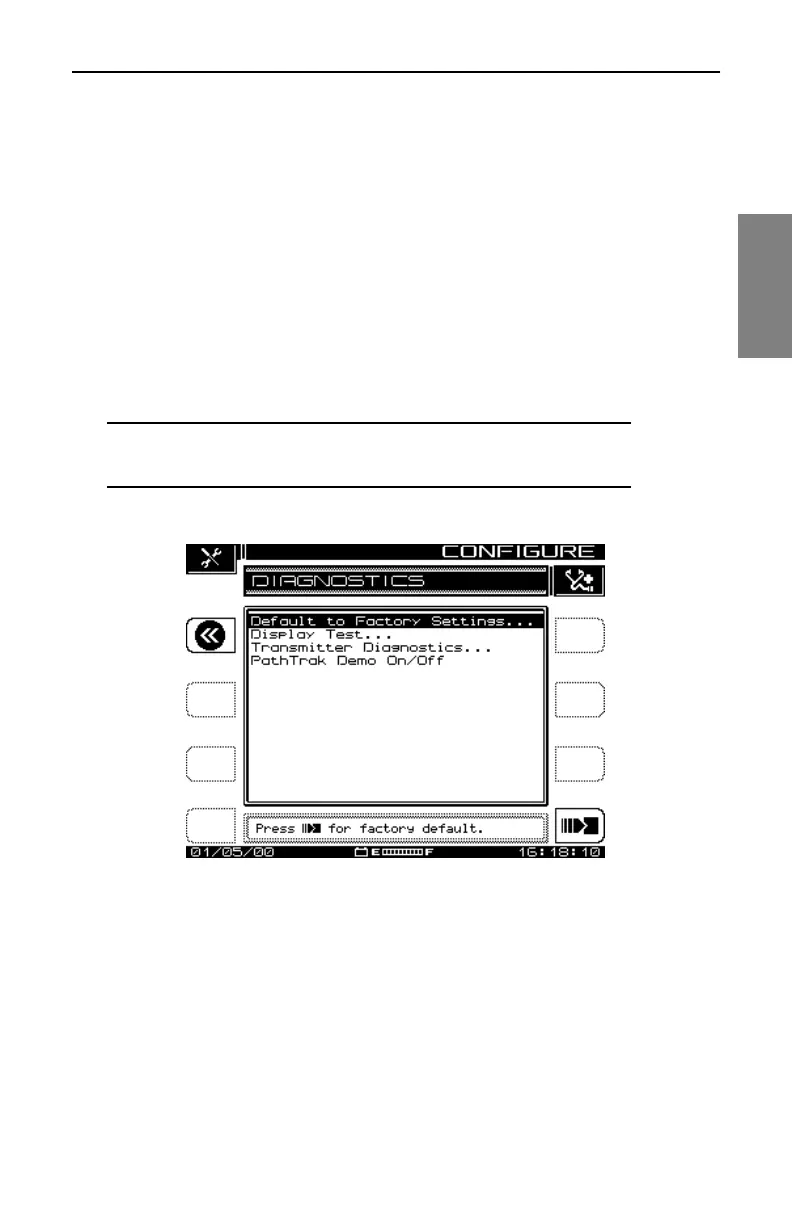

Fig. 2-9 The DIAGNOSTICS Menu
• Display Test: This option allows you to test the operation of the display.
Select Display Test and press the Enter key to call up the screen shown
in Fig. 2-10. This test merely checks the on/off properties of the screen.
You have two options, which operate as follows:
• Any left soft key toggles the screen on and off.
• Any right soft key moves to the previous screen.
