Automatic Test: Performing an Auto Test
184
10
screen shown in Fig. 10-3. If you are about to overwrite an
existing location, the following warning appears:
WARNING: A location with this name already exists.
Overwrite?

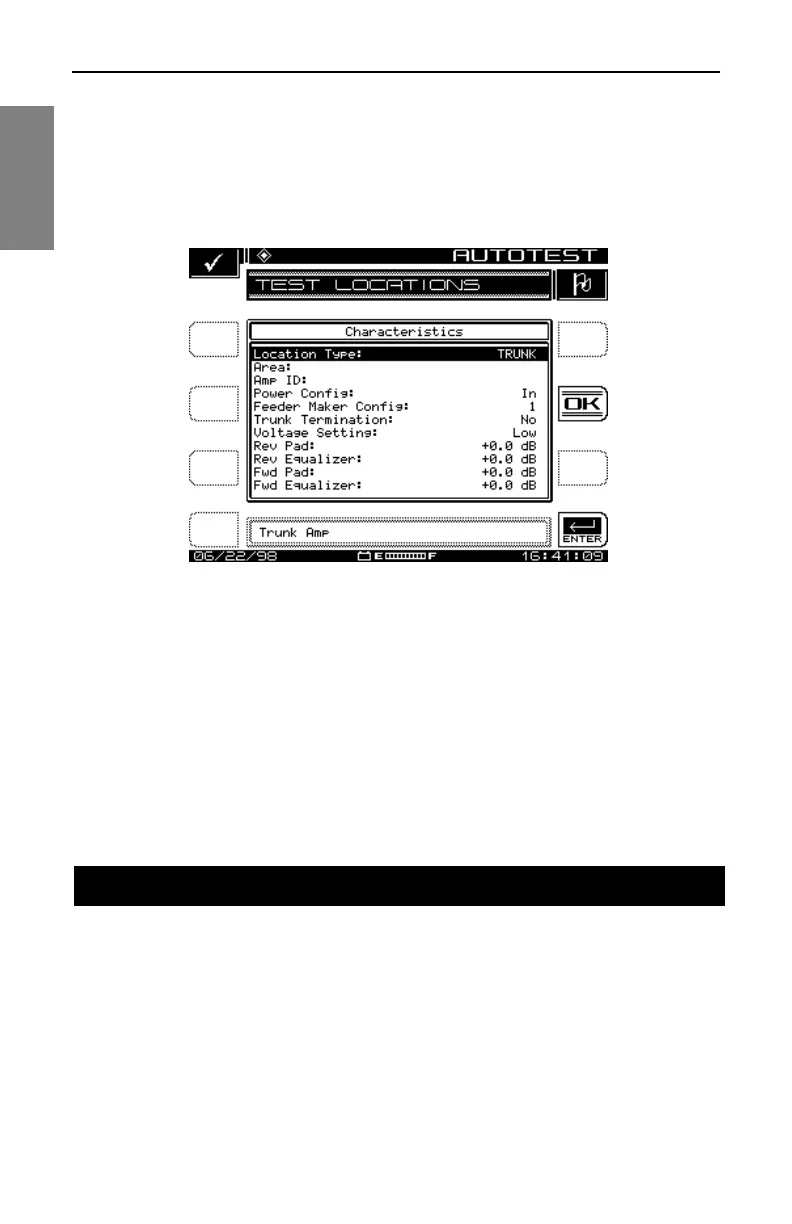

Fig. 10-3 Editing Test Location Characteristics
Scroll through the list of characteristics and make any
necessary adjustments.
When you are satisfied with the adjustments, press the OK soft
key and the display returns to the main TEST LOCATIONS
screen shown in Fig. 10-2.
Use the NAVIGATOR menu or press the Test support mode key, then use
the up and down diamond keys to select Perform Auto Test, and press any
soft key. You are now ready to configure the Auto Test.
Choose Location
Fig. 10-4 shows the CHOOSE LOCATION screen. At this screen you can log
information about the location at which you are performing the test. The
PERFORMING AN AUTO TEST
