Field Sweeping with the SDA-5000: Sweep Receiver Configuration
64
4

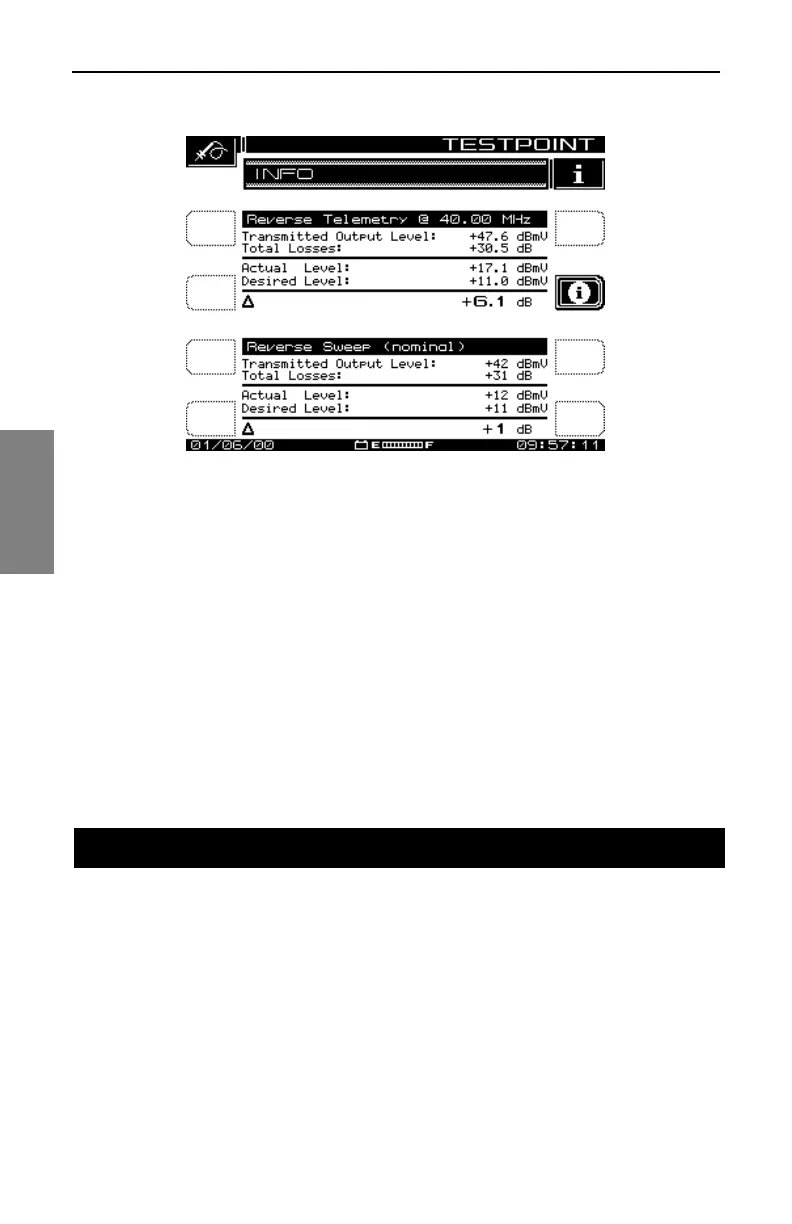

Fig. 4-4 Telemetry and Sweep Generation and Injection Levels
The sweep injection level is a nominal value that is not corrected for
transmitter calibration because more than one frequency is used for
the pulses. For this reason, it is displayed only to the nearest 2dB.
When test point compensation changes, the output level of the
transmitter changes automatically to keep the system level of the
injected pulses the same. For example, if the test point values in Fig.
4-3 changed to 25dB, the transmitted output levels would move to
approximately 47dBmV to keep the system levels close to the same.
This section covers the configuration for sweeping, and presents details of
using the various controls and indicators provided by the SDA-5000 to
improve your efficiency.
Sweep Configuration
The SWEEP menu of the CONFIGURE main menu enables you to establish
the operating parameters that you want for a specific sweeping application
(see Fig. 4-5). The first menu in this screen offers the options and choices
available in Stealth, Stealth (SDA COMPATIBLE), Transmit, Transmit (SDA
SWEEP RECEIVER CONFIGURATION
