• Reference level and scale
• Test point compensation (appears only if a nonzero value is programmed
during setup)

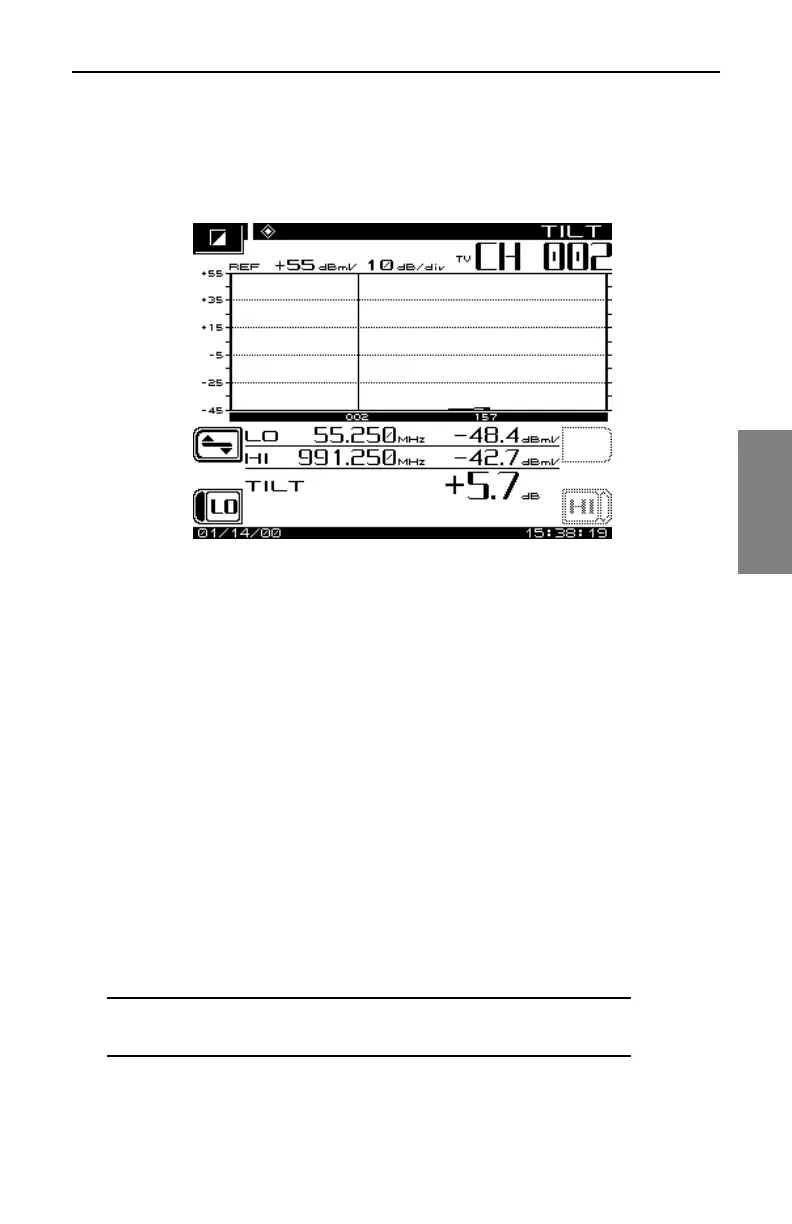

Fig. 13-8 The TILT Measurement Screen
When the TILT key is pressed the screen will automatically display up to
nine video carrier levels that were defined in the EDIT CHANNEL
PARAMETERS screen of the CHANNEL PLAN setup menu.
The up and down diamond keys can be used to adjust the graph's reference
level.
Level Adjustments
Press the LVL soft key to edit the scale and reference level of the Tilt display.
To adjust the scale, use the up and down arrow keys to select a scale that
will provide the best viewing of the Tilt levels.
To adjust the reference level, press the Ref Level soft key. The reference
level can be changed by using the up and down arrow keys or by entering a
numeric value followed by the Enter key. The reference level is at the top of
the graph.
NOTE: The reference value is limited by unit and the scale
setting.
