Field Sweeping with the SDA-5000: Considerations for Sweep in the Field
74
4

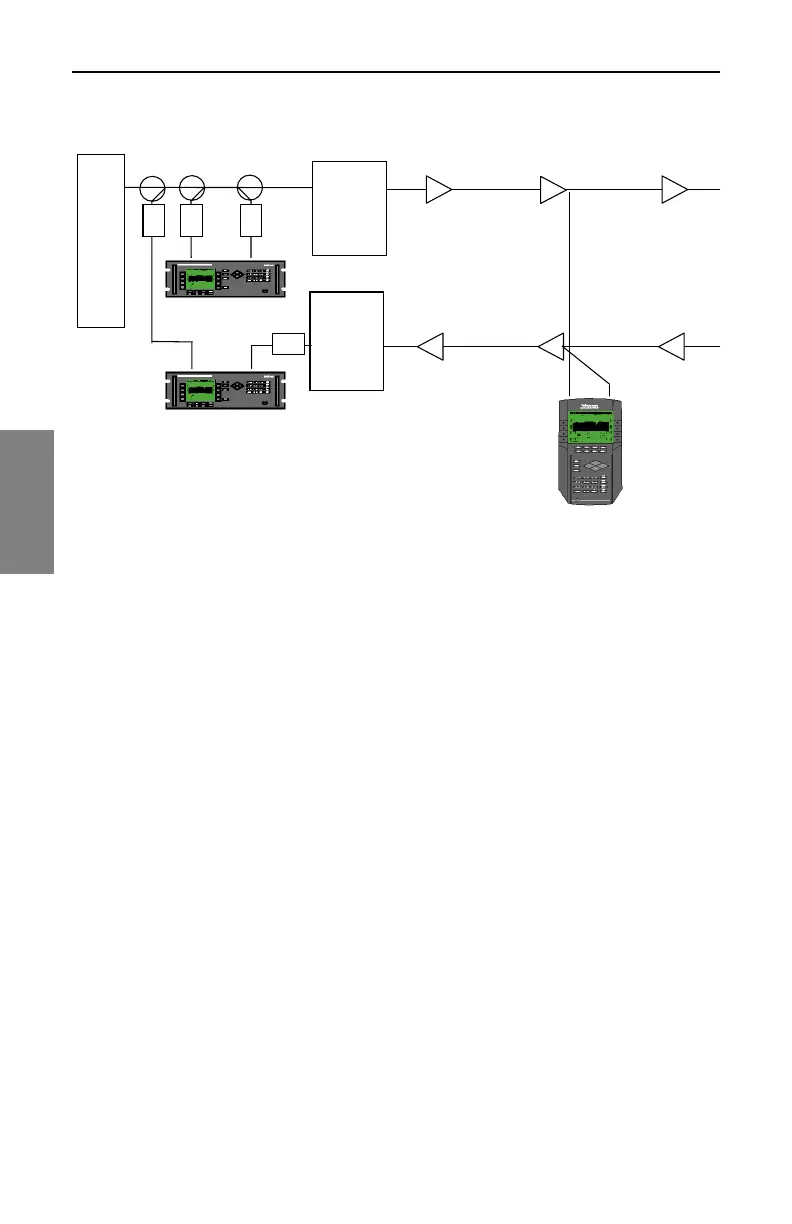

Fig. 4-9 Dual Cable Network Test Setup
The same information about levels and directional test points apply to a dual
cable network as to a split band network.
Sweep Setup
Before you attempt a sweep in the field, configure and check the settings
described in this section.
1. Call up the CONFIGURE menu (use either the Navigator or the
Configure (Function and 3 ghi) key on the keypad) and select
SWEEP from the list.
2. At the SWEEP menu, use the arrow keys to select Stealth mode if it is
not already selected. (Stealth will appear in the Edit Box when it’s
selected.)
3. Forward Telemetry Frequency: Use the up and down diamond keys or
the numeric keypad to enter the forward telemetry frequency
corresponding to that of the headend unit.
4. If you’re using reverse sweep (SDA-5000 OPT1), you need to
configure the following additional settings:
Combining Network
Lasers or
Distribution
Amps
OUT
IN
Forward Path Lines
Reverse Path Lines
OUT IN
Optical Rcvr
or
Combiners
IN
OUT
TP
TP
PAD
PAD
PAD
PAD
Note:
Pads may be omitted if not required
for proper levels.
Reverse path ALC must be turned off.
