Digital Analysis (QAM View OPT4): Constellation Mode
168
9

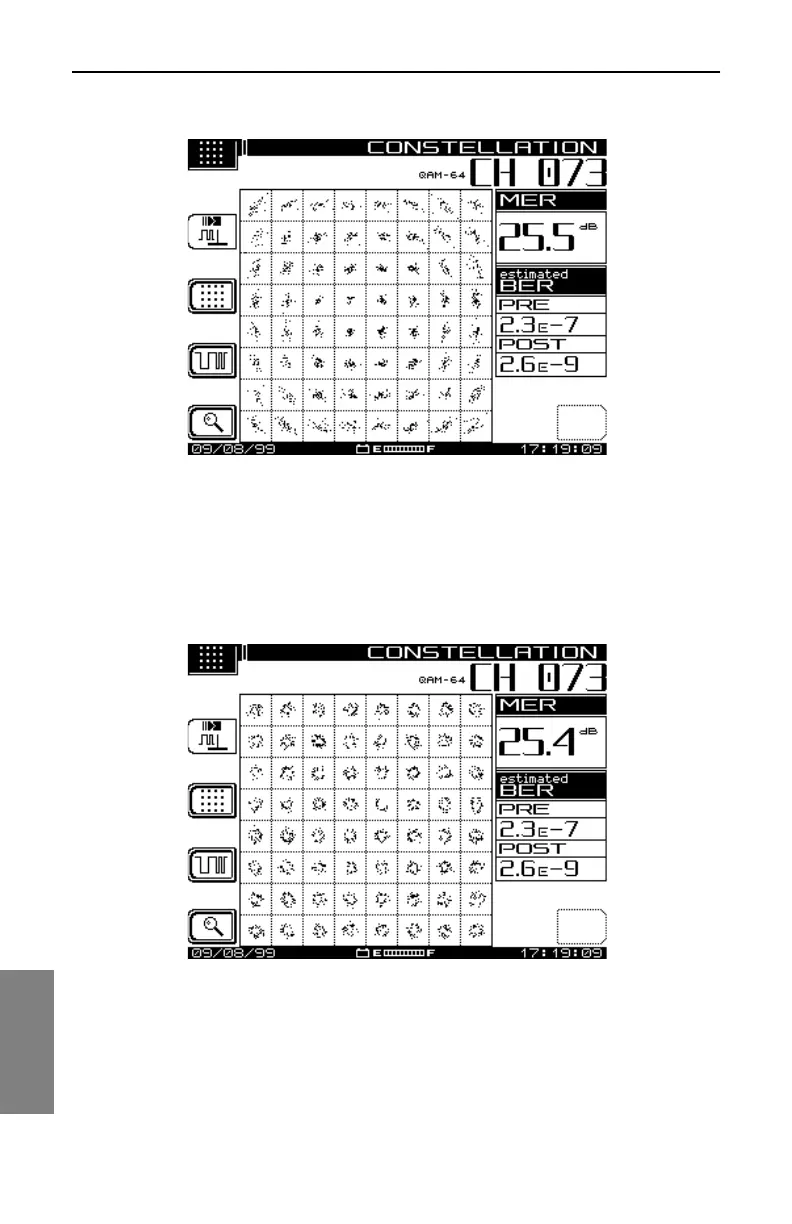

Fig. 9-13 Phase Noise Impairment
Coherent interference impairments -- such as CTB, CSO, and spurs --
cause the dots on the graph to cluster with an empty space in the middle
(see Fig. 9-14).
Fig. 9-14 Coherent Interference Impairment
