Description and Basic Operation of the SDA-5500 and 5510: Basic Modes of Operation
229
13
simultaneously. Alternatively, an individual carrier can be measured (as in
the case for a data or pilot carrier), or the unit can be tuned to a specific
frequency.
Information displayed in the Level mode is as follows (numbers correspond
to Fig. 13-7 callouts):
1. Channel number or frequency
2. Channel label (appears where indicated)
3. Video carrier frequency and level (numerical)
4. Audio carrier frequency and level (numerical)
5. Analog meter of carrier levels
6. Delta between audio and video levels
7. Type (TV, Single, Digital, or Dual)
8. Test point compensation, which appears only if a nonzero value is
programmed during setup, is used to eliminate the test point loss or
probe loss from the measurement result to show the signal level on
the system.

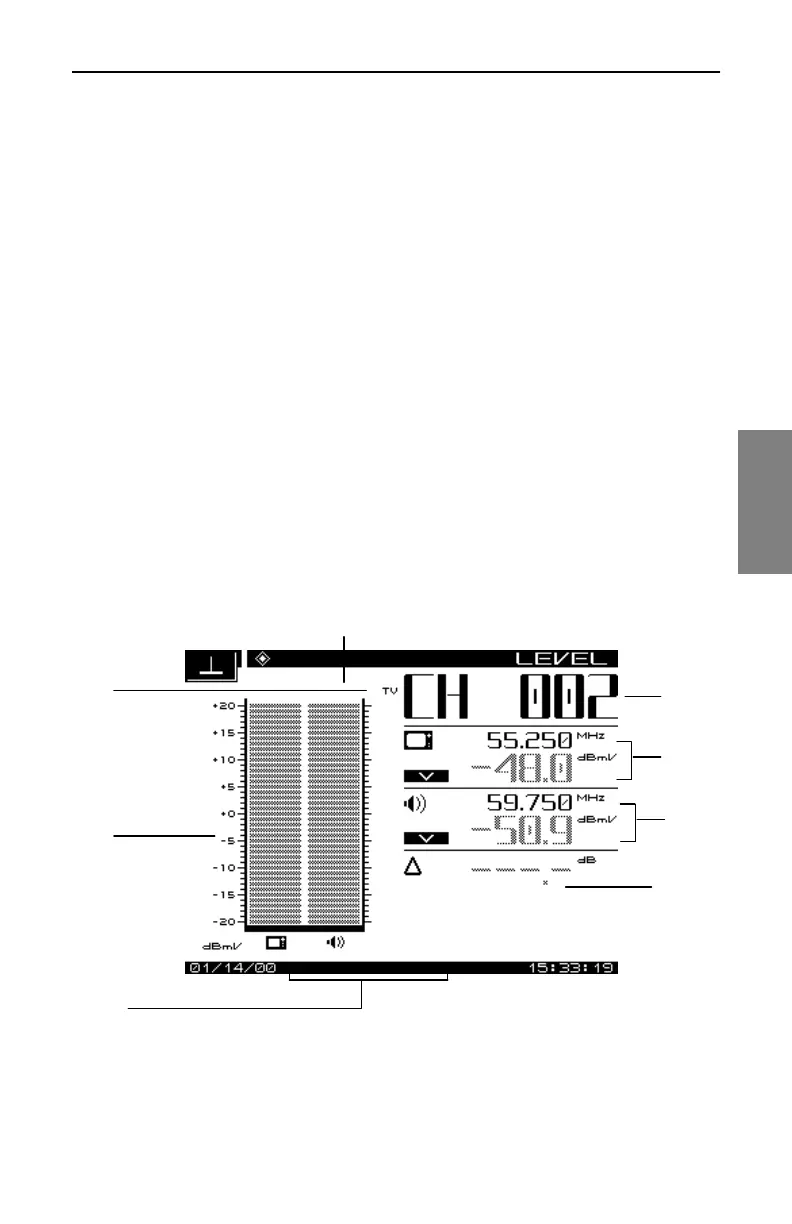

Fig. 13-7 The LEVEL Measurement Screen
1
2
3
4
8
6
5
