SDA-5500/SDA-5510 Sweep Configuration: Forward Sweep Configuration (SDA-5500)
268
14

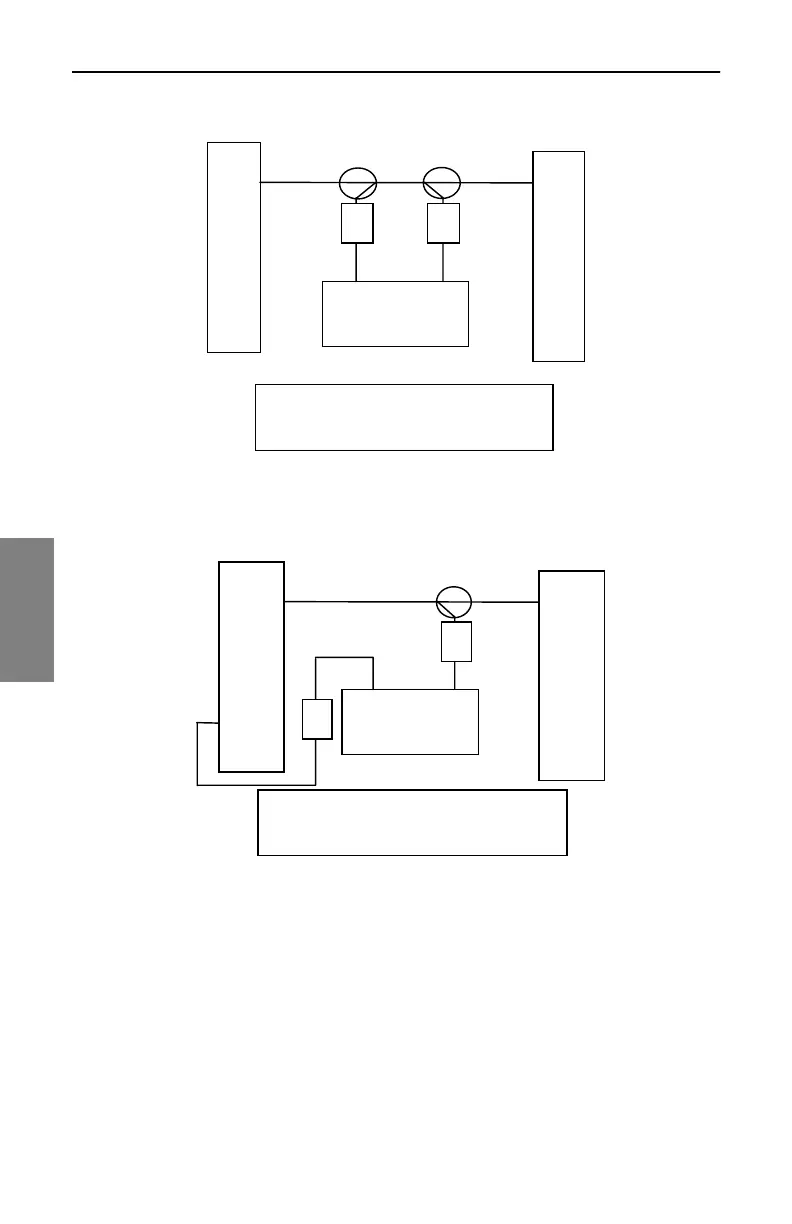

Fig. 14-1 Wiring for SDA-5500 Forward-only Sweep
Fig. 14-2 Wiring for SDA-5500 Forward-only Sweep
The SDA-5500 is quite flexible with regard to sweep insertion, in that the
sweep level relative to the other carriers is not extremely critical. A key
principle to keep in mind is that the transmitter measures the levels of the
video and audio carriers simultaneously to the receiver. It also measures its
own injected sweep carrier. In order to do this, the sweep must be injected
prior to the tap which samples the system signal for the transmitter’s
measurements.
Combining Network
Lasers / D istribution Amps
SDA
5500
OUT
IN
PAD
PAD
Note: Pads can be omitted if
they’re not needed for
proper levels.
Combining Network
asers/Distribution Amps
SDA
5500
OUT
IN
AD
PAD
Note: Pads can be omitted if they’re
not needed for proper levels.
