Total Access 5000 Business Services Deployment Guide
4-2 65K510DEP08-1A
EoCu Overview
Figure4‐1displaysanoverviewoftheEoCudeployment.

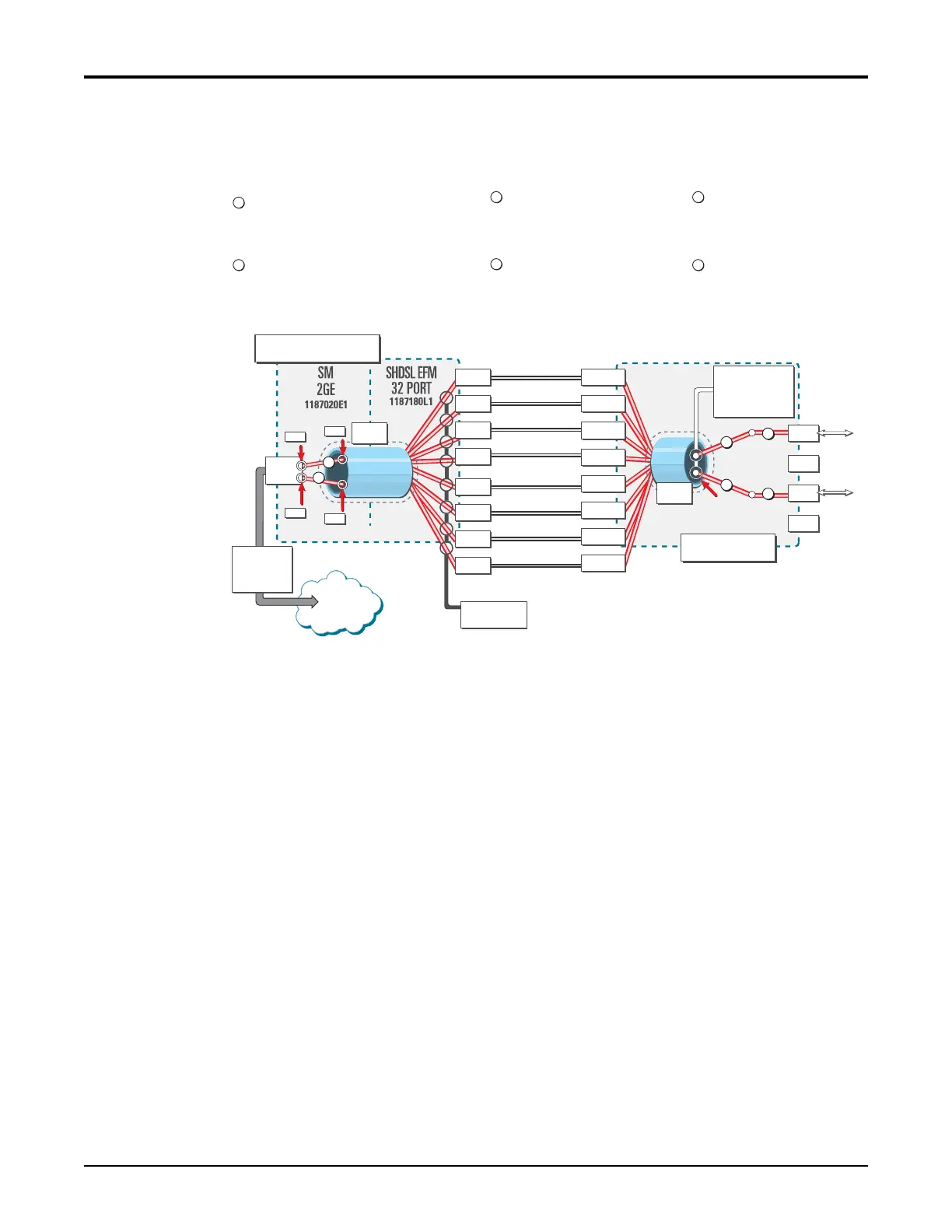

Figure 4-1. EoCu Diagram
1
Total Access 5000 “Cross Connect”
• End Point 1→ PORT, NET 1
• End Point 2→ Bridge, Bridge Group 1
• S-tag = 2010
2
Total Access 5000 “Cross Connect”
• End Point 1→ PORT, NET 1
• End Point 2→ Bridge, Bridge Group 1
• S-tag = 2020
4
NetVanta 838 Entities/Commands
EVC EVC-2020
MEN- PORT EFM-Group 1
S-tag 2020
3
NetVanta 838 Entities/Commands
EVC EVC-2010
MEN- PORT EFM-Group 1
S-tag 201
6
NetVanta 838 Entities/Commands
EVC-MAP MAP-2020
UNI ETH 3
Connect-EVC EVC-2020
5
NetVanta 838 Entities/Commands
EVC-MAP MAP-2010
UNI ETH 1
Connect-EVC EVC-2010
EoCu
System Diagram
SHDSL
SHDSL
SHDSL
SHDSL
SHDSL
SHDSL
SHDSL
SHDSL
Metro
Ethernet
Network
GigE VLAN
2010 +2020
Management
VLAN 2048
1
2
Bridge Group
“Phycical Links”
PORT 2
PORT 1
PORT 4
PORT 3
PORT 6
PORT 5
PORT 8
PORT 7
Bridge
Group #1
MAP 2010
MAP 2020
Available EVC’s and
Management VLAN
Pushed Down by
Total Access 5000
Bridge Group #1
3
4
6
5
EVC 2020
ETH 1
ETH 2
ETH 3
ETH 4
EFM
Group #1
VLAN
2020
VLAN
2010
SHDSL #1
SHDSL #2
SHDSL #3
SHDSL #4
SHDSL #5
SHDSL #6
SHDSL #7
SHDSL #8
Total Access 5000
EP2
EP1
EP1
EP2
NetVanta 838
NET 1
