ADTRAN TA 5000 User Manual

Appendix B, SHDSL Rate Reach Information - Bonded 49-self Reach for a Minimum Rate of 10Mbps
65K510DEP08-1A B-3
Bonded 49-self Reach for a Minimum Rate of 10Mbps
FigureB‐3displaysabondedmulti‐pairdeploymentreachonAWG24(rates>10Mbps).

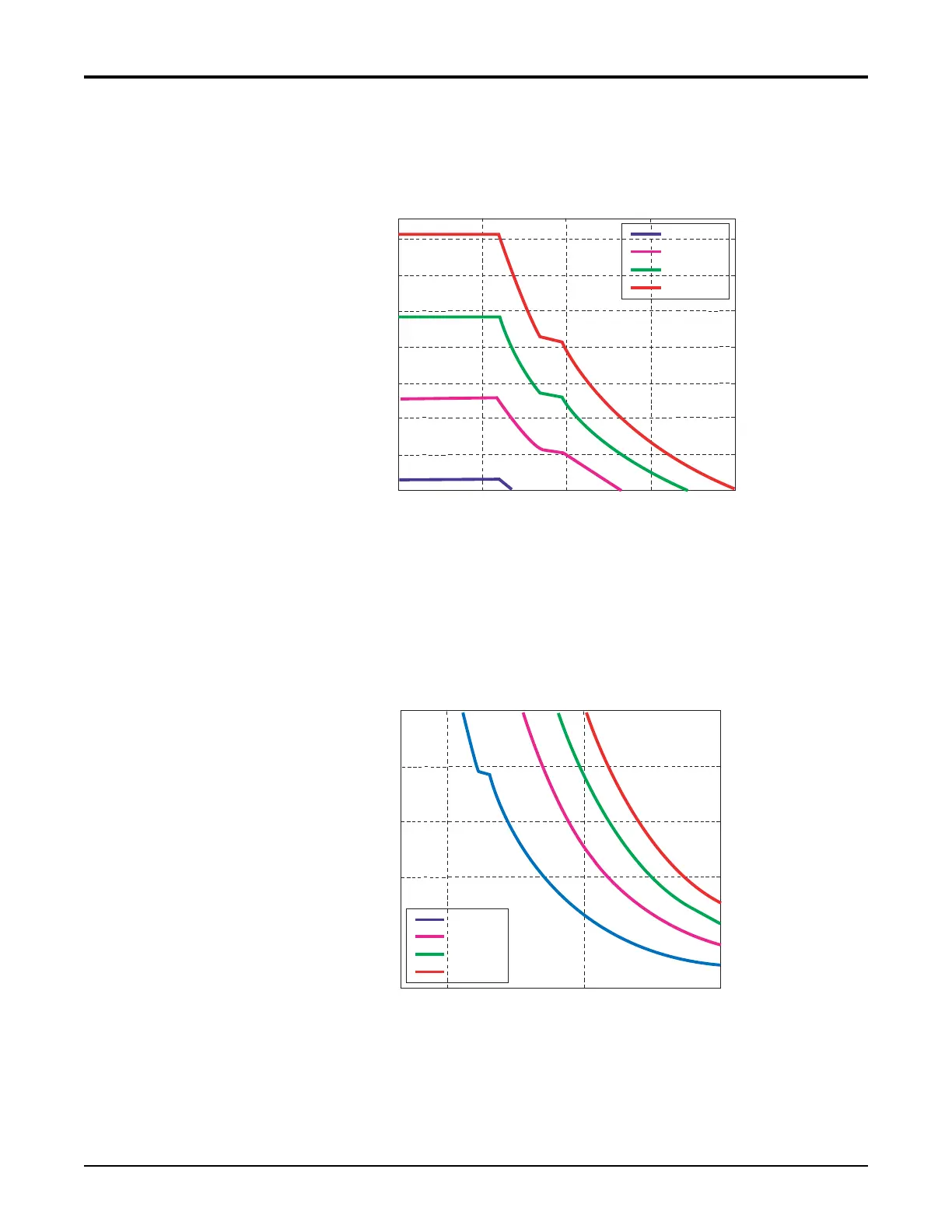

Figure B-3. Bonded Multi-pair Deployment Reach on AWG24 (rates >10Mbps)
Bonded 49-self Reach for a Maximum Rate of 10Mbps
FigureB‐4displaysabondedmulti‐pairdeploymentreachonAWG24(rates<10Mbps).
Figure B-4. Bonded Multi-pair Deployment Reach on AWG24 (rates <10Mbps)
Rate (Mbps)
0
3
6
9
2-pairs
4-pairs
6-pairs
8-pairs
45
40
35
30
25
20
15
10
Bonded
49-self reach for a min. rate of 10Mbps
Reach (kft of AWG24)
2-pairs
4-pairs
6-pairs
8-pairs
49-self reach for a max. rate of 10Mbps
Bonded
10
0
0
3
6
9
12
15
18
21
2
4
6
8
Reach (kft of AWG24)
Rate (Mbps)
