Rockwell Automation Publication 193-UM015E-EN-P - October 2015 181
Operating Modes Chapter 5
Timing Diagram

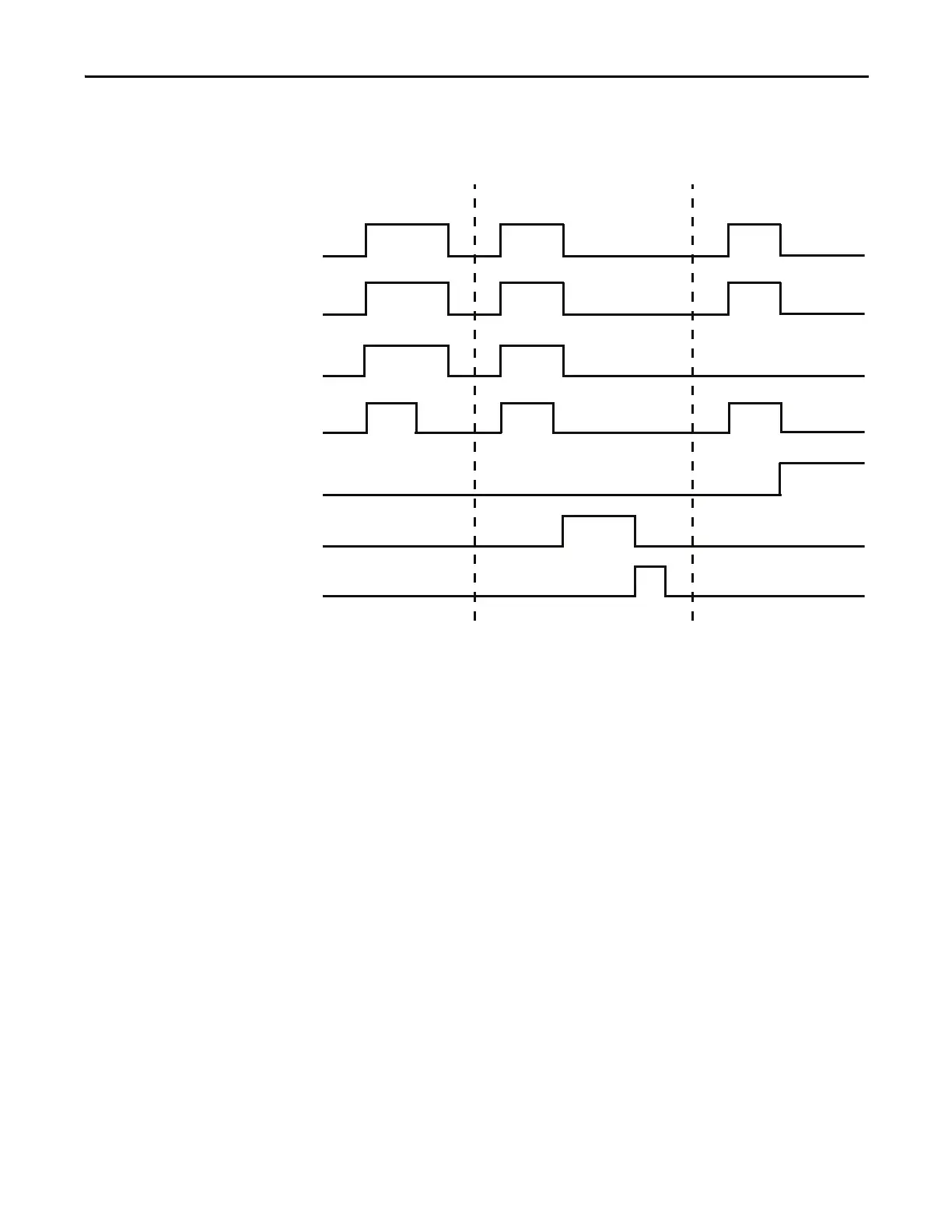

Figure 87 - Non-reversing Starter (Local I/O) – Two-wire Control with Feedback Timing Diagram
Non-reversing Starter (Local I/O) – Three-wire Control
The E300 relay’s Operating Mode Non-Reversing Starter (Local I/O) – Three
Wire Control (Parameter 195 = 38) uses an active state in Input 1 (normally open
momentary push button) to energize Output Relay 0, which controls the
contactor coil, and a de-active state in Input 0 is used (normally closed push
button) to de-energize Output Relay 0. Both Input 0 and Input 1 are momentary
values, so the non-reversing starter only energizes if Input 0 is active and Input 1 is
momentarily active.
The reset button of the E300 Operator Station is enabled for this operating
mode.
Rules
1. Available for Control Module firmware v5.000 and higher.
2. Output Pt00 Assignment (Parameters 202) must be set to Control Relay.
3. Overload Trip must be enabled in TripEnableI (Parameter 183).
4. Communication Fault & Idle Override (Parameter 346) must be enabled.
5. Network Fault Override (Parameter 347) must be enabled.
Trip Event Feedback TimeoutNormal Operation
Run/Stop
Relay 0
Timer
Feedback
Timeout Trip
Trip Status
Trip Reset
Feedback
