76 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 3 Diagnostic Station
Automatic Trip and Warning
Screens

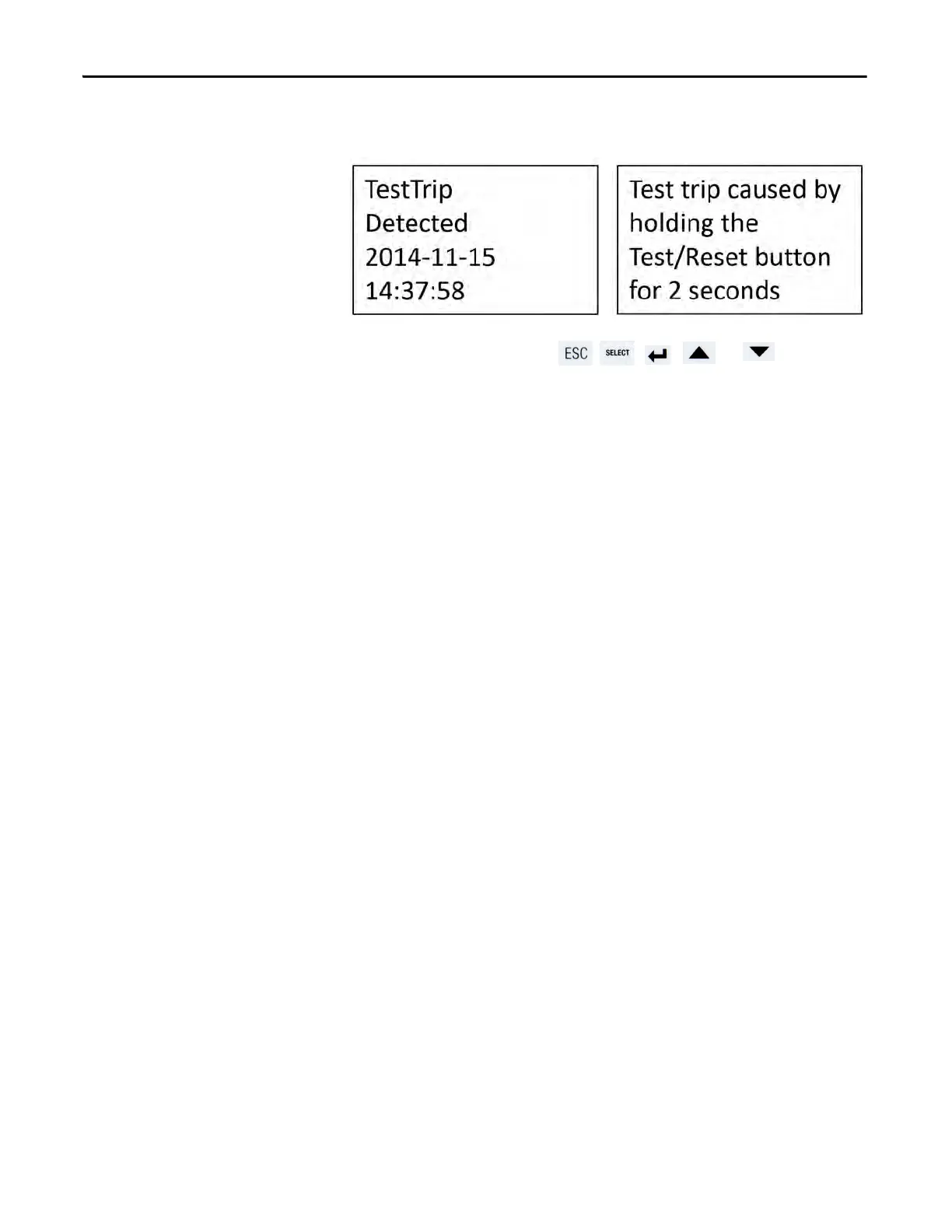

When the E300 relay is in a trip or warning state, the E300 Diagnostic Station
automatically displays the trip or warning event.
Press any of the navigation keys ( , , , , or ) to return to
the automatic display sequence.
When the trip or warning event clears, the E300 Diagnostic Station
automatically returns to its programmable display sequence.
If another parameter is displayed and you do not press any navigation keys for a
period that Display Timeout (Parameter 436) defines, the Diagnostic Station
automatically returns to the trip or warning screen if the trip or warning event is
not cleared.
