Allen-Bradley E300 User Manual

562 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 10 EtherNet/IP Communication
Setting the IP Network
Address
The E300 relay EtherNet/IP Communication Module ships with DHCP
enabled. You can set the network Internet Protocol (IP) address by using:
• The EtherNet/IP node address selection switches
• A Bootstrap Protocol (BOOTP)/Dynamic Host Configuration Protocol
(DHC
P) server (for example, the Rockwell Automation BOOTP-DHCP
Server Utility, which is included with Rockwell Software's RSLinx Classic
software)
• A web browser and MAC scanner software
EtherNet/IP Node Address Selection Switches
The E300 relay EtherNet/IP Communication Module comes with three node
address selection switches that allow you to select the last octet for the IP address
192.168.1.xxx.
When the node address selection switches are set to a value greater than 255
(excluding 888), the IP address is set to DHCP Enabled or programmed for a
static IP address.A power cycle is required for any selection changes to take effect.
Node Address Function
001 - 254 Set IP Address to 192.168.1.xxx
255 - 887
889 - 999
Set IP Address via DHCP or use static IP Address
888 Reset to factory defaults
000 Administration mode
EXAMPLE
When the left dial is set to 1, the middle dial is set to 2, and the right dial is set
to 3, the resulting IP address is: 192.168.1.123.

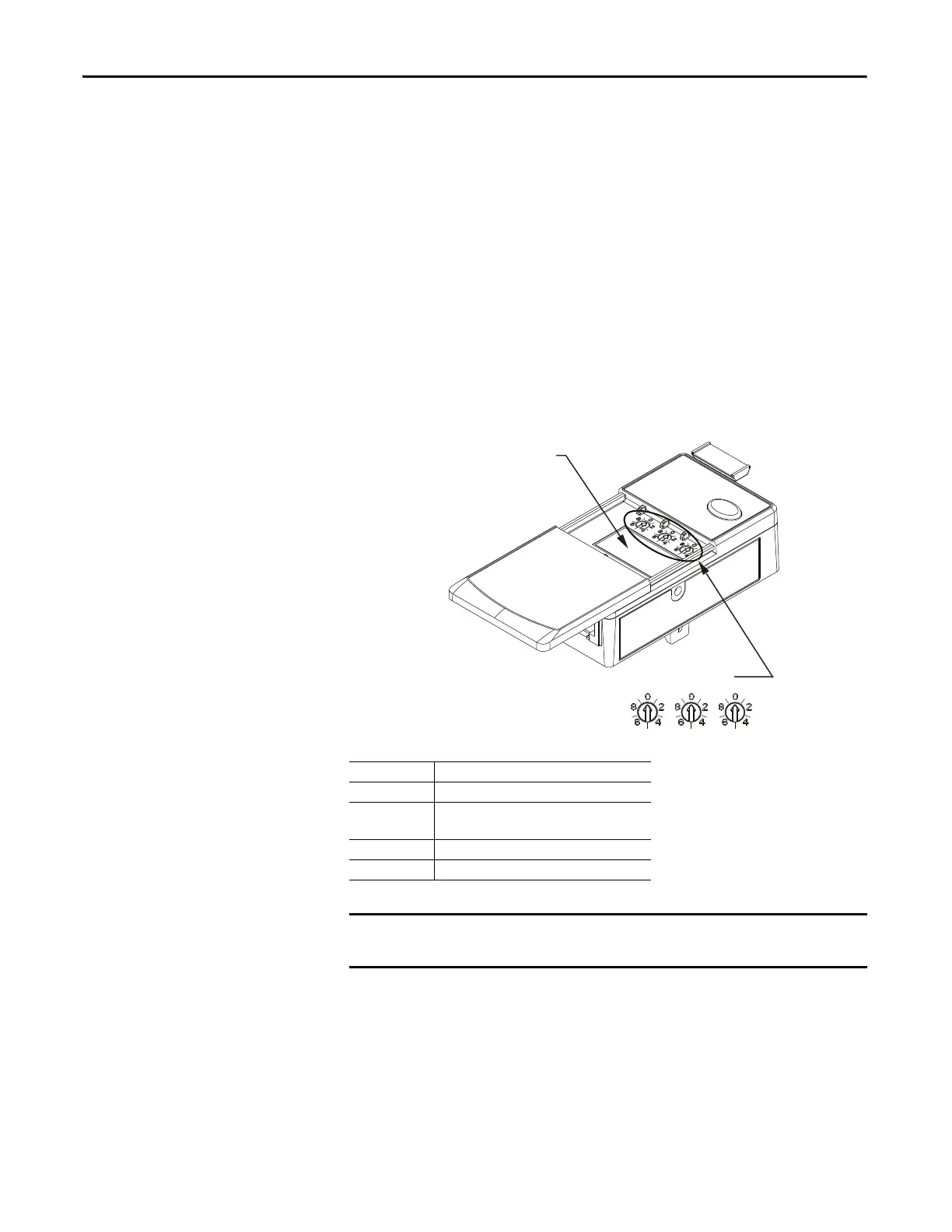

Node Address
x100 x10 x1
Network Information
- MAC Id
- Serial Number
- Firmware Revision

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
