Pass-thru Modules
Dimensions
Approximate dimensions are shown in millimeters. Dimensions are not intended
to be used for manufacturing purposes.

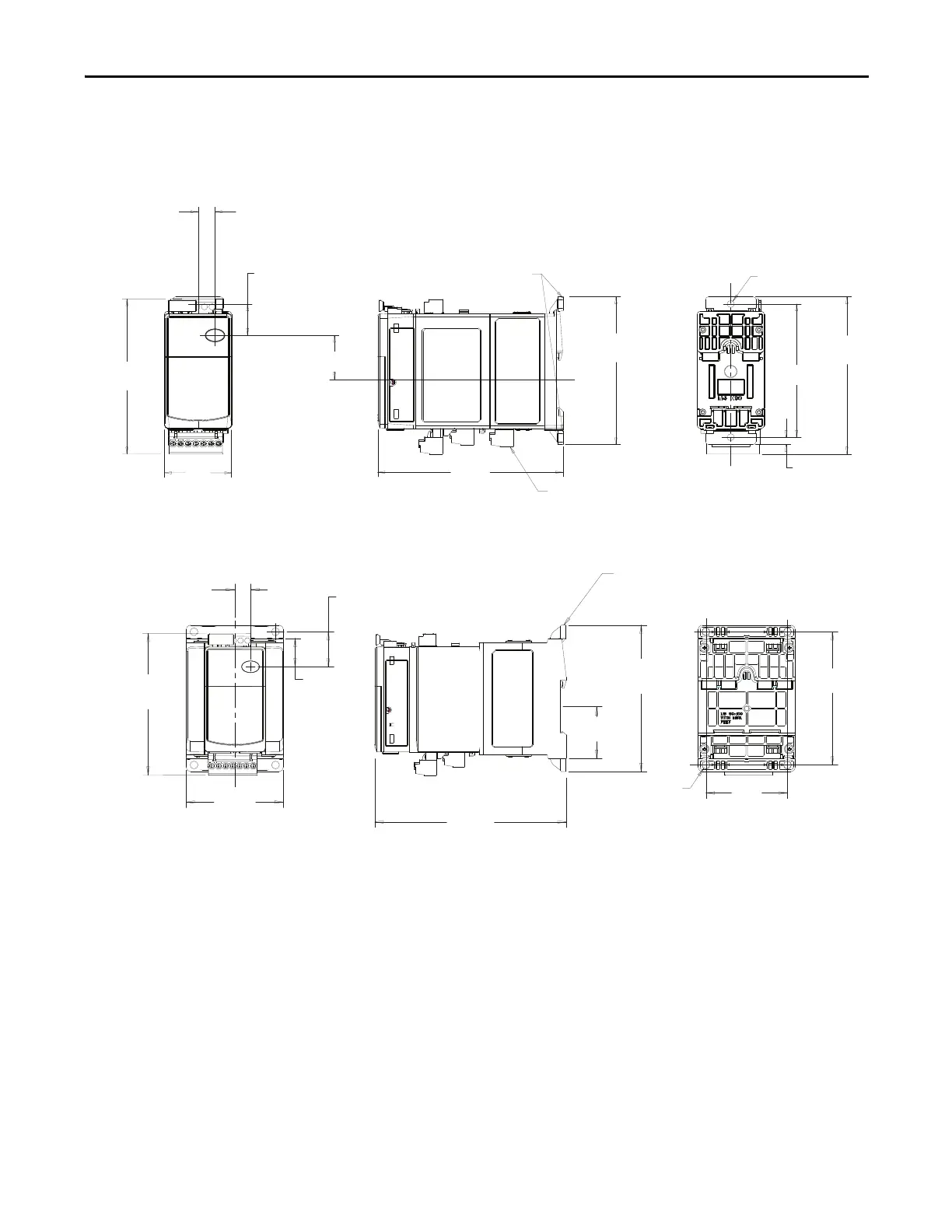

Figure 32 - E300 Sensing Module 193-ESM-___-30A-P, 193-ESM-___-60A-P, and
193-ESM-VIG-30A-CT
Figure 33 - E300 Sensing Module 193-ESM-___-100A-P
91.5
(3.60)
102
(4.00)
w/ mtg. feet
108
(4.25)
w/ mtg. feet
n 4.8
(0.19)
106.3
(4.18)
w/o mtg. feet
123.5
(4.86)
45
(1.76)
11.35
(0.45)
from mounting foot
mounting hole to
reset button
30.2
(1.19)
5
(0.20)
shown with panel mount feet acessory
Cat. No. 140M-CN-45
q
3-pin connector only with
Cat. No. 193-ESM-VIG-30A-CT
21.5
(0.85)
from mounting foot
mounting hole to
reset button
140.9
(5.55)
11.6
(0.46)
26.3
(1.04)
with feet
109.9
(4.33)
with feet
60
(2.36)
100
(3.94)
n 5.8
(0.23)
38.8
(1.53)
21.4
(0.84)
w/o feet
71.6
(2.82)
q
q
shown with panel mount accessory
feet Cat. No. 193-ESM-SA-100
106.3
(4.18)
w/o mtg. feet

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
