186 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes
Timing Diagram

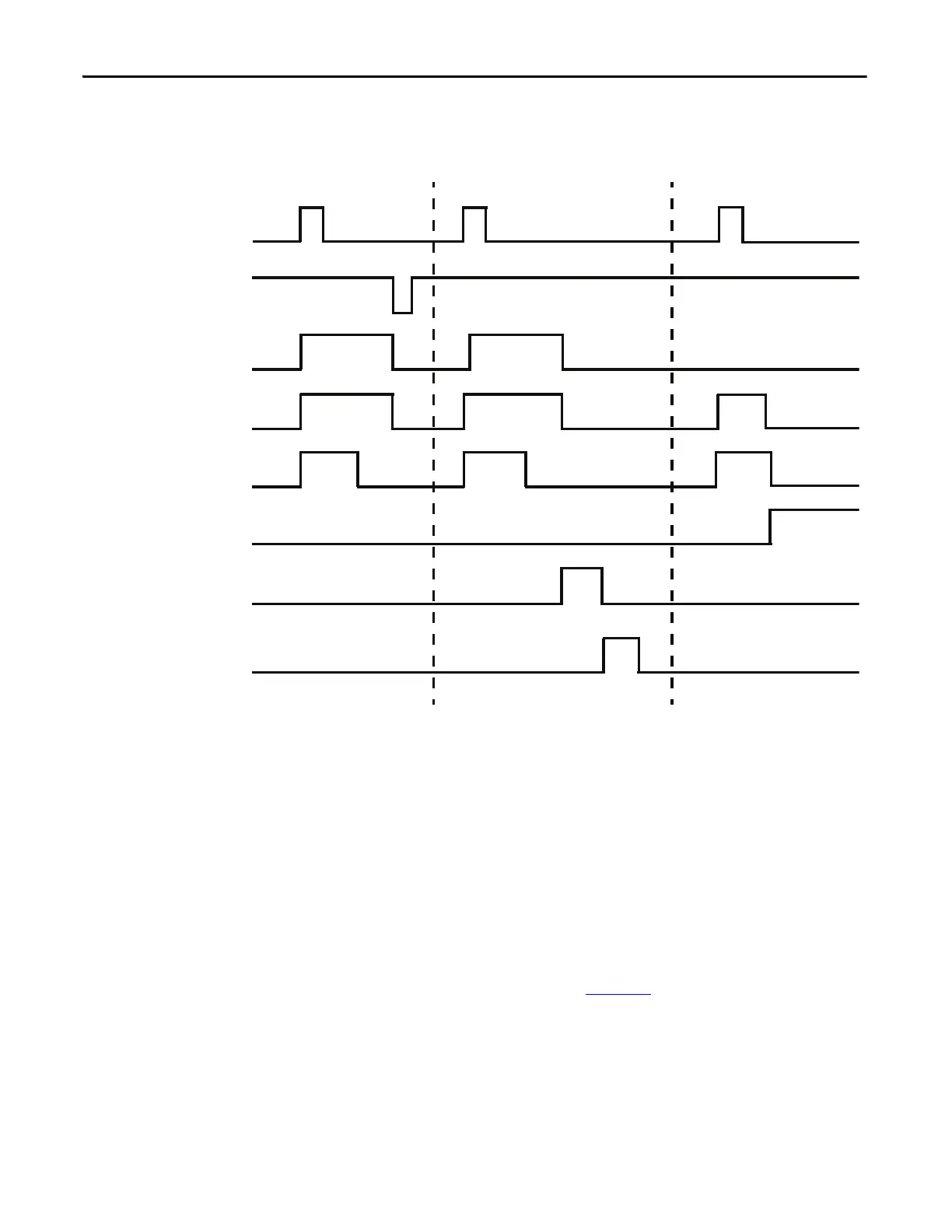

Figure 93 - Non-reversing Starter (Local I/O) – Three-wire Control with Feedback Timing Diagram
Non-reversing Starter (Network & Operator Station)
The E300 relay’s Operating Mode Non-Reversing Starter (Network& Operator
Station) (Parameter 195 = 11) uses the network tag LogicDefinedPt00Data in
Output Assembly 144 in Remote control mode and the E300 Operator Stations
“I” and “0” keys in Local control mode to control Relay 0, which controls the
contactor coil. LogicDefinedPt00Data is a maintained value, so the non-
reversing starter remains energized when LogicDefinedPt00Data has a value of 1
in Remote control mode. You can program the appropriate state of the starter
when communication is lost in Remote control mode by using the Network
Communication Fault and Network Communication Idle parameters
(Parameters 569 – 573) described in Chapter 4
.
The E300 Operator Stations “I, “0”, and “Local/Remote” keys are momentary
push buttons. Press and release the “I” button in Local control mode to energize
the starter. Press and release the “0” button in Local control mode to de-energize
the starter.
Trip Event Feedback Timeout
Start
Stop
Feedback (IN0)
Relay 0
Timer
Feedback
Timeout Trip
Trip Status
Trip Reset
