Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 245
Operating Modes Chapter 5

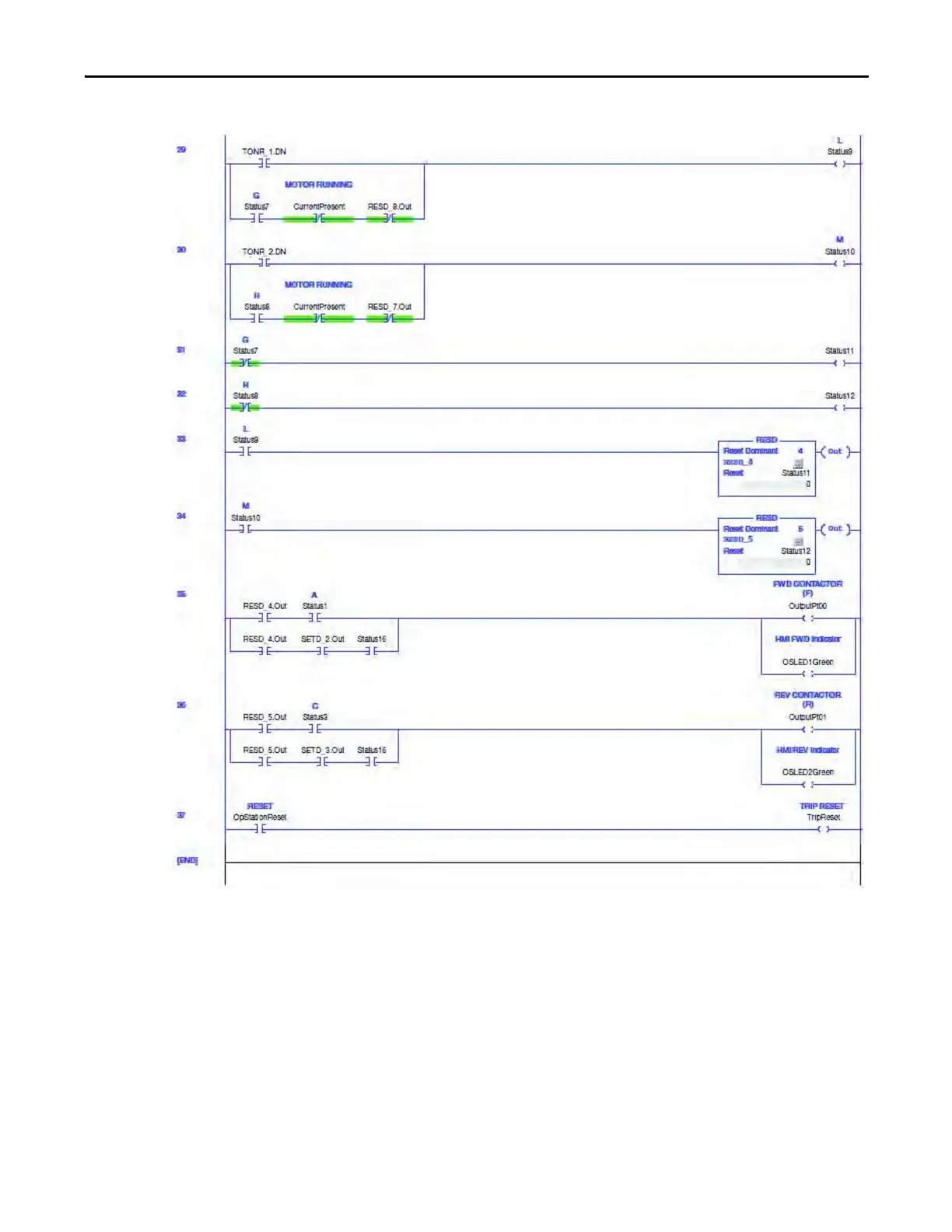

Figure 150 - Reversing Starter (Network & Operator Station) DeviceLogix Program, Part D
Reversing Starter (Network & Local I/O) – Two-wire Control
The E300 relay’s Operating Mode Reversing Starter (Network& Operator Station)
(Parameter 195 = 20) in Remote control mode uses network tags
LogicDefinedPt00Data in Output Assembly 144 to control Relay 0, which
controls the forward contactor coil, and LogicDefinedPt01Data in Output
Assembly 144 to control Relay 1, which controls the reversing contactor coil.
Both LogicDefinedPt00Data and LogicDefinedPt01Data are maintained values,
so the reversing starter remains energized when LogicDefinedPt00Data or
LogicDefinedPt01Data has a value of 1. You can program the appropriate state of

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
