Rockwell Automation Publication 193-UM015E-EN-P - October 2015 55
Installation and Wiring Chapter 2
Expansion Power Supply

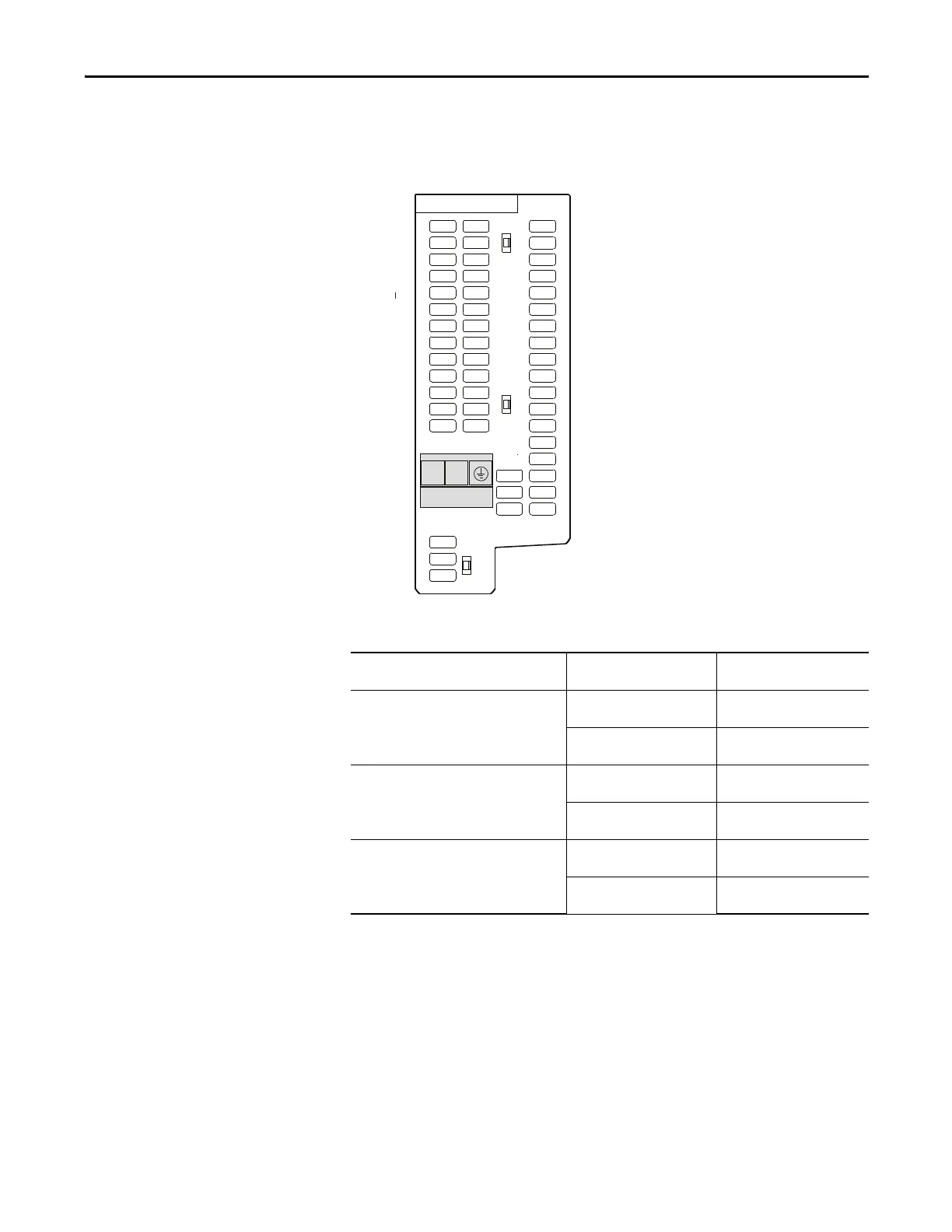

Figure 46 - E300 Expansion Power Supply Terminal Designations
Table 8 - E300 Expansion Power Supply Wire S
ize and Torque Specifications
Wire Type Conductor Torque Cat. No.
193-EXP-PS-_ _
Stranded/Solid [AWG] Single 24...12 AWG
5 lb-in
Multiple
(stranded only)
24...16 AWG
5 lb-in
Flexible-Stranded with Ferrule Metric Single 0.25…2.5 mm
2
0.55 N•m
Multiple
(stranded only)
0.5...0.75 mm
2
0.55 N•m
Coarse-Stranded/Solid Metric Single 0.2...2.5 mm
2
0.55 N•m
Multiple
(stranded only)
0.2...1.5 mm
2
0.55 N•m
A1 A2
