Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 75
Diagnostic Station Chapter 3

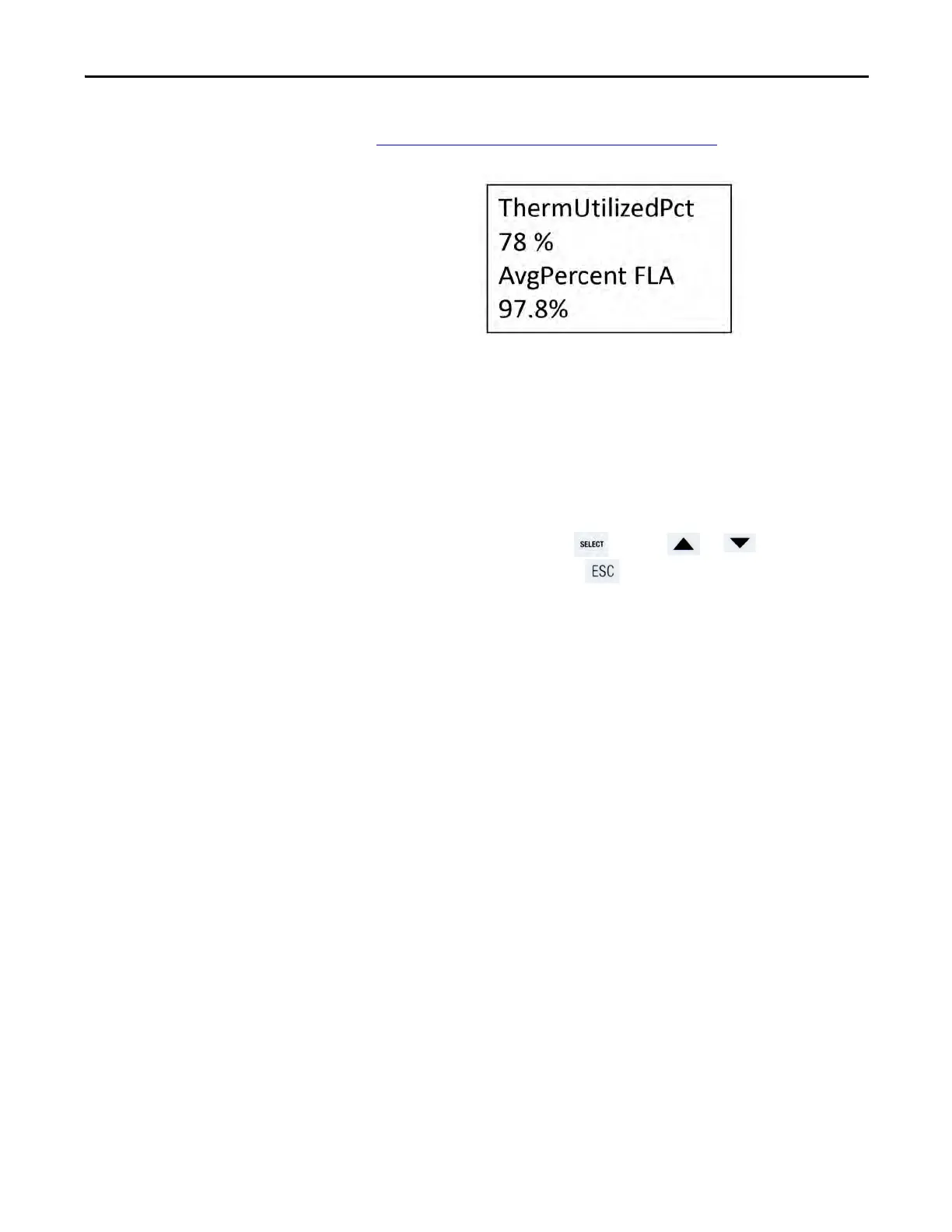

The user-defined screens allow you to select up to two parameters per screen.
See Diagnostic Station User-defined Screens on page 114
to configure the
Screen# and Parameter# (Parameters 428…435).
If you do not press any navigation keys for a period that Display Timeout
(Parameter 436) defines, the Diagnostic Station automatically cancels any editing
modifications, restores the previous value, and returns to its programmable
display sequence.
Stopping the Display Sequence
To stop the display sequence, press . Use the or keys to manually
sequence through the displays. Press to return to the automatic display
sequence.
If you do not press any navigation keys for a period that Display Timeout
(Parameter 436) defines, the Diagnostic Station automatically returns to its
programmable display sequence.

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
