Allen-Bradley E300 User Manual

70 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 3 Diagnostic Station

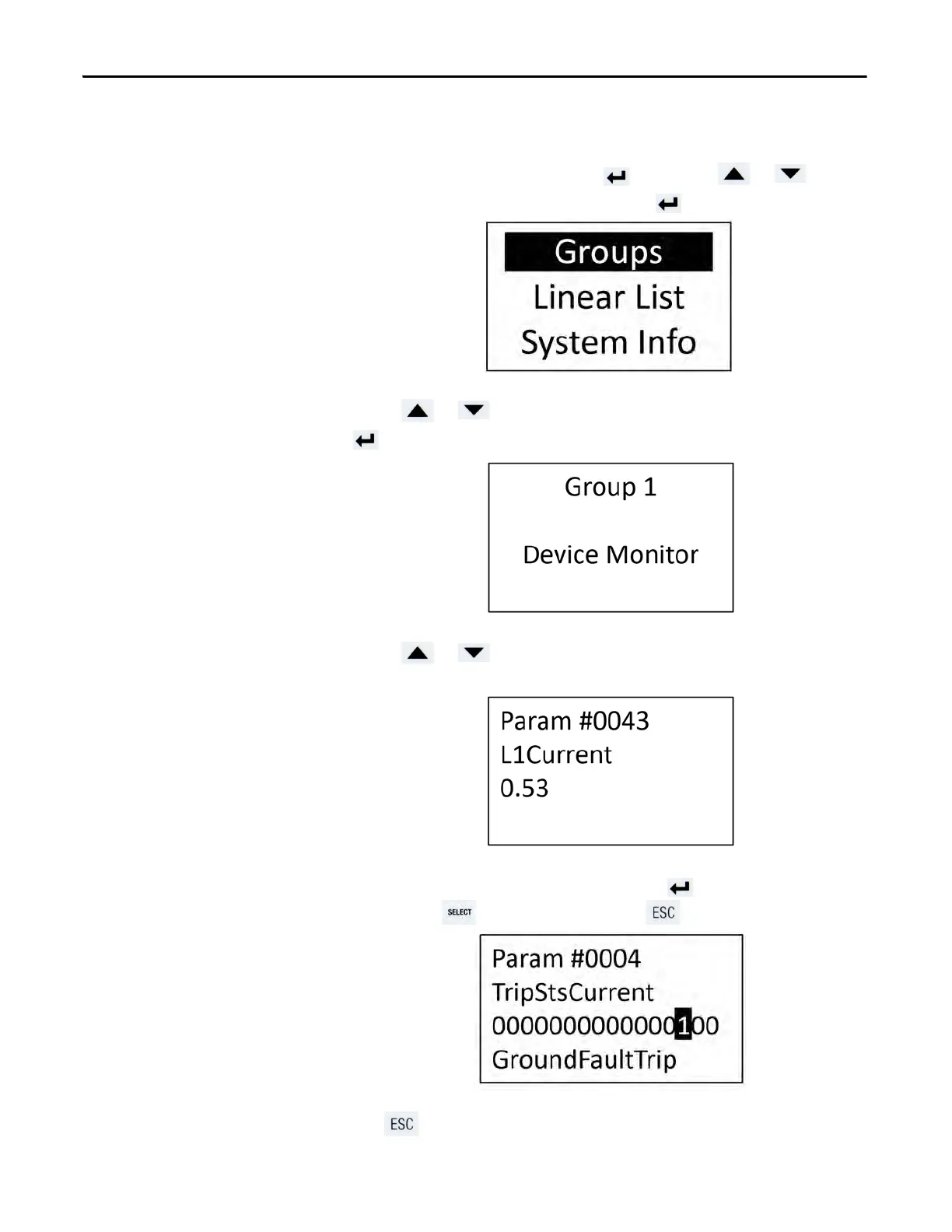

Parameter Group Navigation
To start the navigation menu, press the key. Use the or keys to
select the Groups navigation method and press .
Use the or keys to select the parameter group to display and press
.
Use the or keys to view the parameters that are associated with that
group.
When viewing a bit enumerated parameter, press to view the description of
each bit. Press to view the next bit. Press to return to the parameter.
Press to return to the parameter group navigation system.

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
