178 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes
Timing Diagram

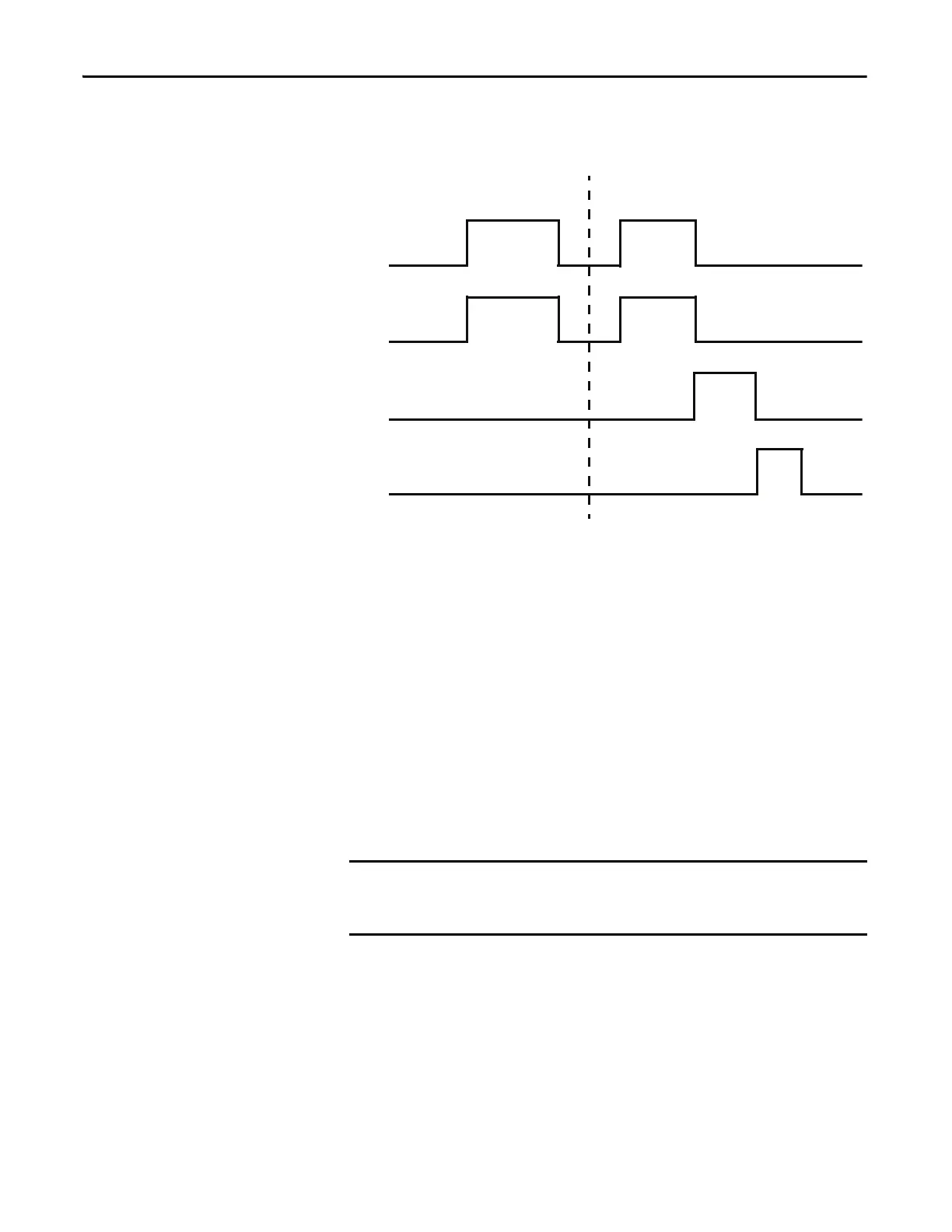

Figure 84 - Non-reversing Starter (Local I/O) – Two-wire Control Timing Diagram
Non-reversing Starter (Local I/O) – Two-wire Control with Feedback
The E300 relay’s Operating Mode Non-Reversing Starter (Local I/O) – Two Wire
Control with Feedback (Parameter 195 = 37) uses the state of Input 1 to control
Output Relay 0, which controls the contactor coil. Input 0 is a maintained value,
so the non-reversing starter remains energized when Input 1 is active.
The auxiliary contact from the non-reversing starter’s contactor is wired into
Input 0. If a feedback signal is not received before the time identified in Feedback
Timeout (Parameter 213), then the E300 issues a trip or warning event.
The reset button of the E300 Operator Station is enabled for this operating
mode.
Rules
1. Available for Control Module firmware v5.000 and higher.
2. Output Pt00 Assignment (Parameters 202) must be set to Control Relay.
3. Overload Trip must be enabled in TripEnableI (Parameter 183).
4. Feedback Timeout Trip in TripEnableC (Parameter 186) or Feedback
Time
out Warning in WarningEnableC (Parameter 192) must be enabled.
Trip Event
Relay 0
Trip Status
Trip Reset
Run/Stop
IMPORTANT
The Non-reversing Starter (Local I/O) – Two-wire Control with Feedback
operating mode uses the state of Input 1 to control the starter. When the E300
powers up, the starter energizes if Input 1 is active.
