Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 177
Operating Modes Chapter 5
5. Network Fault Override (Parameter 347) must be enabled.
Wiring Diagram
The E300 relay’s Output Relay 0 is wired as a control relay in which the relay is
controlled by the state of Input 0 and opens when a trip event occurs. Figure 82
is
a wiring diagram of a non-reversing starter with Output Relay 0 configured as a
control relay.

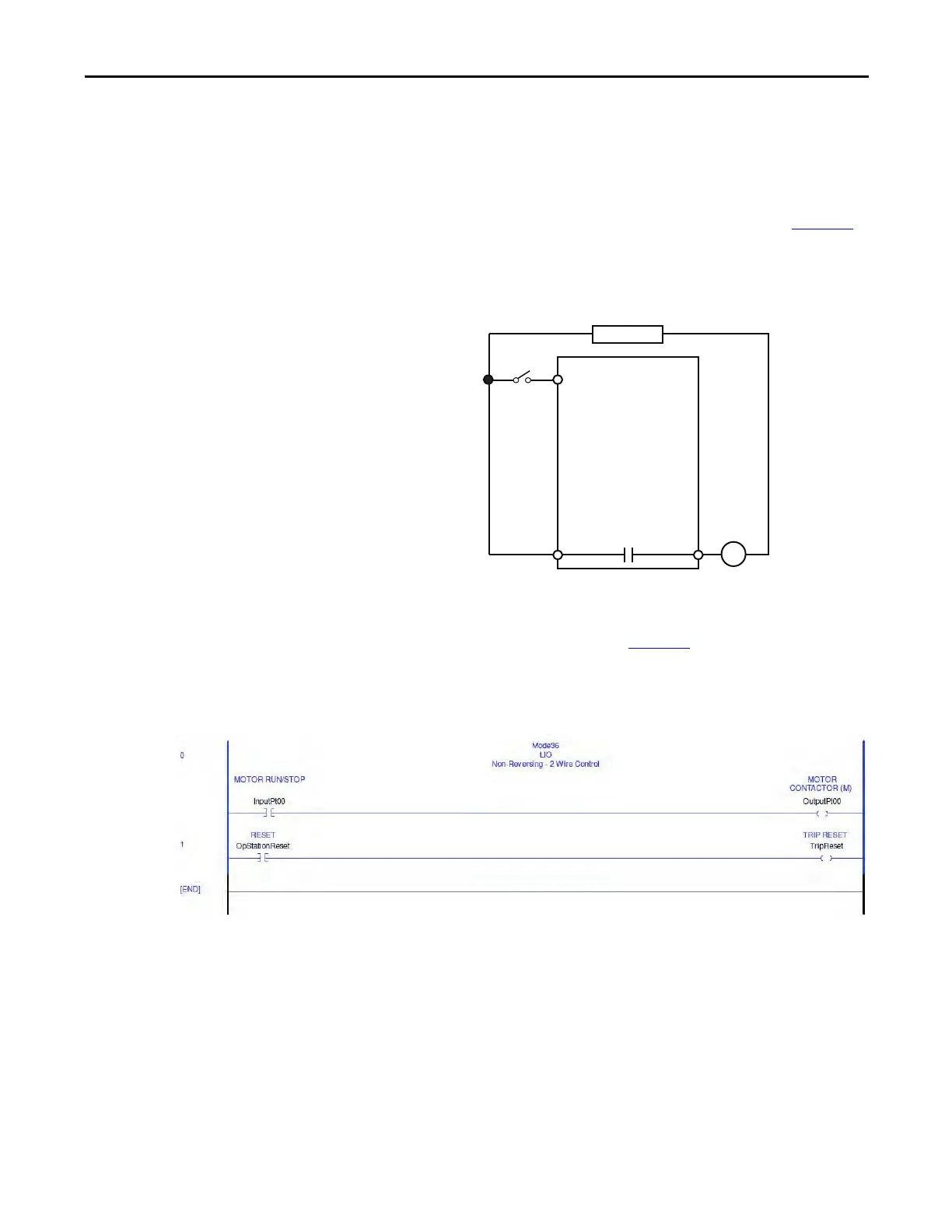

Figure 82 - Non-reversing Starter (Local I/O) – Two-wire Control Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 83 is automatically loaded and
enabled in the E300 on power-up or when Operating Mode (Parameter 195) is
set to a value of 36.
Figure 83 - Non-reversing Starter (Local I/O) – Two-wire Control DeviceLogix Program
R03 R04
Relay 0
Run
E300
IN 0
Control Power
Run/Stop

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
