296 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 5 Operating Modes

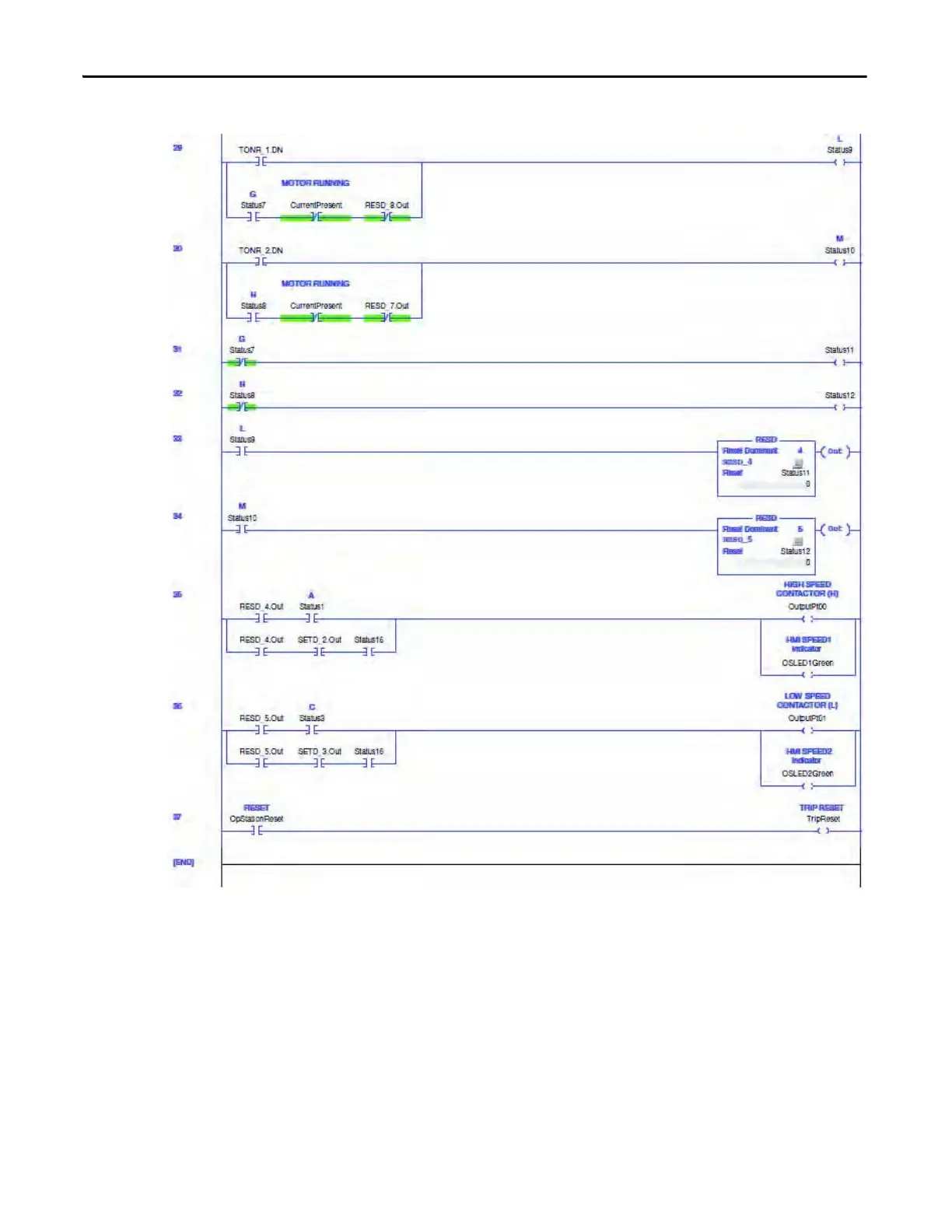

Figure 199 - Two-speed Starter (Network & Operator Station) DeviceLogix Program, Part D
Two-speed Starter (Network & Local I/O) – Two-wire Control
The E300 relay’s Operating Mode Two Speed Starter (Network& Operator
Station) (Parameter 195 = 24) in Remote control mode uses network tags
LogicDefinedPt00Data in Output Assembly 144 to control Relay 0, which
controls the high-speed contactor coil, and LogicDefinedPt01Data in Output
Assembly 144 to control Relay 1, which controls the low-speed contactor coil.
Both LogicDefinedPt00Data and LogicDefinedPt01Data are maintained values,
so the two-speed starter remains energized when LogicDefinedPt00Data or
LogicDefinedPt01Data has a value of 1. You can program the appropriate state of
